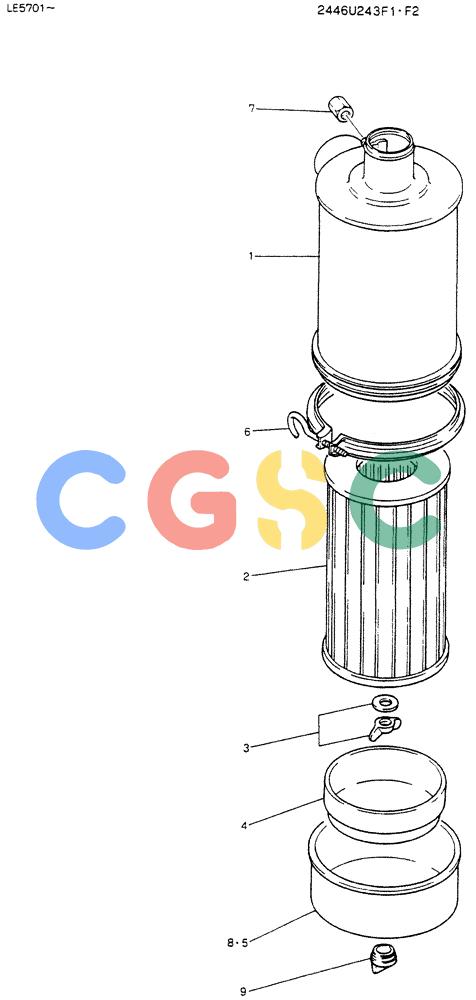

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (04-006) - AIR CLEANER ASSY, P/N 2446U243F1, F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2446U243F1 | [1] | CLEANER ASSY,AIR,LE5701-5856 | |
| . . | 2446U243F2 | [1] | CLEANER ASSY.AIR,LE5857- | |
| 1. | 2446U243S1 | [1] | | |
| 2. | 2446U240S2 | [1] | ELEMENT ASSY | ELEMENT ASSY |
| 3. | 2446U226S4 | [1] | WING NUT | KOB |
| 4. | 2446U196S4 | [1] | COVER | KOB |
| 5. | 2446U240SS | [1] | CUP ASSY,LE5701-5856 | |
| 6. | 2446U196S6 | [1] | CLAMP | KOBCLAMP ASSY |
| 7. | 2446U226S8 | [1] | CAP,NIPPLE | |
| 8. | 2446U240S9 | [1] | CAP | CAP |
| 9. | 2446U196S8 | [1] | VALVE | KOB |
