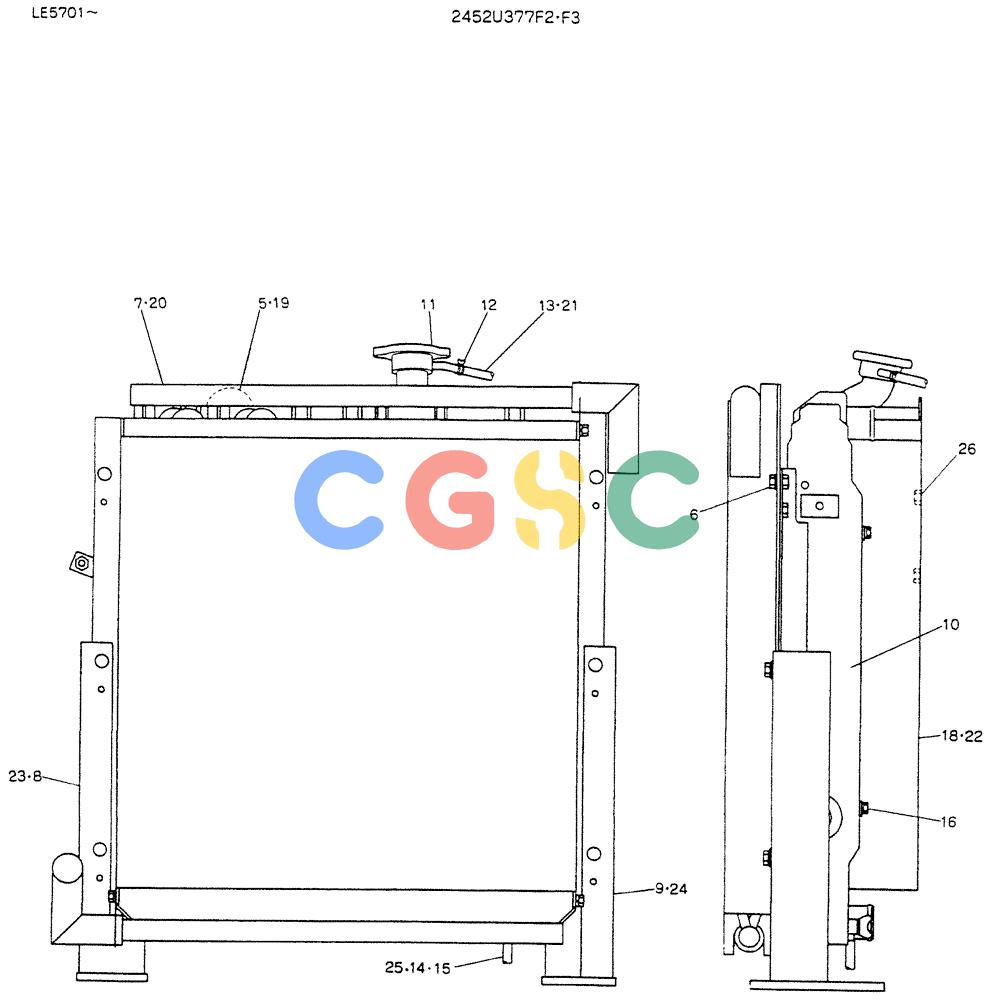

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (04-007) - RADIATOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
188 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2452U377F2 | [1] | RADIATOR ASSY,LE5701-5910 | |
| . . | 2452U377F3 | [1] | RADIATOR ASSY,LE5911- | |
| 5. | 2452U377S5 | [1] | RADIATOR ASSV,LE5701-5910 | |
| 6. | 2452U377S6 | [6] | CAP | KOBScrew -- M06x1.0x112mm, LE5701-5910 |
| . . | 2452U377S6 | [9] | CAP | KOBScrew -- M06x1.0x112mm, LE5911- |
| 7. | 2452U377S7 | [1] | OIL COOLER ASSY,LE5701-5910 | |
| 8. | 2452U377S8 | [1] | SUPPORT,LE5701-5910 | |
| 9. | 2452U377S9 | [1] | SUPPORT,LE5701-5910 | |
| 10. | 2452U377S10 | [1] | CORE | KOB |
| 11. | 2452U377S11 | [1] | PROTECTION CAP | KOB |
| 12. | 2452U221S113 | [2] | CLIP | KOB Superseded by part number: 2452U267S8 |
| 13. | 2452U221S112 | [1] | HOSE | KOBPIPING,OVER FLOW,LE5701-5910 |
| 14. | 2452U255S7 | [1] | COCK | KOB Superseded by part number: 2452U221S18 |
| 15. | 2452U221S19 | [1] | PIPING,DRAIN | |
| 16. | 2452U377S16 | [4] | BOLT ASSY | |
| 18. | 2452U377S18 | [1] | SHROUD | KOBLE5701-5910 |
| 19. | 2452U377S19 | [1] | RADIATOR ASSY,LE5911- | |
| 20. | 2452U377S20 | [1] | OIL COOLER | OIL COOLER |
| 21. | 2452U377S21 | [1] | PIPING,OVER FLOW,LE5911- | |
| 22. | 2452U377S22 | [1] | SHROUD,LE5911- | |
| 23. | 2452U377S23 | [1] | SUPPORT,LE5911- | |
| 24. | 2452U377S24 | [1] | SUPPORT,LE5911- | |
| 25. | 2452U377S25 | [1] | CLIP | KOBLE5911- |
| 26. | 2452U377S26 | [1] | NET,WIRE,LE5911- | |
