神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (04-015) - GAUGE CLUSTER, P/N 2479U337F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
602 次

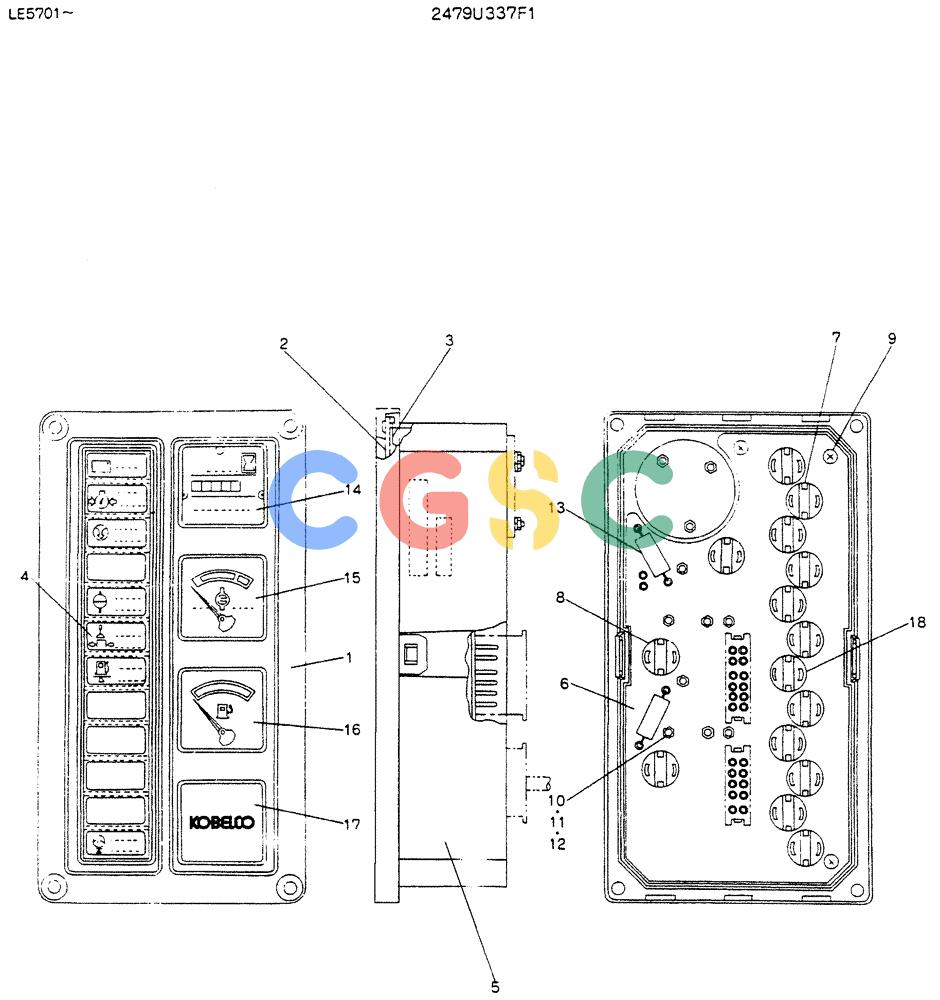

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2479U337F1 | [1] | GAUGE | KOBCLUSTER |
| 1. | 2479U437S1 | [1] | COVER | KOB |
| 2. | 2479U437S2 | [1] | COVER | KOB |
| 3. | 2479U437S3 | [1] | PLATE | KOB |
| 4. | 2479U437S4 | [1] | LENS PLATE | LENS PLATE |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONBOARD,CIRCUIT |
| 7. | 2479U437S7 | [11] | BULB | KOB |
| 8. | 2479U437S8 | [3] | BULB | KOB |
| 9. | 2479U437S9 | [3] | SCREW,TAPPING | |
| 10. | 2479U437S10 | [11] | WASHER | |
| 11. | 2479U437S11 | [11] | LOCK WASHER | |
| 12. | 2479U437S12 | [11] | NUT | |
| 13. | NSS | [2] | NOT SOLD SEPARAT | CONRESISTER |
| 14. | 2479U437S14 | [1] | HOURMETER | KOB |
| 15. | 2479U437S15 | [1] | SWITCH | KOB |
| 16. | 2479U437S16 | [1] | FUEL GAUGE | KOB |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE-MASK |
| 18. | 2479U437S18 | [1] | BULB | KOB |
