神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (05-008) - INSTAL, CRAWLER TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
868 次

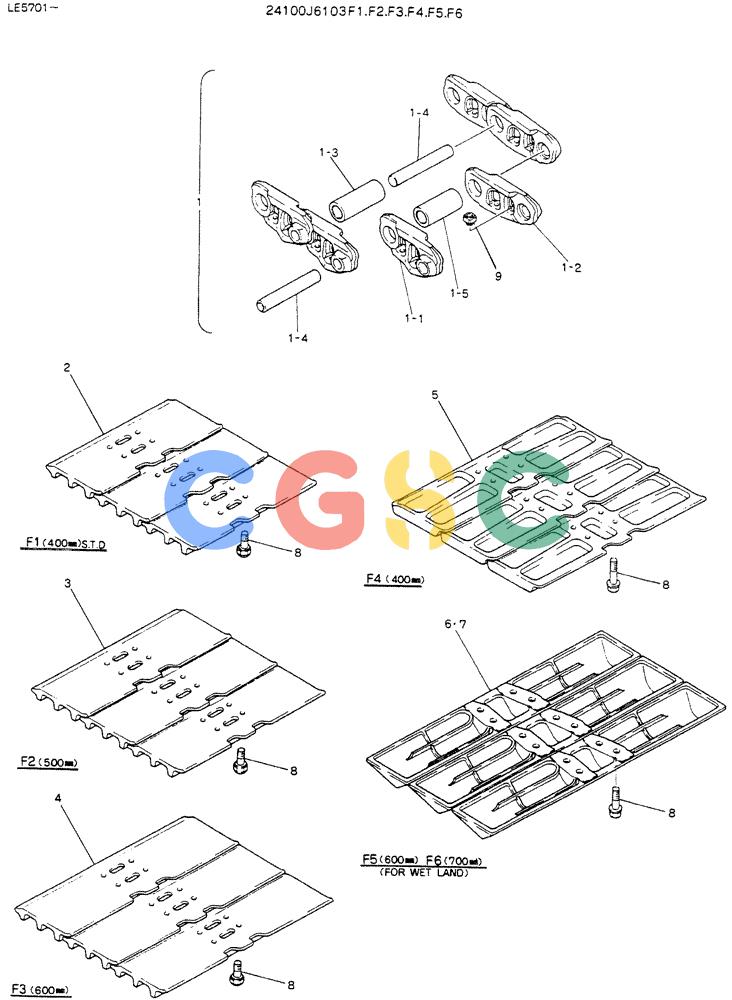

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6103F1 | [1] | INSTAL,CRAWLER TRACK | |
| 1. | 24100J6327F1 | [2] | CHAIN LINK | KOB |
| 1-1. | 2406J162D1 | [43] | LINK | KOB |
| 1-2. | 2406J162D2 | [43] | LINK | KOB |
| 1-3. | 2405P485 | [43] | BUSHING | KOB |
| 1-4. | 2419P1703 | [42] | PIN | KOB |
| 1-5. | 2419P1704 | [1] | PIN | KOB |
| 2. | 2424N107D1 | [86] | TRACK SHOE | KOB |
| 8. | 2420T3916 | [344] | SCREW | KOB |
| 9. | 2420T3917 | [344] | NUT | KOB |
| . . | 24100J6103F2 | [1] | INSTAL,CRAWLER TRACK,CONSISTS OF ITEM 4,8 & 9 | |
| 3. | 2424N102D2 | [86] | TRACK SHOE | KOB(500mm) |
| . . | 24100J6103F3 | [1] | INSTAL,CRAWLER TRACK,CONSISTS OF ITEM 1,8 & 9 | |
| 4. | 2424N102D3 | [86] | TRACK SHOE | KOB(600mm) |
| . . | 24100J6103F4 | [1] | INSTAL,CRAWLER TRACK,CONSISTS OF ITEM 1,8 & 9 | |
| 5. | 2424J104 | [86] | SHOE(400mm) | |
| . . | 24100J6103F5 | [1] | INSTAL,CRAWLER TRACK,CONSISTS OF ITEM 1,8 & 9 | |
| 6. | 2424J105C1 | [86] | SHOE(600mm) | |
| . . | 24100J6103F6 | [1] | INSTAL,CRAWLER TRACK,CONSISTS OF ITEM 1,8 & 9 | |
| 7. | 2424J136 | [86] | SHOE (400mm) | SHOE (400mm) |
