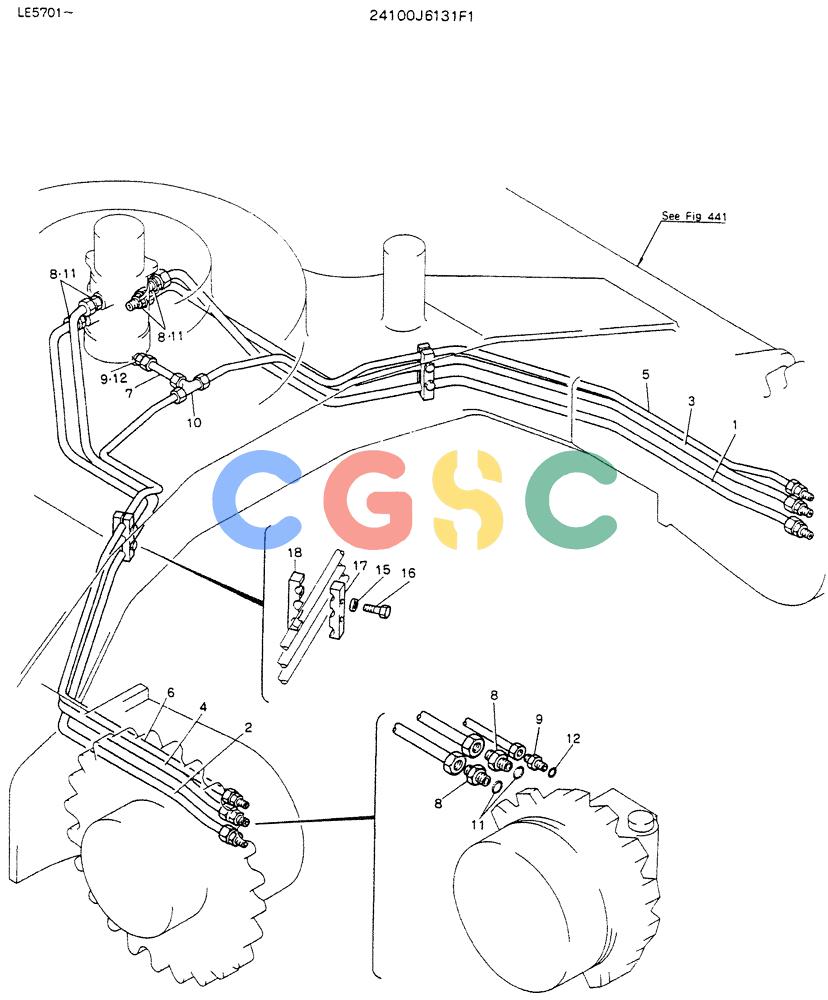

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (05-007) - HYDR LINES, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
239 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6131F1 | [1] | HYDR LINES,LOW | |
| 1. | 2418N2274 | [1] | RIGID TUBE | KOB |
| 2. | 2418N2275 | [1] | RIGID TUBE | KOB |
| 3. | 2418N2276 | [1] | RIGID TUBE | KOB |
| 4. | 2418N2277 | [1] | RIGID TUBE | KOB |
| 5. | 2418N2278D1 | [1] | RIGID TUBE | KOB |
| 6. | 2418N2278D2 | [1] | RIGID TUBE | KOB |
| 7. | 2418T12466 | [1] | TUBE | KOB |
| 8. | ZA23F18008 | [8] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| 9. | ZA23F15006 | [3] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| 10. | ZA53B15000 | [1] | TEE | KOB |
| 11. | ZD12P01800 | [8] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 12. | ZD12P01400 | [3] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 15. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 16. | ZS13C10040 | [4] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 17. | 2432T2317 | [2] | CLAMP | |
| 18. | 2432T2318 | [2] | CLAMP | KOB |
