神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (07-007) - ALARM, OVER LOAD, P/N 24100N4014F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
995 次

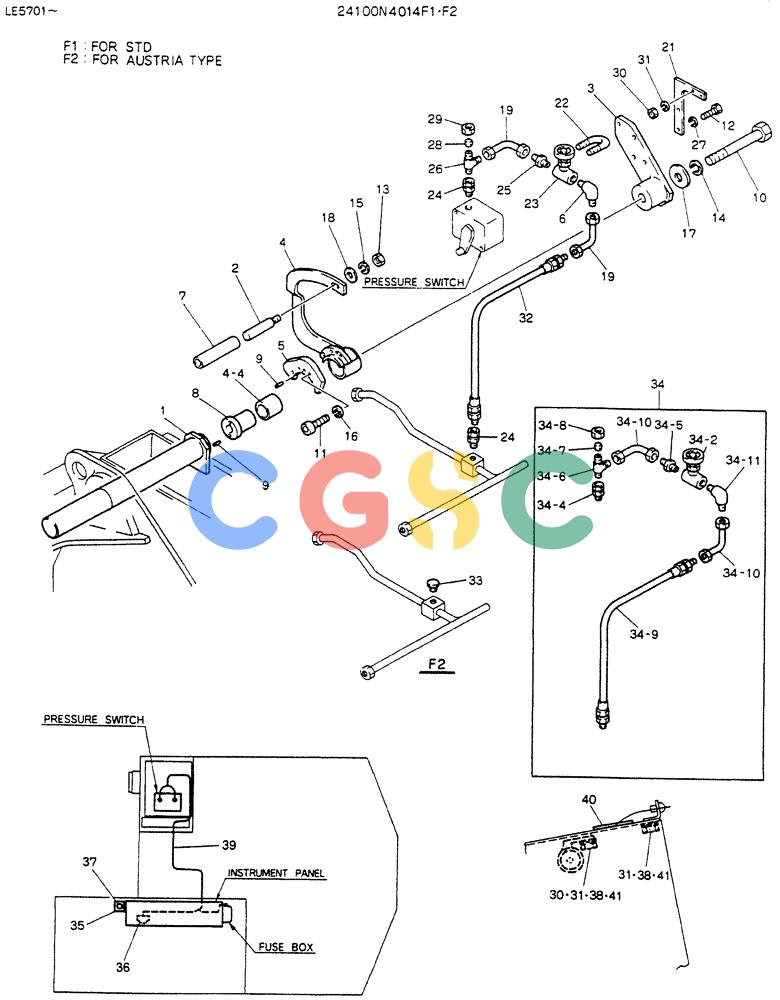

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4014F1 | [1] | ALARM,OVER LOAD | |
| 1. | 2419T4693 | [1] | PIN | |
| 2. | 2419T3549 | [1] | PIN | |
| 3. | 2416T13348 | [1] | BRACKET | |
| 4. | 2416P8724F1 | [1] | BRACKET | |
| 4-4. | 2405T990 | [1] | BUSHING | |
| 5. | 2418N2511 | [1] | PLATE,CAM | |
| 6. | ZF33E12004 | [1] | ELBOW | |
| 7. | 2418T17510 | [1] | PIPE | |
| 8. | 2416T13351 | [1] | BOSS | |
| 9. | ZP26D06016 | [3] | PIN | KOBSpring |
| 10. | ZS13C24180 | [1] | CAP | KOB |
| 11. | ZS23C08025 | [3] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 12. | ZS13C08025 | [2] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 13. | ZN13C12010 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 14. | ZW22X24000 | [1] | WASHER | KOB |
| 15. | ZW22X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 16. | ZW22K08000 | [3] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 17. | 2418T10352 | [1] | PLATE | |
| 18. | ZW11X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 19. | 2418T10349 | [2] | TUBE | |
| 21. | 2418T17509 | [1] | PLATE | |
| 22. | 2420T2277D3 | [1] | U-BOLT | |
| 23. | 24368620F1 | [1] | VALVE,STOP | |
| 24. | ZF23G12004 | [2] | CONNECTOR | CONNECTOR |
| 25. | ZF23E12004 | [1] | CONNECTOR | |
| 26. | ZF53B12000 | [1] | TEE | KOB |
| 27. | ZW22X08000 | [2] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 28. | ZF83P12000 | [1] | PLUG | KOBPLUG |
| 29. | ZF93N12000 | [1] | NUT | KOBNUT |
| 30. | ZN18C06005 | [3] | NUT | KOBM06x1.0mm |
| 31. | ZW26X06000 | [5] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 32. | ZX58N06080 | [1] | HOSE | |
| 35. | 2416T13292 | [1] | BRACKET | |
| 36. | 2479Z444 | [1] | BUZZER | |
| 37. | R79P0060F1 | [1] | LAMP | KOB |
| 38. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 39. | 2479Z985 | [1] | HARNESS | |
| 40. | 2420Z1042 | [1] | GROMMET | KOB Superseded by part number: 2420Z1301 |
| 41. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
