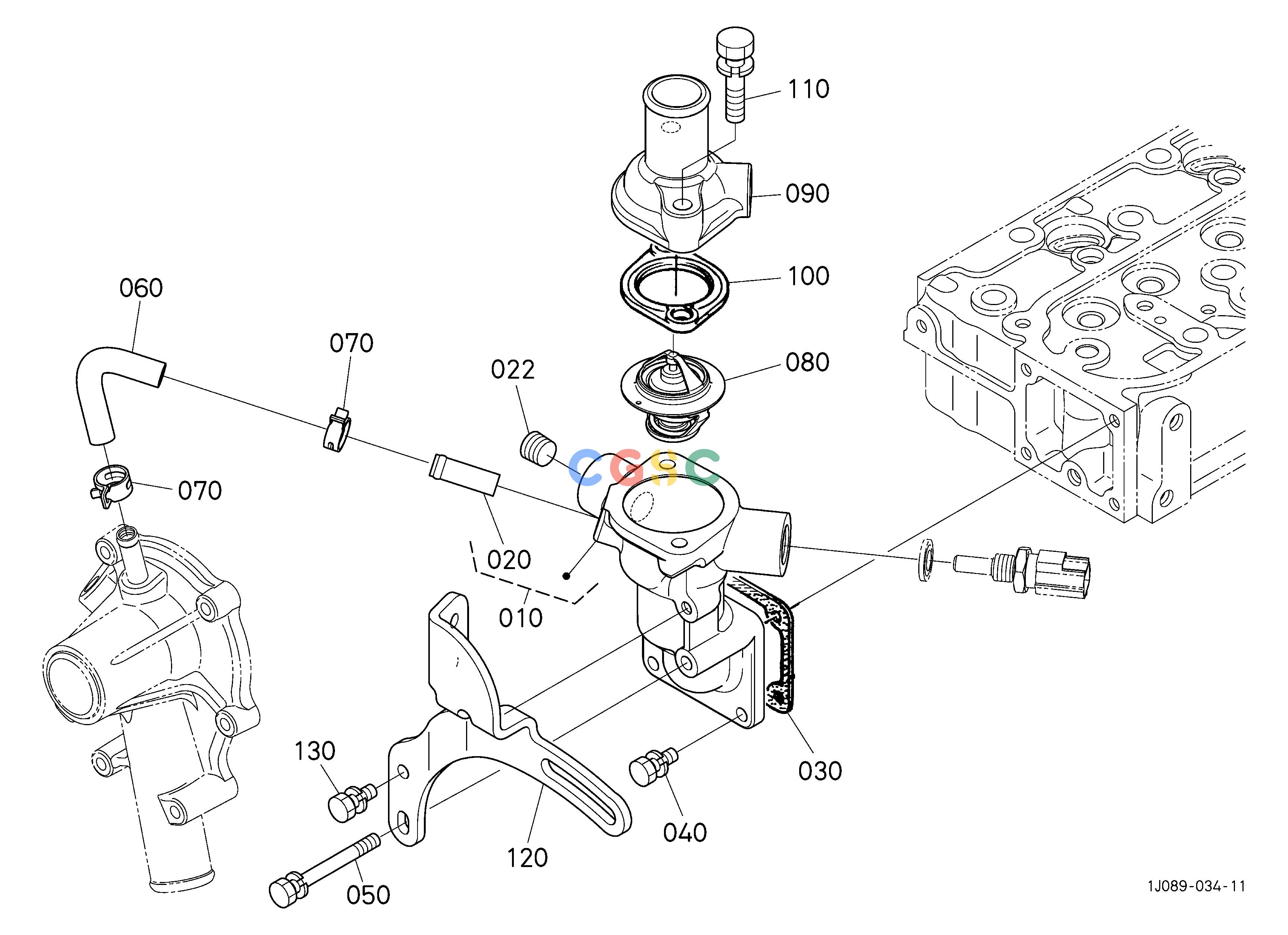

久保田零件查询560000 WATER FLANGE AND THERMOSTAT ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J08972700
|
[1] |
COMP FLANGE,WATER
|
0.5940(lbs); 0.270
|
| 020. |
1624173370
|
[1] |
PIPE,WATER RETURN
|
0.0154(lbs); 0.007
|
| 022. |
1A02196020
|
[1] |
PLUG
|
0.0440(lbs); 0.020
|
| 030. |
1626472920
|
[1] |
GASKET,WATER FLANGE
|
0.0022(lbs); 0.001
|
| 040. |
0102350616
|
[3] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 050. |
0102350655
|
[1] |
BOLT,SEMS
|
0.0264(lbs); 0.012
|
| 060. |
1624173350
|
[1] |
PIPE,WATER RETURN
|
0.0330(lbs); 0.015
|
| 070. |
1G68773362
|
[2] |
CLAMP,HOSE
|
0.0044(lbs); 0.002
|
| 080. |
1532173016
|
[1] |
ASSY THERMOSTAT
|
0.1540(lbs); 0.070
|
| 080. |
1G36273010
|
[1] |
ASSY THERMOSTAT
|
0.1760(lbs); 0.080
|
| 080. |
1G36273012
|
[1] |
ASSY THERMOSTAT
|
0.1760(lbs); 0.080
|
| 090. |
1621973260
|
[1] |
COVER(THERMOSTAT)
|
0.2178(lbs); 0.099
|
| 100. |
1622173270
|
[1] |
GASKET,THEMOSTAT
|
0.0022(lbs); 0.001
|
| 110. |
0112350835
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 120. |
1A40464420
|
[1] |
STAY(ALTERNATOR)
|
0.5280(lbs); 0.240
|
| 130. |
0102350616
|
[1] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
