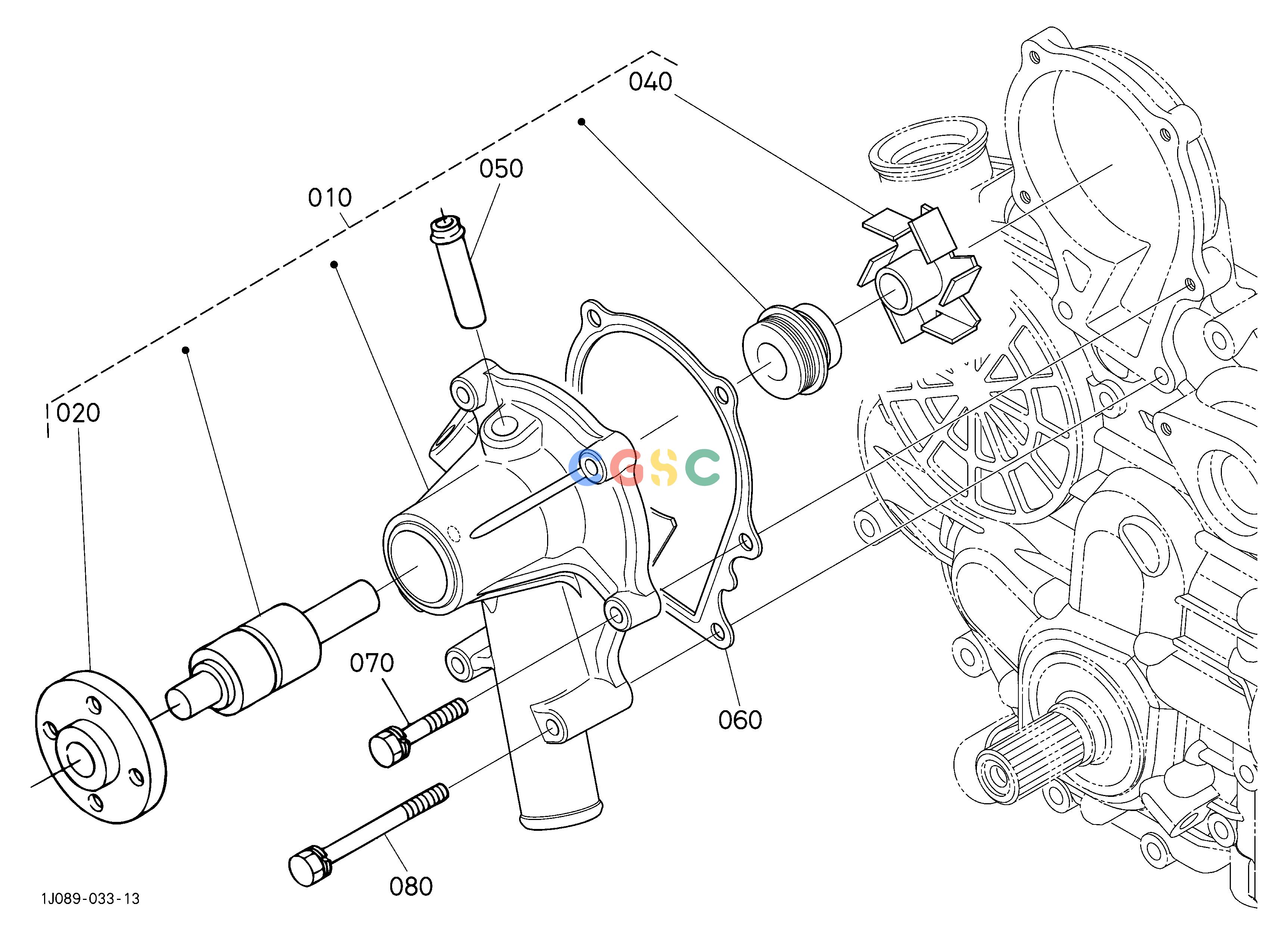

久保田零件查询561000 WATER PUMP ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
963 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1625173034
|
[1] |
PUMP,WATER,ASSY
|
1.7600(lbs); 0.800
|
| 010. |
1625173037
|
[1] |
ASSY PUMP,WATER
|
1.7600(lbs); 0.800
|
| 020. |
1625973520
|
[1] |
FLANGE,WATER PUMP
|
0.3300(lbs); 0.150
|
| 040. |
1625973512
|
[1] |
IMPELLER,WATER PUMP
|
0.1980(lbs); 0.090
|
| 050. |
1585273340
|
[1] |
PIPE,WATER RETURN
|
0.0440(lbs); 0.020
|
| 060. |
1623973430
|
[1] |
GASKET,WATER PUMP
|
0.0154(lbs); 0.007
|
| 070. |
0102350630
|
[4] |
BOLT,SEMS
|
0.0176(lbs); 0.008
|
| 080. |
0102350685
|
[2] |
BOLT,SEMS
|
0.0396(lbs); 0.018
|
