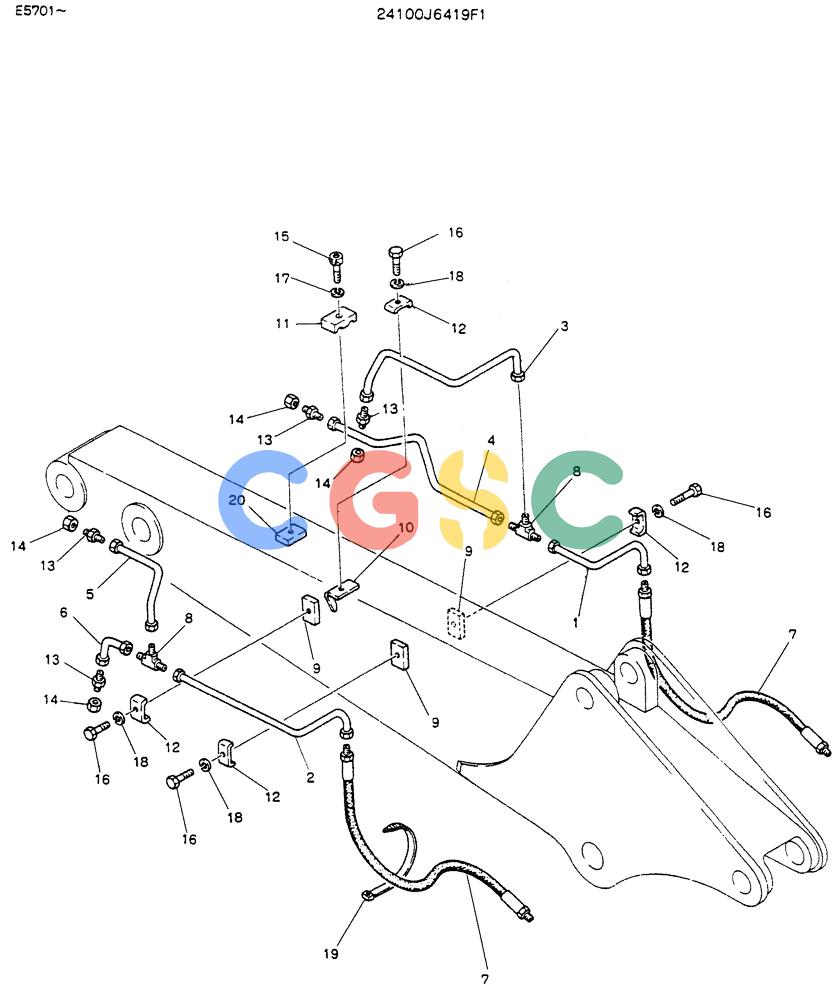

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (08-005) - HYDR LINES, EXTRA ARM 1.7M (5FT 7IN) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
835 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6419F1 | [1] | HYDR LINES,EXTRA ARM | |
| 1. | 2418T17542 | [1] | TUBE | |
| 2. | 2418T17545 | [1] | TUBE | |
| 3. | 2418T17543 | [1] | TUBE | |
| 4. | 2418T17546 | [1] | TUBE | |
| 5. | 2418T17544 | [1] | TUBE | |
| 6. | 2418T17S47 | [1] | TUBE | |
| 7. | ZX58N08090 | [2] | HOSE | KOB900mm Long (35-7/16 in) |
| 8. | ZA53B15000 | [2] | TEE | KOB |
| 9. | 2416T10838 | [3] | CONNECTING BLOCK | KOB |
| 10. | 2416T10990 | [1] | BRACKET | |
| 11. | 2432T1788 | [1] | CLAMP | |
| 12. | 2432T1773 | [4] | CLAMP | KOB |
| 13. | 2444Z2222 | [4] | HYD CONNECTOR | KOB |
| 14. | 2420T4384 | [4] | PLUG | KOB |
| 15. | ZS23C08025 | [1] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 16. | ZS13C08040 | [4] | SCREW | KOBM08x1.25x40mm Superseded by part number: ZS18C08040 |
| 17. | ZW22K08000 | [1] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 18. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 19. | 2432Z290 | [10] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 20. | 2416T10838D2 | [1] | BLOCK | KOBTAPPED |
