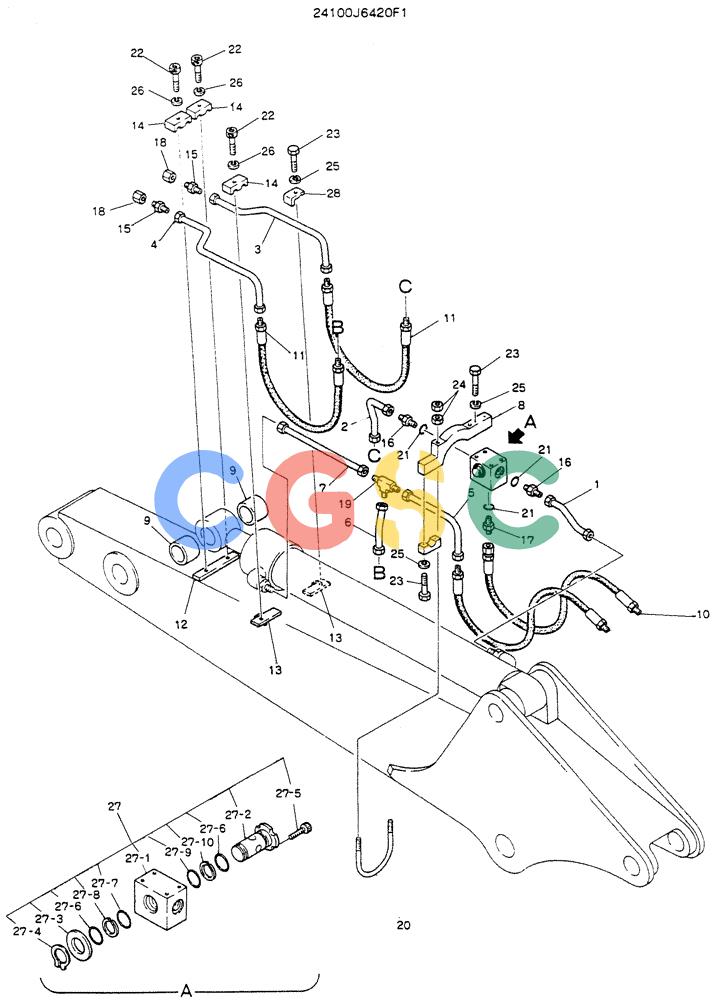

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (08-006) - HYDR LINES, ARM 1.7M (5FT 7IN) (CHANGE BACK-HOE/CLAMSHELL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
508 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6420F1 | [1] | INSTAL HYDR LINES,ARM | |
| 1. | 2418T17540 | [1] | TUBE | |
| 2. | 2418T17539 | [1] | TUBE | |
| 3. | 2418T17538D2 | [1] | TUBE | |
| 4. | 2418T17538D1 | [1] | TUBE | |
| 5. | 2418P11896D3 | [1] | TUBE | |
| 6. | 2418T17541 | [1] | TUBE | |
| 7. | 2418P12141D2 | [1] | TUBE | |
| 8. | 2416T10909 | [1] | PLATE | |
| 9. | 2418T10505 | [2] | LAB | |
| 10. | 2444R950D15 | [2] | | |
| 11. | 2444R950D12 | [2] | | |
| 12. | 2416T10908D2 | [1] | TAPPED | |
| 13. | 2416T10989 | [2] | BRACKET | |
| 14. | 2432T1787 | [3] | CLAMP | KOB |
| 15. | 2444Z2413 | [2] | CONNECTOR | |
| 16. | 2444Z2534 | [2] | CONNECTOR | |
| 17. | 2444Z2414D1 | [1] | CONNECTOR | |
| 18. | 2420T4384 | [2] | PLUG | KOB |
| 19. | ZA53B18000 | [1] | TEE | KOB |
| 20. | 2420T4385 | [1] | U-BOLT | |
| 21. | ZD12P02400 | [3] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 22. | ZS23C08025 | [3] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 23. | ZS13C08040 | [5] | SCREW | KOBM08x1.25x40mm Superseded by part number: ZS18C08040 |
| 24. | ZN13C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 25. | ZW22X08000 | [5] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 26. | ZW22K08000 | [3] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 27. | 24100P1005F1 | [1] | VALVE | KOBVALVE,SELECTOR Superseded by part number: 24100P1005F3 |
| 27-1. | 2436P229 | [1] | VALVE BODY | KOB |
| 27-2. | 2436T303 | [1] | VALVE | KOB |
| 27-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 27-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 27-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 27-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 27-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 27-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 27-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 27-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 28. | ZC26X18011 | [1] | CLAMP | KOB Superseded by part number: ZC26M18011 |
