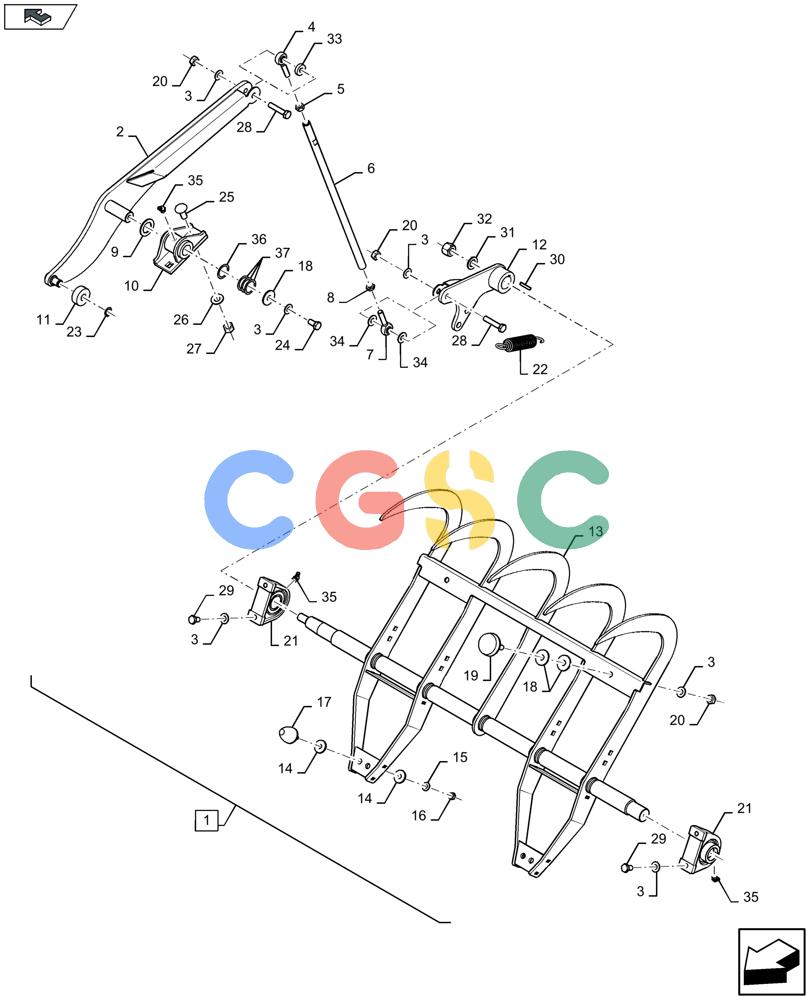

| 1. |
47829367
|
[1] |
SERVICE KIT
|
ZED
Incl 2 - 37
|
| 2. |
47843070
|
[1] |
LEVER
|
ZED
|
| 3. |
140045
|
[9] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 4. |
47850323
|
[1] |
COUPLING
|
ZED
|
| 5. |
47470565
|
[1] |
NUT
|
ZED
|
| 6. |
47850381
|
[1] |
ROD
|
ZED
|
| 7. |
47850321
|
[1] |
COUPLING
|
ZED
|
| 8. |
84807411
|
[1] |
THIN NUT,Thin, M10 x 1.5, Cl 04
|
ZED
Superseded by part number: 57039
|
| 9. |
84817403
|
[1] |
WASHER,25.5mm ID x 40mm OD x 2.5mm Thk
|
ZED
|
| 10. |
47855402
|
[1] |
HINGE
|
ZED
|
| 11. |
84019187
|
[1] |
ROLLER BEARING,15mm ID x 40mm OD x 15.9mm W
|
ZED
|
| 12. |
47843058
|
[1] |
LEVER
|
ZED
|
| 13. |
47843080
|
[1] |
HOOK
|
ZED
|
| 14. |
140041
|
[4] |
WASHER,M8 x 28mm OD x 3mm Thk
|
ZED
Superseded by part number: 9826296
|
| 15. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 16. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 17. |
9839261
|
[2] |
RUBBER BLOCK
|
ZED
|
| 18. |
140042
|
[5] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 19. |
84440416
|
[2] |
INSULATOR BLOCK
|
ZED
|
| 20. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 21. |
47907537
|
[2] |
BALL BEARING
|
ZED
|
| 22. |
9839275
|
[2] |
SPRING
|
ZED
|
| 23. |
301615
|
[1] |
SNAP RING,M15, Ext
|
NNA
Superseded by part number: NNA301615
|
| 24. |
43138
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 25. |
120044
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 26. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 27. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 28. |
120069
|
[2] |
BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8
|
NH
|
| 29. |
300383
|
[4] |
BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd
|
NH
|
| 30. |
87349227
|
[1] |
KEY,5mm x 5mm x 30mm
|
GI
|
| 31. |
10520201
|
[1] |
WASHER,16.4mm ID x 28mm OD x 3mm Thk
|
TTF
Superseded by part number: 10520204
|
| 32. |
12574911
|
[1] |
NUT,M16 x 1.5, Cl 8
|
TTF
Superseded by part number: 12574921
|
| 33. |
748797
|
[1] |
WASHER,10.5mm ID x 25mm OD x 7mm L
|
ZED
|
| 34. |
378244
|
[2] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 35. |
280477
|
[3] |
LUBE NIPPLE,45º, 1/8" NPT x .78" lg, Drive
|
GI
Superseded by part number: 80717
|
| 36. |
84475774
|
[1] |
SHIM
|
ZED
|
| 37. |
385188
|
[3] |
SHIM,26mm ID x 34mm OD x 0.5mm Thk
|
PA
|
| . . |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
|
