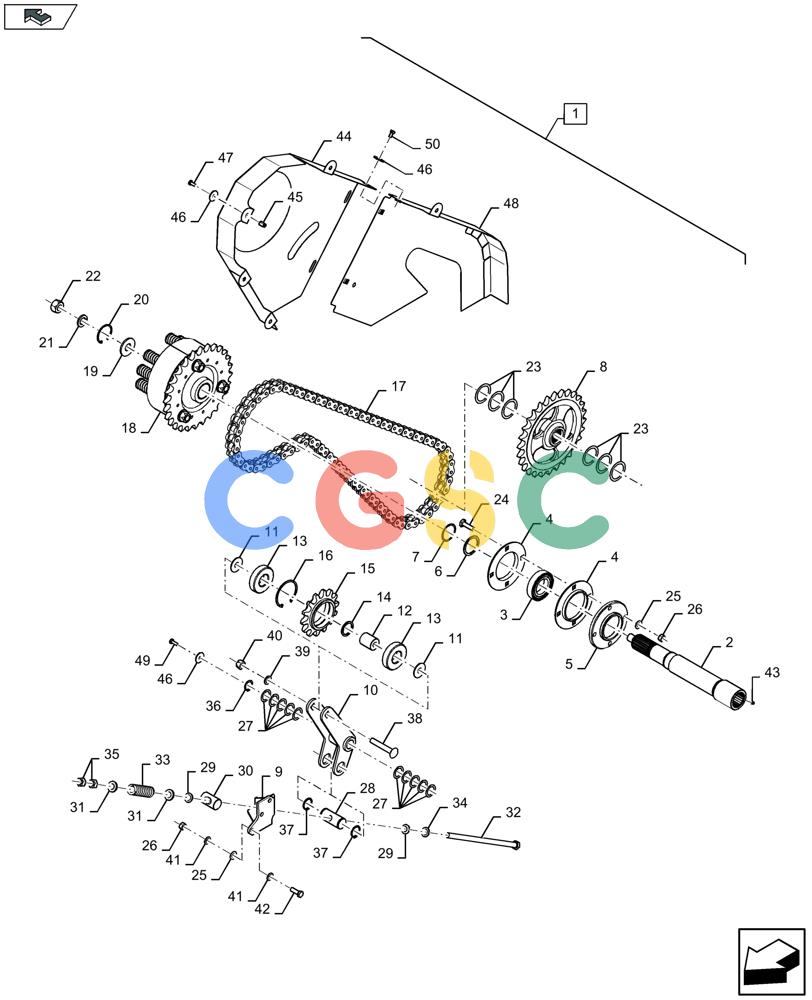

| 1. |
48095695
|
[1] |
Incl 2 - 50
|
SERVICE KIT
|
| 2. |
47622997
|
[1] |
DRIVE SHAFT
|
ZED
|
| 3. |
47622620
|
[1] |
BALL BEARING
|
ZED
|
| 4. |
853175
|
[2] |
FLANGE
|
ZED
Superseded by part number: 76450
|
| 5. |
47621447
|
[1] |
HUB
|
ZED
|
| 6. |
47607865
|
[1] |
RING
|
ZED
|
| 7. |
47622597
|
[1] |
SNAP RING
|
ZED
|
| 8. |
47618929
|
[1] |
SPROCKET
|
ZED
|
| 9. |
47619009
|
[1] |
SUPPORT
|
ZED
|
| 10. |
47958467
|
[1] |
TENSIONER
|
ZED
|
| 11. |
6100024
|
[2] |
WASHER,17mm ID x 50mm OD x 3mm Thk
|
BER
|
| 12. |
84039373
|
[1] |
BUSHING
|
ZED
|
| 13. |
210049
|
[2] |
BALL BEARING,40mm ID x 90mm OD x 23mm W
|
NH
|
| 14. |
84039374
|
[1] |
WASHER
|
ZED
|
| 15. |
84039375
|
[1] |
DRIVEN SPROCKET
|
ZED
|
| 16. |
370013
|
[1] |
SNAP RING,M90 x 3mm Thk, Internal
|
NH
|
| 17. |
84320124
|
[1] |
CHAIN,Roller, 86 Links x 31.75mm = 2730.5mm, #100
|
ZED
|
| 18. |
47607495
|
[1] |
SLIP CLUTCH
|
ZED
|
| 19. |
47624378
|
[1] |
RING
|
ZED
|
| 20. |
370012
|
[1] |
RING,M62, Internal
|
NH
|
| 21. |
86509829
|
[1] |
LOCK WASHER,24.5mm ID x 40mm OD x 5mm Thk
|
BHB
|
| 22. |
85700123
|
[1] |
NUT,M24, Cl 8
|
BER
Superseded by part number: 57139
|
| 23. |
47968513
|
[6] |
SHIM
|
ZED
|
| 24. |
334682
|
[4] |
CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd
|
ZED
|
| 25. |
140046
|
[7] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 26. |
9706685
|
[7] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 27. |
748212
|
[10] |
SHIM,30mm ID x 42mm OD x 1mm Thk
|
ZED
|
| 28. |
47619716
|
[1] |
PIN
|
ZED
|
| 29. |
219115
|
[2] |
WASHER,17mm ID x 30mm OD x 5.3mm Thk
|
BER
|
| 30. |
47959444
|
[1] |
PIN
|
ZED
|
| 31. |
86639326
|
[2] |
WASHER,17.3mm ID x 34.5mm OD x 5mm Thk
|
FAR
|
| 32. |
379281
|
[1] |
BOLT,Hex, M16 x 360mm, Cl 8.8
|
ZED
|
| 33. |
356822
|
[1] |
SPRING
|
ZED
|
| 34. |
140020
|
[1] |
WASHER,17.5mm ID x 30mm OD x 3mm Thk
|
NH
|
| 35. |
100020
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 36. |
370003
|
[1] |
SNAP RING,M30, External
|
NH
|
| 37. |
11068476
|
[2] |
SNAP RING,M36, Ext
|
MKT
|
| 38. |
322362
|
[1] |
CARRIAGE BOLT,M16 x 100mm, Cl 8.8
|
NH
Superseded by part number: 80322362
|
| 39. |
10520201
|
[1] |
WASHER,16.4mm ID x 28mm OD x 3mm Thk
|
TTF
Superseded by part number: 10520204
|
| 40. |
86000441
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 41. |
140223
|
[6] |
WASHER,M13 x 25mm OD x 2mm Thk
|
ZED
|
| 42. |
300389
|
[3] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 43. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 44. |
48028499
|
[1] |
COVER
|
ZED
|
| 45. |
87556072
|
[5] |
NUT,Flng, 11.8mm OD x 19.8mm L
|
ZED
|
| 46. |
12646204
|
[9] |
WASHER,8.15mm ID x 35mm OD x 3mm Thk
|
TTF
|
| 47. |
120104
|
[5] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 48. |
48028494
|
[1] |
COVER
|
ZED
|
| 49. |
43127
|
[1] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 50. |
120103
|
[3] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
