久保田零件查询575300 BLOWER PIPE ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
874 次

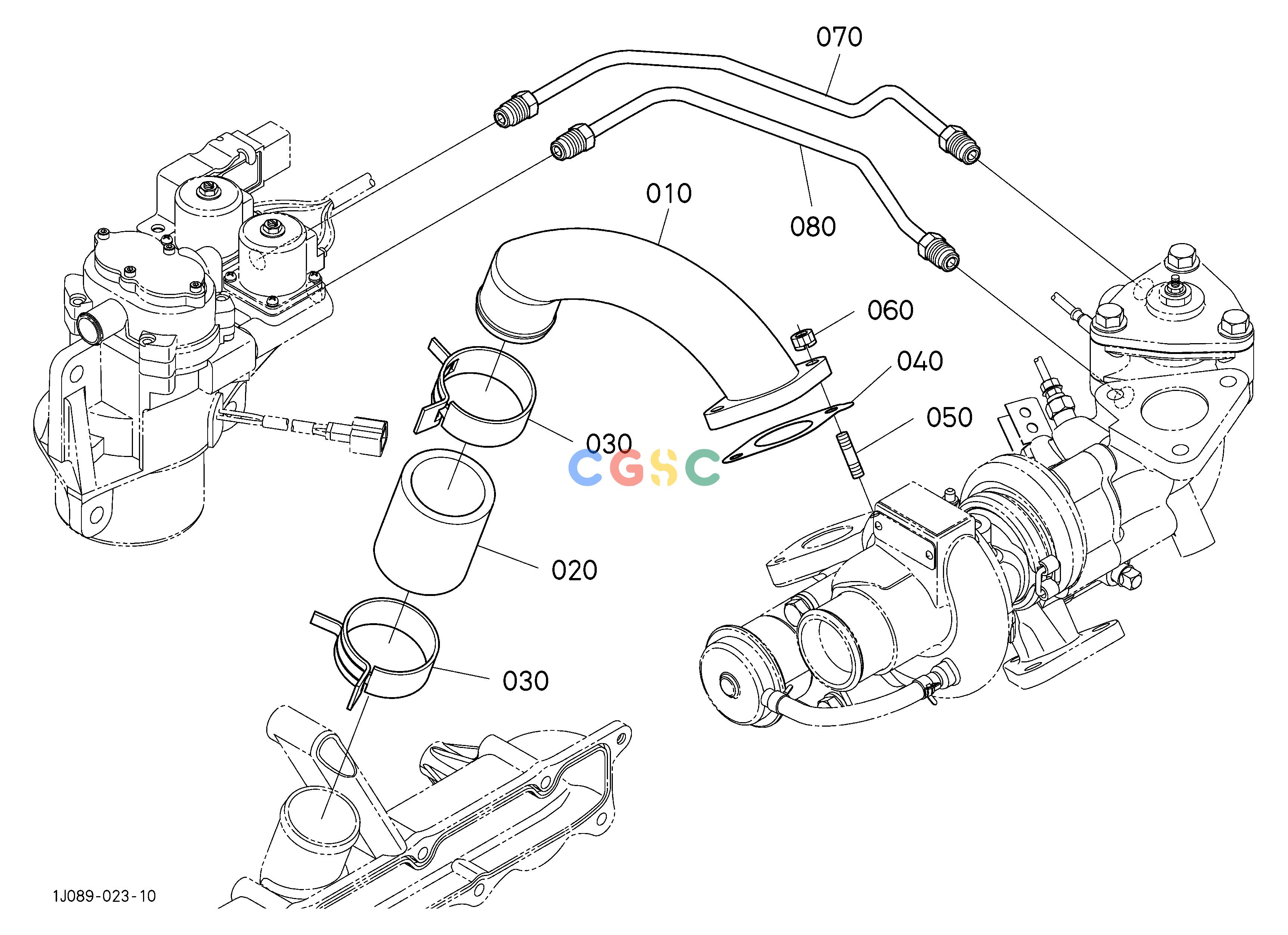

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J05011642
|
[1] |
PIPE(INLET)
|
0.3520(lbs); 0.160
|
| 020. |
1J05011620
|
[1] |
TUBE(INLET)
|
0.1320(lbs); 0.060
|
| 030. |
1624111720
|
[2] |
BAND,PIPE
|
0.0660(lbs); 0.030
|
| 040. |
1J05017120
|
[1] |
GASKET(D30,2 D7 P55)
|
0.0022(lbs); 0.001
|
| 050. |
0151850616
|
[2] |
BOLT,STUD
|
0.0110(lbs); 0.005
|
| 060. |
1226492020
|
[2] |
NUT,SPRING WASHER M
|
0.1100(lbs); 0.050
|
| 070. |
1J05018080
|
[1] |
PIPE(1-1,DOUBLE FLARE)
|
0.1188(lbs); 0.054
|
| 080. |
1J05018090
|
[1] |
PIPE(1-2,DOUBLE FLARE)
|
0.1056(lbs); 0.048
|
