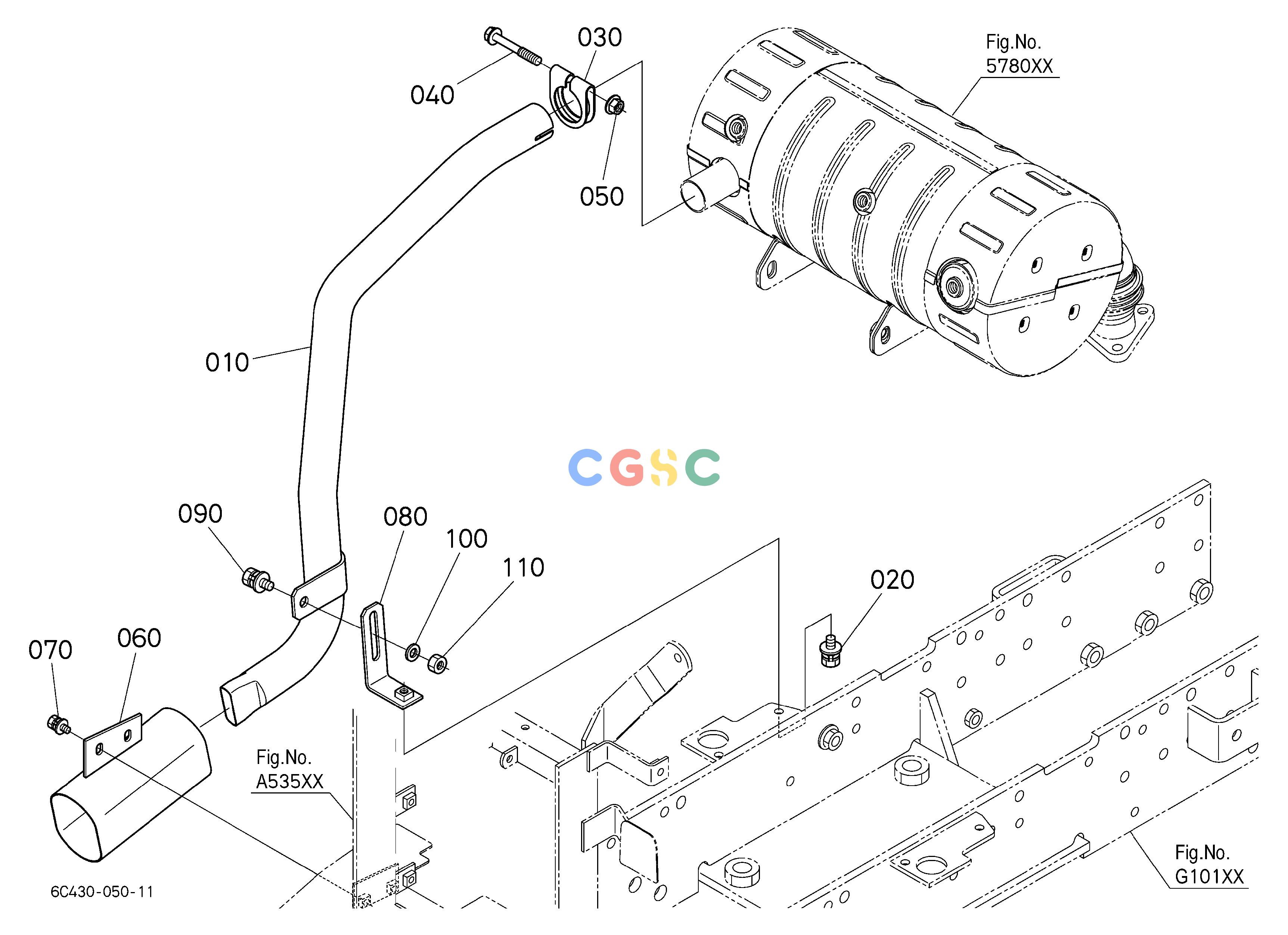

久保田零件查询575500 MUFFLER PIPE ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
765 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43058422
|
[1] |
PIPE(EXHAUST)
|
1.5840(lbs); 0.720
|
| 020. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 030. |
1522112433
|
[1] |
CLAMP,MUFFLER PIPE
|
0.1100(lbs); 0.050
|
| 040. |
0175450855
|
[1] |
BOLT,FLANGE
|
0.0440(lbs); 0.020
|
| 050. |
0212150080
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 060. |
6C41058430
|
[1] |
PIPE(MUFFLER,F)
|
0.7436(lbs); 0.338
|
| 070. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 080. |
6C43058412
|
[1] |
STAY(MUFFLER)
|
0.1298(lbs); 0.059
|
| 090. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 100. |
0401350080
|
[1] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 110. |
0211450080
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
