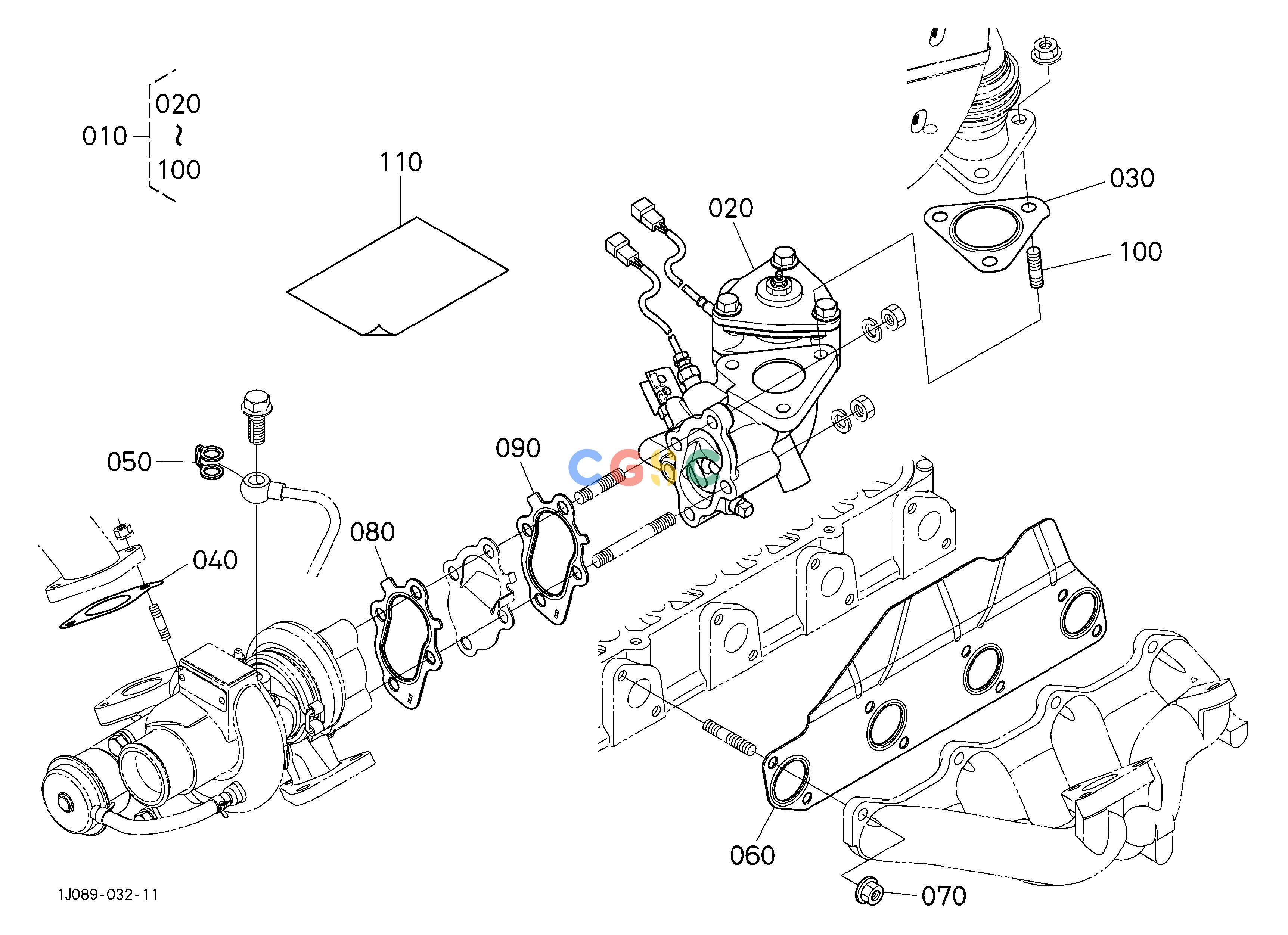

久保田零件查询596000 FLANGE KIT [OPTION] ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J08917902
|
[1] |
FLANGE,KIT
|
8.1400(lbs); 3.700
|
| 020. |
1J08918912
|
[1] |
FLANGE,ASSY(DOSER)
|
6.4680(lbs); 2.940
|
| 030. |
1J05012232
|
[1] |
GASKET(EX)
|
0.0088(lbs); 0.004
|
| 040. |
1J05017120
|
[1] |
GASKET(D30,2 D7 P55)
|
0.0022(lbs); 0.001
|
| 050. |
1G77796650
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 060. |
1J05012360
|
[1] |
GASKET(EX-MANIFOLD)
|
0.1100(lbs); 0.050
|
| 070. |
1627192010
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 080. |
1J05017110
|
[1] |
GASKET(TURBO,2)
|
0.0506(lbs); 0.023
|
| 090. |
1J05017130
|
[1] |
GASKET(TURBOCHARGER,3)
|
0.0550(lbs); 0.025
|
| 100. |
1J08991490
|
[3] |
STUD(M8 L18)
|
0.0198(lbs); 0.009
|
| 110. |
- |
[1] |
MANUAL,INST(DOSER,D26)
|
0.1166(lbs); 0.053
|
