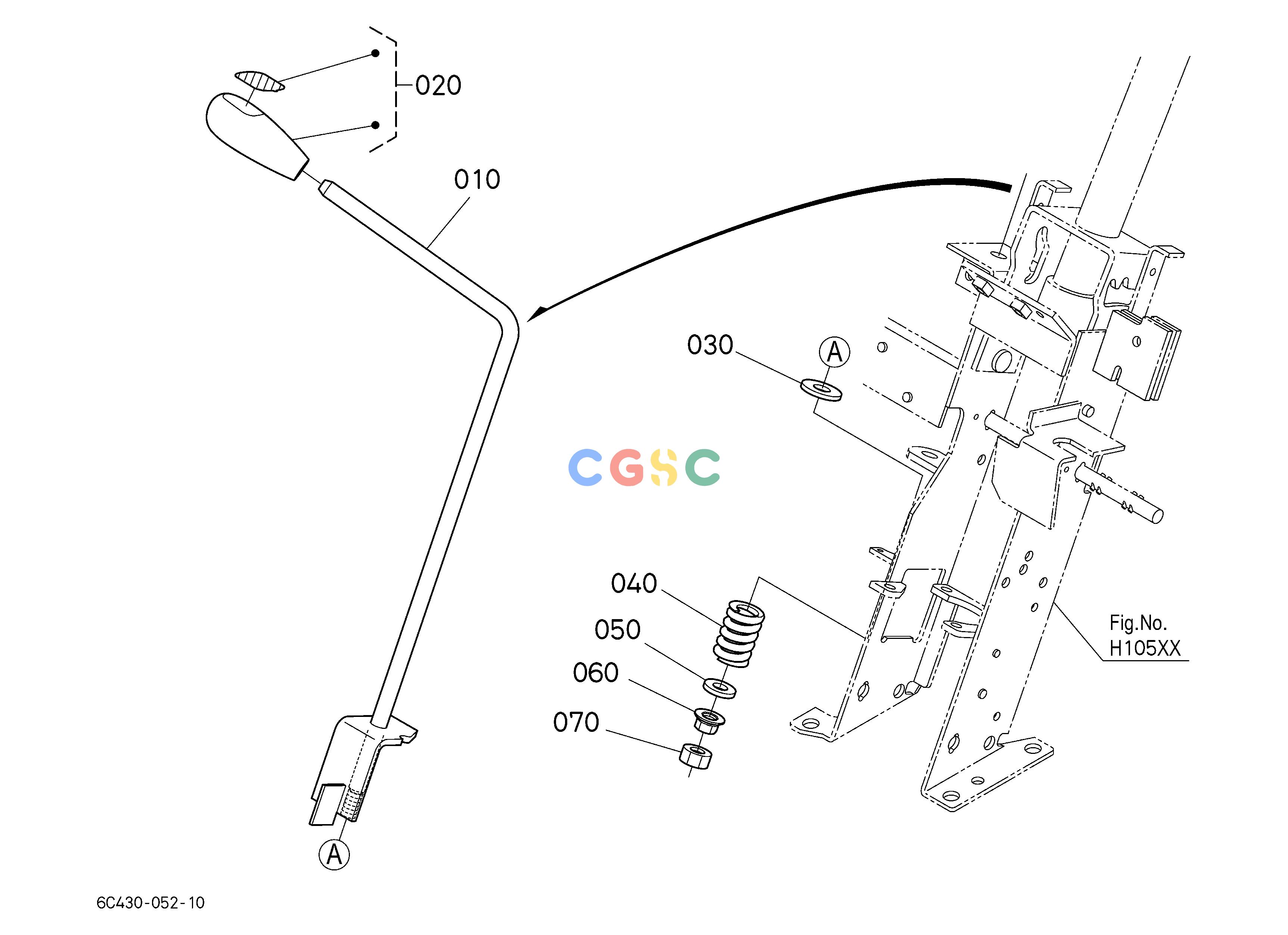

久保田零件查询A00102 HAND ACCELERATOR LEVER ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C41043310
|
[1] |
LEVER(ACCEL)
|
1.1220(lbs); 0.510
|
| 020. |
6A70043324
|
[1] |
GRIP
|
0.1100(lbs); 0.050
|
| 030. |
PA40146640
|
[1] |
PLATE,FRICTION
|
0.0066(lbs); 0.003
|
| 030. |
6C41038370
|
[1] |
PLATE(FRICTION)
|
0.0044(lbs); 0.002
|
| 040. |
3A15469240
|
[1] |
SPRING
|
0.1430(lbs); 0.065
|
| 050. |
3A27282250
|
[1] |
WASER,HYD.PUMP
|
0.0154(lbs); 0.007
|
| 060. |
0277150100
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 070. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
