神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-020) - FEED PUMP; INJECTION PUMP ( DIESEL KIKI) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
698 次

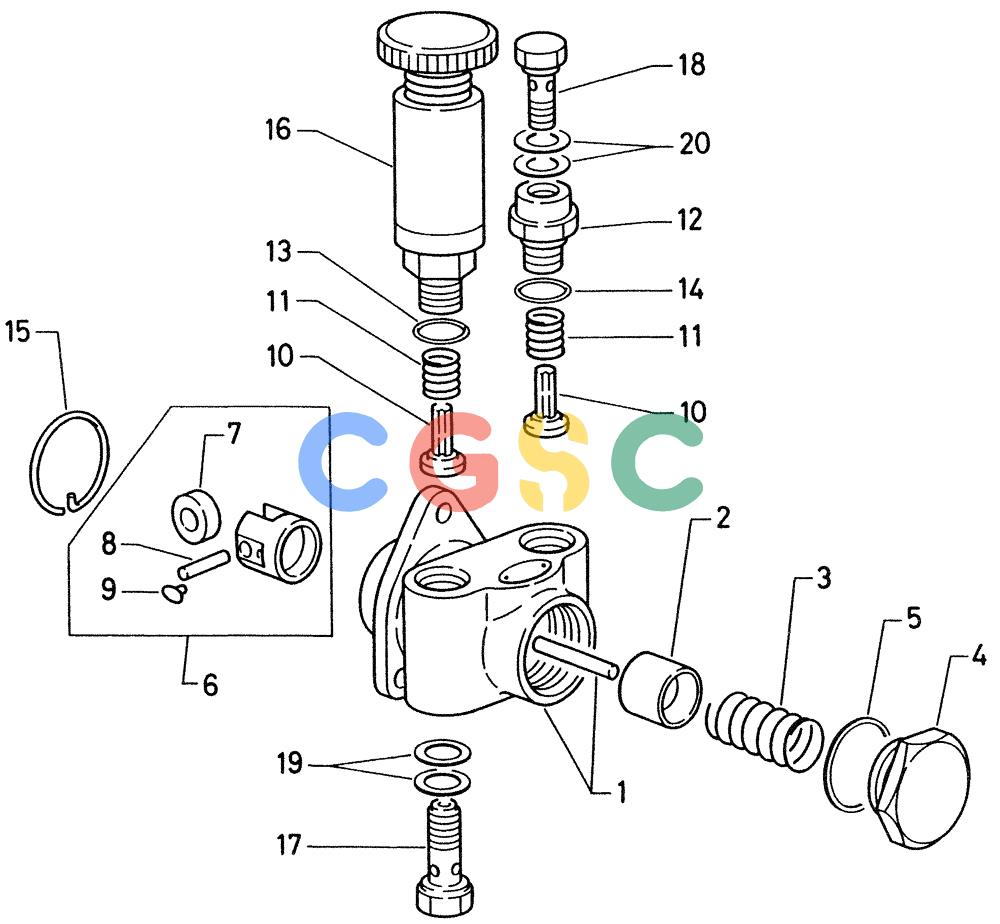

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8941788430 | [1] | PUMP | KOBPUMP ASM, FEED (With Roller) Superseded by part number: VIG1052207270 |
| 1. | VI5157510120 | [1] | HOUSING | KOBHOUSING, FEED PUMP |
| 2. | VI9813512050 | [1] | PISTON | KOBPISTON |
| 3. | VI9813513030 | [1] | PISTON | KOBSPRING, PISTON |
| 4. | VI9813550230 | [1] | PLUG | |
| 5. | VI9813550350 | [1] | GASKET | KOBGASKET |
| 6. | VI5157540010 | [1] | TAPPET | KOBTAPPET |
| 7. | VI9813514030 | [1] | ROLLER | KOBROLLER |
| 8. | VI9813514100 | [1] | PIN | KOBPIN |
| 9. | VI1157590020 | [2] | GUIDE | KOBGUIDE |
| 10. | VI9813516020 | [2] | STD EXHAUST VALVE | KOBSTD ENGINE EXHAUST VALVE VALVE |
| 11. | VI9813517020 | [2] | SPRING | KOBSPRING |
| 12. | VI1157590030 | [1] | ADAPTER | KOBADAPTER |
| 13. | VI1096230160 | [1] | GASKET | KOBO-RING Superseded by part number: VI1156230160 |
| 14. | VI1096230160 | [1] | GASKET | KOBO-RING Superseded by part number: VI1156230160 |
| 15. | VI9813550250 | [1] | SNAP RING | KOBSNAP RING |
| 16. | VI8941311300 | [1] | PUMP | KOBPUMP ASM, PRIMING Superseded by part number: VI1157610061 |
| 17. | VI5157590270 | [1] | BOLT | KOBEYE JOINT |
| 18. | VI1156190820 | [1] | BOLT | KOBEYE JOINT Superseded by part number: VIG0297314580 |
| 19. | VI1157590010 | [2] | O-RING | KOBGASKET Superseded by part number: VI9095720140 |
| 20. | VI1157590010 | [2] | O-RING | KOBGASKET Superseded by part number: VI9095720140 |
