神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-021) - NOZZLE HOLDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
612 次

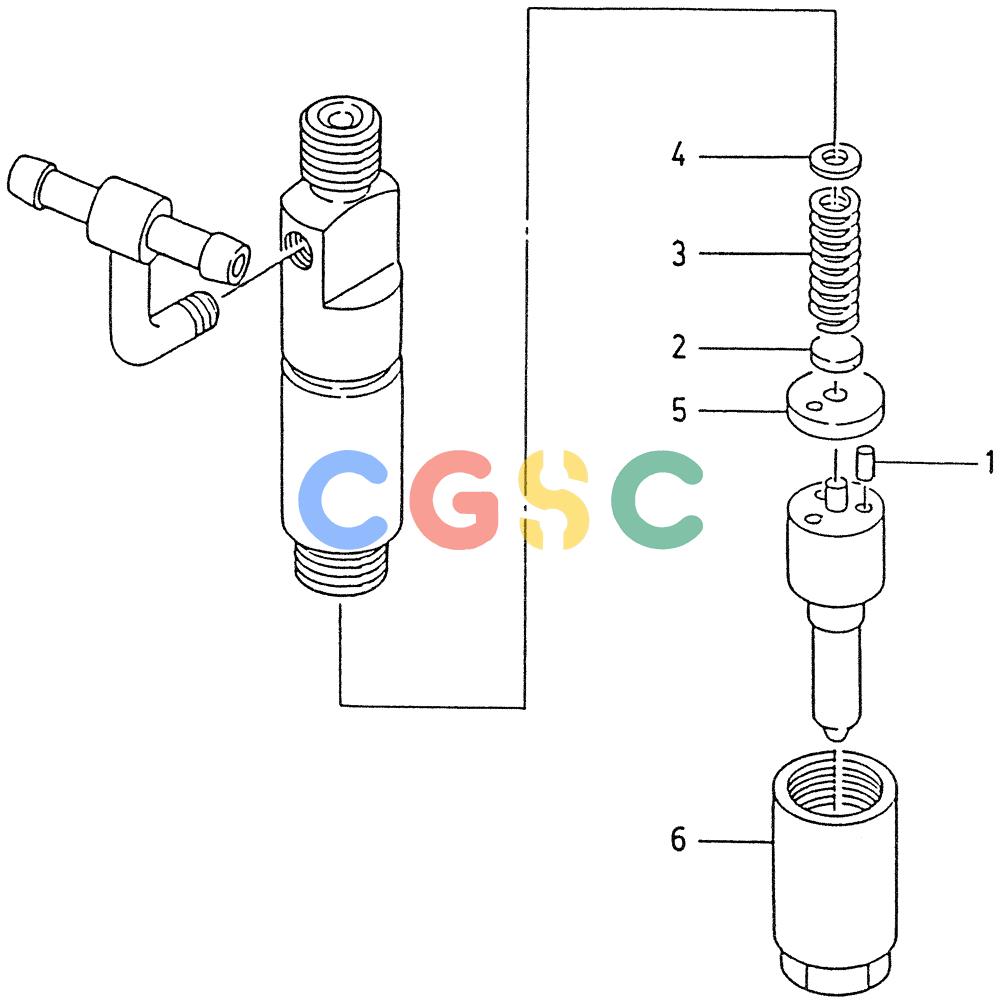

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8941222631 | [1] | HOLDER ASM, NOZZLE | |
| 1. | VI8941741390 | [2] | PIN | KOBPIN |
| 2. | VI8941741400 | [1] | SEAT, SPRING | |
| 3. | VI8941741410 | [1] | SPRING | KOBSPRING Superseded by part number: VIG1505624300 |
| 4. | VI8941741420 | [1] | SHIM | KOBT=0.500 Superseded by part number: VI8971160350 |
| 4-1. | VI8941741430 | [1] | SHIM | KOBSHIM,T=0.525 Superseded by part number: VI8971160370 |
| 4-2. | VI8941741440 | [1] | NOZZLE | KOBSHIM,T=0.550 Superseded by part number: VI8971160400 |
| 4-3. | VI8941741450 | [1] | SHIM | KOBT=0.575 Superseded by part number: VI8971160420 |
| 4-4. | VI8941741460 | [1] | SHIM | KOBT=0.600 Superseded by part number: VI8971699090 |
| 4-5. | VI8941741470 | [1] | SHIM,T=0.625 | |
| 4-6. | VI8941741480 | [1] | SHIM | KOBT=0.650 |
| 4-7. | VI8941741490 | [1] | SHIM,T=0.675 | |
| 4-8. | VI8941741500 | [1] | SHIM,T=0.700 | |
| 4-9. | VI8941741510 | [1] | SHIM,T=0.725 | |
| 4-10. | VI8941741520 | [1] | SHIM | KOBT=0.750 |
| 4-11. | VI8941741530 | [1] | SHIM,T=0.775 | |
| 4-12. | VI8941741540 | [1] | SHIM | KOBT=0.800 Superseded by part number: VI8971603820 |
| 4-13. | VI8941741550 | [1] | SHIM,T=0.825 | |
| 4-14. | VI8941741560 | [1] | SHIM,T=0.850 | |
| 4-15. | VI8941741570 | [1] | SHIM,T=0.875 | |
| 4-16. | VI8941741580 | [1] | SHIM | KOBT=0.900 Superseded by part number: VI8971819810 |
| 4-17. | VI8941741590 | [1] | SHIM,T=0.925 | |
| 4-18. | VI8941741600 | [1] | SHIM,T=0.950 | |
| 4-19. | VI8941741610 | [1] | SHIM,T=0.975 | |
| 4-20. | VI8941741620 | [1] | SHIM,T=1.000 | |
| 4-21. | VI8941741630 | [1] | SHIM,T=1.025 | |
| 4-22. | VI8941741640 | [1] | SHIM,T=1.050 | |
| 4-23. | VI8941741650 | [1] | SHIM,T=1.075 | |
| 4-24. | VI8941741660 | [1] | SHIM,T=1.100 | |
| 4-25. | VI8941741670 | [1] | SHIM,T=1.125 | |
| 4-26. | VI8941741680 | [1] | SHIM,T=1.150 | |
| 4-27. | VI8941741690 | [1] | SHIM,T=1.175 | |
| 4-28. | VI8941741700 | [1] | SHIM,T=1.200 | |
| 4-29. | VI8941741710 | [1] | SHIM,T=1.225 | |
| 4-30. | VI8941741720 | [1] | SHIM,T=1.250 | |
| 4-31. | VI8941741730 | [1] | SHIM,T=1.275 | |
| 4-32. | VI8941741740 | [1] | SHIM,T=1.300 | |
| 4-33. | VI8941741750 | [1] | SHIM,T=1.325 | |
| 4-34. | VI8941741760 | [1] | SHIM,T=1.350 | |
| 4-35. | VI8941741770 | [1] | SHIM,T=1.375 | |
| 4-36. | VI8941741780 | [1] | SHIM,T=1.400 | |
| 4-37. | VI8941741790 | [1] | SHIM,T=1.425 | |
| 4-38. | VI8941741800 | [1] | SHIM,T=1.450 | |
| 4-39. | VI8941741810 | [1] | SHIM,T=1.475 | |
| 4-40. | VI8941741820 | [1] | SHIM,T=1.500 | |
| 5. | VI8941741830 | [1] | SPACER | KOBSPACER |
| 6. | VI8941741840 | [1] | NUT | KOBNUT, RETAINING |
