神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-022[02]) - STARTER (HITACHI) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
203 次

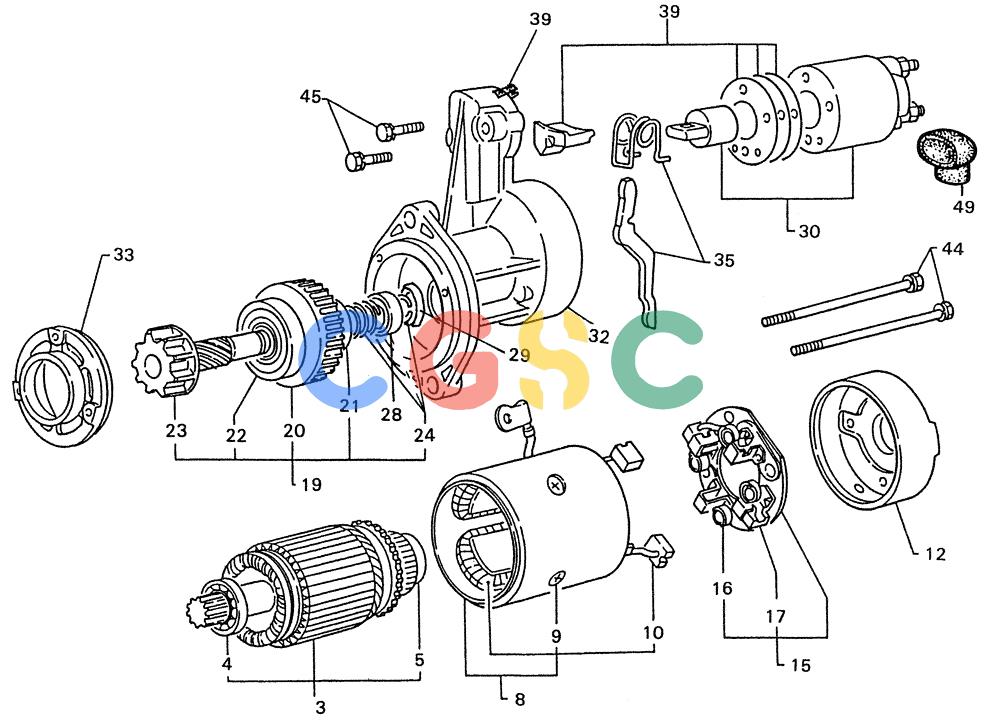

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8944104090 | [1] | STARTER ASM., 12V-2.2KW | |
| 3. | VI8944355610 | [1] | ARMATURE ASM. | |
| 4. | VI8944284360 | [1] | BALL BEARING, (1) | |
| 5. | VIS944284370 | [1] | BALL BEARING, (2) | |
| 8. | VI8941368990 | [1] | COIL ASM., FIELD | |
| 9. | VI8944284390 | [4] | SCREW, POL CORE | |
| 10. | VI8941369000 | [2] | BRUSH, (+) | |
| 12. | VI8944355620 | [1] | COVER ASM., REAR | |
| 15. | VI8941369010 | [1] | HOLDER ASM., BRUSH | |
| 16. | VI8942420640 | [4] | SPRING, BRUSH | |
| 17. | VI8941369000 | [2] | BRUSH, (-) | |
| 19. | VI8944355630 | [1] | CLUTCH ASM., PISTON | |
| 20. | VI8944509180 | [1] | CLUTCH ASM. | |
| 21. | VI8944284480 | [1] | BALL BEARING, (3) | |
| 22. | VI8944284490 | [1] | BALL BEARING, (4) | |
| 23. | VI8944509190 | [1] | SHAFT, PISTON | |
| 24. | VI8944284500 | [1] | STOPPER SET | |
| 28. | VI8944355660 | [1] | BALL BEARING | |
| 29. | VI8944355670 | [1] | HOLDER; BEARING | |
| 30. | VI8944355680 | [1] | SWITCH ASM., MAGNETIC | |
| 32. | VI8944355690 | [1] | CASE, GEAR | |
| 33. | VI8944355700 | [1] | RETAINER, BEARING | |
| 35. | VI8944355710 | [1] | LEVER SET, SHIFT | |
| 39. | VI8944355720 | [1] | COVER KIT | |
| 44. | VI8942420710 | [2] | BOLT, THROUGH | |
| 45. | VI5811292940 | [2] | BOLT, (D=6) | |
| 49. | VI5811290690 | [1] | COVER TERMINAL | |
