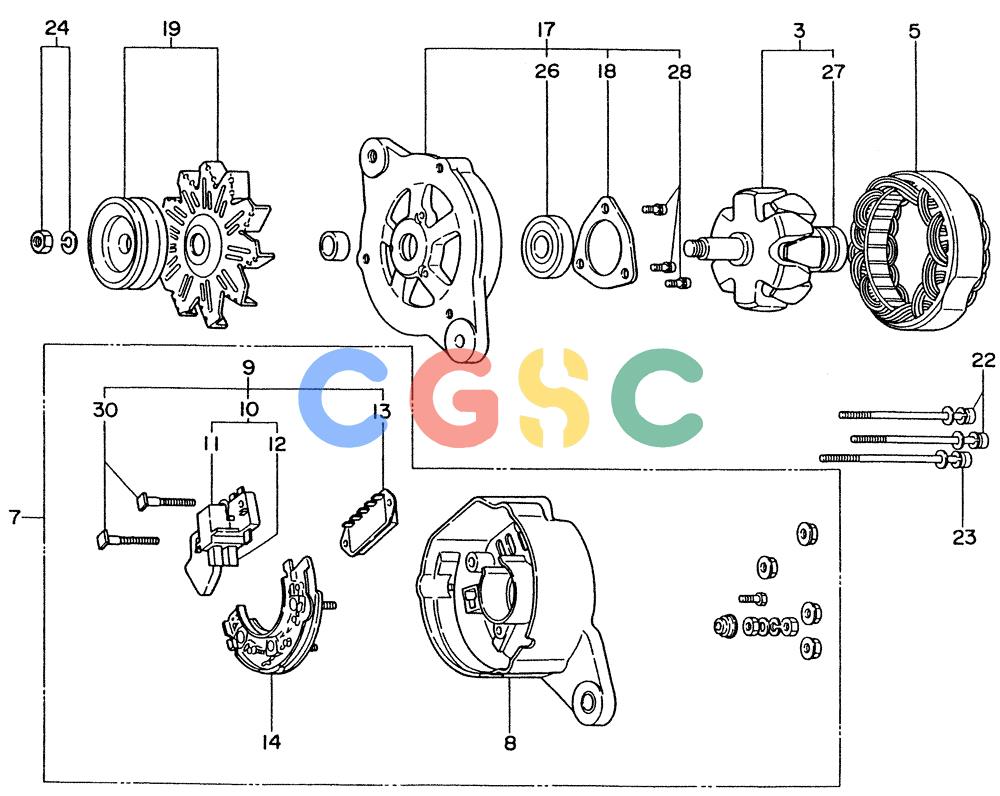

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-023[02]) - GENERATOR (HITACHI) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
318 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8941538821 | [1] | GENERATOR ASM. 12V-35A | |
| 3. | VI5812210630 | [1] | ROTOR ASM. | |
| 5. | VI5812110580 | [1] | STATOR ASM. | |
| 7. | VI5812141310 | [1] | COVER ASM., REAR | |
| 8. | VI5812141320 | [1] | COVER, REAR | |
| 9. | VI5812190360 | [1] | REGULATOR ASM., BRUSH | |
| 10. | VI5812150460 | [1] | BRUSH | KOBBRUSH ASM |
| 12. | VI5812150400 | [2] | MOTOR HOUSING | KOBBRUSH |
| 13. | VI5812700040 | [1] | REGULATOR ASM., I.C. | |
| 14. | VI5812620050 | [1] | DIODE | KOBASM. Superseded by part number: 5812620050 |
| 17. | VI5812130430 | [1] | COVER ASM., FRONT | |
| 18. | VI5812290290 | [1] | RETAINER, BEARING | |
| 19. | VI5812220770 | [1] | PULLEY | KOBPULLEY ASM |
| 22. | VI5812291820 | [2] | BOLT, THROUGH | |
| 23. | VI5812291830 | [1] | BOLT, THROUGH | |
| 24. | VI9822350150 | [1] | NUT, PULLEY | |
| 26. | VI5098000870 | [1] | BEARING | KOBBALL Superseded by part number: 5098000870 |
| 27. | VI9000901810 | [1] | BEARING HALF | KOBBEARING, BALL Superseded by part number: VI8943335210 |
| 28. | VI5812291650 | [1] | SCREW KIT | |
| 30. | VI5812291660 | [2] | BOLT | |
