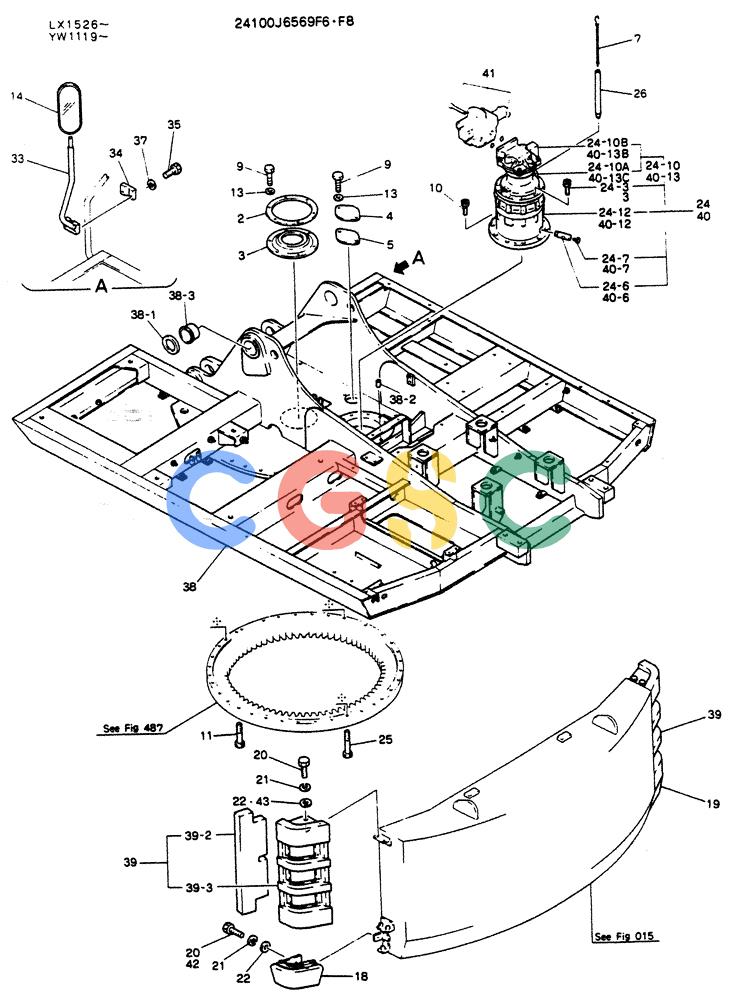

| . . | 24100J6569F6 | [1] | FRAME ASSY, UPP, Serial Range: LX1526-LX1536 | |
| . . | 24100J6569F8 | [1] | FRAME ASSY, UPP, Start Serial: LX1537 | |
| 2. | 2414T2341 | [1] | COVER | KOB Superseded by part number: YN52F01158P1 |
| 3. | 2414Z234 | [1] | COVER | KOB |
| 4. | 2418T12125 | [1] | PLATE | KOB Superseded by part number: YN52F01159P1 |
| 5. | 2416Z434 | [1] | PACKING | KOBRubber |
| 7. | 2420R561D1 | [1] | DIPSTICK | KOB |
| 9. | ZS13C10025 | [8] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 10. | ZS23C20055 | [10] | SCREW,Hex Socket Head, M20 x 55mm | KOBM20x2.5x55mm |
| 11. | ZS13C16080 | [25] | CAPSCREW | KOBSCREW M16x2.0x80mm |
| 13. | 2418T5373C2 | [8] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 14. | 2456Z253 | [1] | MIRROR | KOB |
| 18. | 2427N1676D1 | [1] | PROTECTOR | KOB |
| 19. | 2427N1676D2 | [1] | PROTECTOR | KOB |
| 20. | ZS18C12030 | [12] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm, Serial Range: LX1526-LX1536 |
| 21. | ZW26X12000 | [12] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 22. | 2418T10357 | [12] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 24. | 24100J9087F6 | [1] | MOTOR ASSY, SWING, Serial Range: LX1324-LX1536 | MOTOR ASSY, SWING, Serial Range: LX1324-LX1536 |
| 24-3. | ZS23C12120 | [9] | SCREW,Hex Socket Head, M12 x 120mm | KOBM12x1.75x120mm |
| 24-6. | 2418T17425 | [1] | PIPE | PIPE |
| 24-7. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| 24-10. | 2441U762F1 | [1] | MOTOR, SWING | MOTOR, SWING |
| 24-10A. | 2441U754F2 | [1] | MOTOR, SWING | MOTOR, SWING |
| 24-10B. | 2436U1309F1 | [1] | HYDRAULIC VALVE | KOB |
| 24-12. | NSS | [1] | NOT SOLD SEPARAT | CONUNIT,REDUCTION,SEE FIG 01-005 |
| 25. | 2420T4561D1 | [3] | BOLT | KOBReamer -- M16x2.0x80mm |
| 26. | 2420P1519D1 | [1] | PIPE | KOB |
| 33. | 2416P13732 | [1] | STAY | KOBSTAY Superseded by part number: 2416P13732D2 |
| 34. | 2432T4113 | [1] | CLAMP | KOB Superseded by part number: 2432T4113D2 |
| 35. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 37. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 38. | 2422J2876 | [1] | FRAME,UPP | |
| 38-1. | 2414T2729 | [1] | COVER | KOB |
| 38-2. | ZS83C20020 | [1] | SCREW | KOBSet -- M20x2.50x20mm |
| 38-3. | 2405T1072 | [2] | BUSHING | KOB |
| 39. | 2427T1819F2 | [2] | PROTECTOR | KOB |
| 39-2. | 2427T1836 | [1] | FOAM INSULATION | KOB |
| 39-3. | 2427J2518 | [1] | PROTECTOR | PROTECTOR |
| 40. | 24100J9087F7 | [1] | MOTOR ASSY, SWING, Start Serial: LX1537 | MOTOR ASSY, SWING, Start Serial: LX1537 |
| 40-3. | ZS23C12120 | [9] | SCREW,Hex Socket Head, M12 x 120mm | KOBM12x1.75x120mm |
| 40-6. | 2418T17425 | [1] | PIPE | PIPE |
| 40-7. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| 40-12. | NSS | [1] | NOT SOLD SEPARAT | CONUNIT,REDUCTION |
| 40-13. | 2441U762F2 | [1] | MOTOR ASSY | MOTOR ASSY |
| 40-13B. | 2436U1309F1 | [1] | HYDRAULIC VALVE | KOBVALVE,REDUCTION,SEE(C.P.H) |
| 40-13C. | 2441U754F3 | [1] | MOTOR, SWING | MOTOR, SWING |
| 41. | 2436U1252F4 | [1] | VALVE ASSY | VALVE ASSY |
| 42. | ZS23C12030 | [2] | SCREW,Hex Socket Head, M12 x 30mm | KOBM12x1.75x30mm, Start Serial: LX1537 |
| 43. | 2418T17912D1 | [8] | WASHER | KOBID 14 x OD 40 x Th 4.5mm, Start Serial: LX1549 |
