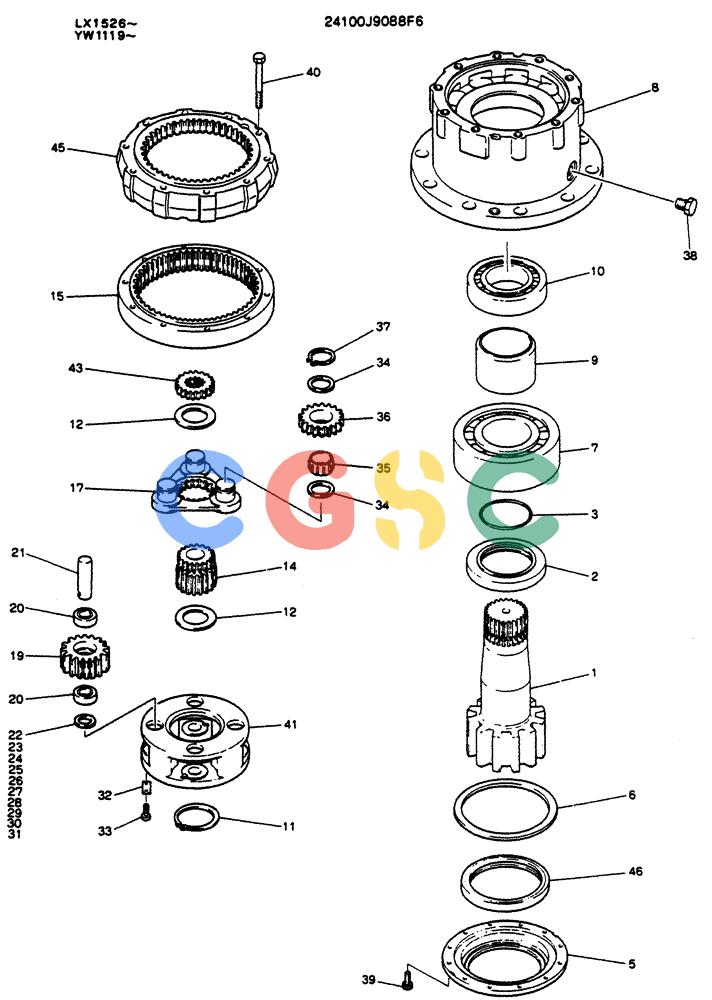

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (01-005) - REDUCTION UNIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
891 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J9088F6 | [1] | REDUCTION UNIT | |
| 1. | 2401N647 | [1] | GEAR SHAFT | KOB |
| 2. | 2418T16145 | [1] | SLEEVE | KOB |
| 3. | ZD11G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOBID 79.40 ± 0.69 x OD 85mm |
| 5. | 2418N2955 | [1] | RETAINER | RETAINER |
| 6. | 2418T16147 | [1] | SPACER | KOB Superseded by part number: 24045Z64F1 |
| 7. | R25P0047D7 | [1] | BALL BEARING | KOB |
| 8. | 2414J1739 | [1] | HOUSING | KOB |
| 9. | 2418T16146 | [1] | SPACER | KOB |
| 10. | 25Z627D12 | [1] | BALL BEARING | KOB |
| 11. | ZR16X07000 | [1] | RING | KOB |
| 12. | 2418T5627 | [2] | SPACER | KOB |
| 14. | 2401P1049 | [1] | SUN GEAR | KOB |
| 15. | 2401N646 | [1] | RING GEAR | KOB |
| 17. | 2413N603F1 | [1] | SPIDER | KOB |
| 19. | 2401P1047 | [4] | PINION | KOB |
| 20. | 2425Z604 | [8] | ROLLER CAGE BEARING | KOB |
| 21. | 2410T399 | [1] | SHAFT | KOB |
| 22. | 2420T6107D1 | [1] | SHIM | KOB1.0 |
| 23. | 2420T6107D2 | [1] | SHIM | KOB1.1 |
| 24. | 2420T6107D3 | [1] | SHIM | KOB1.2 |
| 25. | 2420T6107D4 | [1] | SHIM | KOB1.3 |
| 26. | 2420T6107D5 | [1] | SHIM | KOB1.4 |
| 27. | 2420T6107D6 | [1] | SHIM | KOB1.5 |
| 28. | 2420T6107D7 | [1] | SHIM | KOB1.6 |
| 29. | 2420T6107D8 | [1] | SHIM | KOB1.7 |
| 30. | 2420T6107D9 | [1] | SHIM | KOB1.8 |
| 31. | 2420T6107D10 | [1] | SHIM | KOB1.9 |
| 32. | 2418T16144 | [4] | PLATE | KOB |
| 33. | ZS13C10020 | [8] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 34. | 2418T16143 | [6] | WASHER | KOB |
| 35. | 2425Z780 | [3] | NEEDLE BEARING | KOB |
| 36. | 2401P1046 | [3] | PINION | KOB |
| 37. | ZR16X03200 | [3] | LOCKING RING | KOB |
| 38. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| 39. | ZS23C10030 | [12] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 40. | ZS23C12100 | [4] | CAPSCREW,Hex Socket Head, M12 x 100mm | KOBSCREW M12x1.75x100mm |
| 41. | 2413J671 | [1] | SPIDER | KOB |
| 43. | 2401P1116 | [1] | SUN GEAR | KOB |
| 45. | 2401J358 | [1] | GEAR, RING | GEAR, RING |
| 46. | 2418R460 | [1] | RING | KOB Superseded by part number: 24045Z64F1 |
