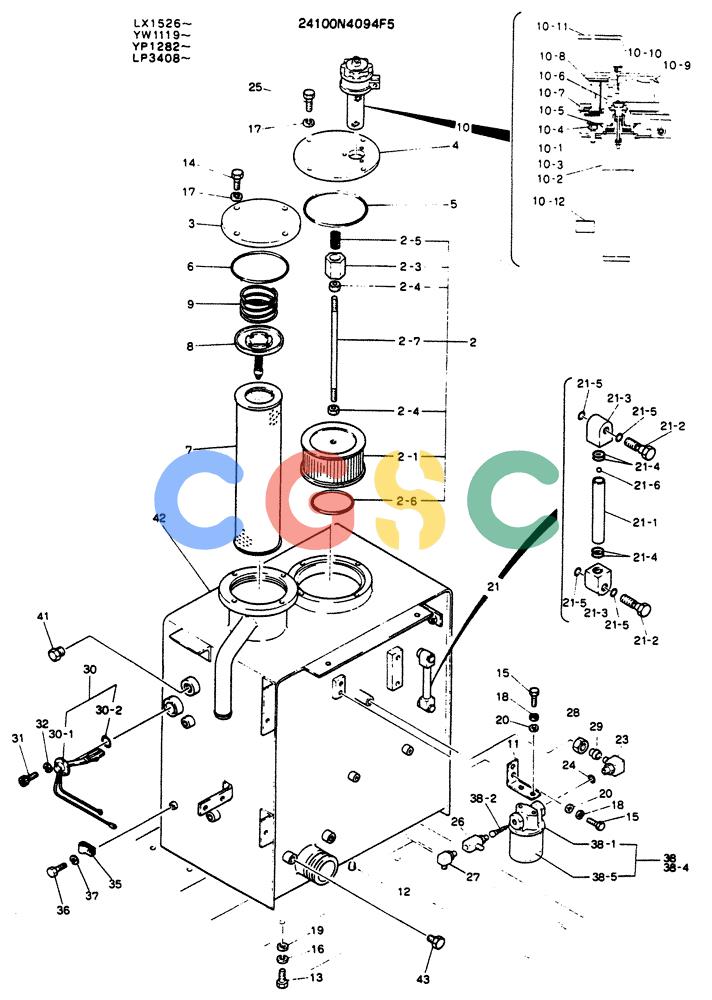

| . . | 24100N4094F5 | [1] | TANK ASSY, HYD TANK ASSY,HYDR | TANK ASSY, HYD TANK ASSY,HYDR |
| 2. | 2446R307F2 | [1] | STRAINER ELEMENT | KOB |
| 2-1. | 2446R307S1 | [1] | STRAINER ASSY. | KOB Superseded by part number: YN50V00002S001 |
| 2-3. | 2446R110S2 | [1] | HOLDER | KOB |
| 2-4. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 2-5. | 2446R110S6 | [1] | SPRING | KOB |
| 2-6. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| 2-7. | 2446R110S5 | [1] | SCREW | KOB |
| 3. | 2418T4572D1 | [1] | FLANGE | KOB |
| 4. | 2418P9988 | [1] | FLANGE | KOB |
| 5. | ZD11G16500 | [1] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| 6. | ZD11P13000 | [1] | O-RING | KOBID 129.6 ± 1.05 x OD 140mm |
| 7. | 2446R147 | [1] | ELEMENT | KOB Superseded by part number: 24046Z15P |
| 8. | 2446U119S3 | [1] | VALVE | KOB |
| 9. | 2446U119S2 | [1] | SPRING | KOB |
| 10. | 2446U228F1 | [1] | BREATHER | KOB |
| 10-1. | 2446U228S1 | [1] | CASE | KOB |
| 10-2. | 2446U228S2 | [1] | STRAINER ELEMENT | KOB Superseded by part number: 2446R133 |
| 10-3. | 2446U228S3 | [1] | GASKET | KOB |
| 10-4. | 2446U228S4 | [3] | SCREW | KOB |
| 10-5. | ZD11P03200 | [1] | O-RING | KOB |
| 10-6. | 2446U228S6 | [1] | VALVE | KOB |
| 10-7. | 2446U228S7 | [1] | COVER | KOB |
| 10-8. | 2446U228S8 | [1] | ELEMENT | KOB |
| 10-9. | 2446U228S9 | [1] | COVER | KOB |
| 10-10. | 2446U228S10 | [1] | SCREW | KOB |
| 10-11. | 2446U228S11 | [1] | BOX SPANNER | KOB |
| 1012. | 2446U228S12 | [1] | LABEL | KOB |
| 11. | 2427T826 | [1] | PLATE | KOB |
| 12. | ZE72X08000 | [1] | PLUG | KOB1/2" PF, (Incls. O-Ring ZD12P01800) |
| 13. | ZS13C16035 | [4] | SCREW | KOBM16x2.0x35mm |
| 14. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 15. | ZS13C08018 | [4] | SCREW | KOBM08x1.25x18mm Superseded by part number: ZS18C08020 |
| 16. | ZW22X16000 | [4] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 17. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 18. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 19. | R16T0152D2 | [4] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 20. | ZW11X08000 | [4] | WASHER | KOBID 09 x OD 17 x Th 1.6mm Superseded by part number: ZW16X08000 |
| 21. | 2489R293F1 | [1] | LEVEL GAUGE | KOB Superseded by part number: YN58S00009F1 |
| 21-1. | 2489R173S1 | [1] | GAUGE | KOB |
| 21-2. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| 21-3. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| 21-4. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 21-5. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 21-6. | 2489R174S7 | [1] | FLOAT | KOB |
| 23. | ZA33F22008 | [1] | 90 ELBOW,M30 x 1.5 ORB x 1/2" NPT | KOB90° -- 1/2" PF - M30x1.50x34mm Long (Incls. O-Ring ZD12P02400) |
| 24. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 25. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 26. | 2444Z2322 | [1] | TEE | KOB |
| 27. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) |
| 28. | ZA93N22000 | [1] | TUBE NUT | KOB |
| 29. | ZA93S22000 | [1] | RING | KOB |
| 30. | 2489R302F1 | [1] | SWITCH | KOB |
| 30-1. | 2489R302S1 | [1] | SWITCH | KOB Superseded by part number: 77260484, 2489R302F1 |
| 30-2. | 2489R302S2 | [1] | O-RING | KOB |
| 31. | ZS23C06010 | [3] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 32. | ZW22K06000 | [3] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 35. | ZC45X0G007 | [1] | CLIP | |
| 36. | ZS18C06016 | [1] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 37. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 38. | 2446U215F2 | [1] | HYDRAULIC OIL FILTER | KOB |
| 38-1. | 2446U215S01 | [1] | CONTAINER | KOB |
| 38-2. | 2446U175S2 | [1] | VALVE | KOB |
| 38-4. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 38-5. | 2446U215S5 | [1] | CARTRIDGE | KOB Superseded by part number: 2446U215S5P |
| 41. | ZE72X16000 | [1] | PLUG | KOB(Incls. O-Ring ZD12P02900) |
| 42. | 2427J1397 | [1] | TANK, HYD | TANK, HYD |
| 43. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| . . | 24046Z15 | [1] | ELEMENT | KOBKIT,CONSISTS OF REF 6 & 7 Superseded by part number: 24046Z15P |
