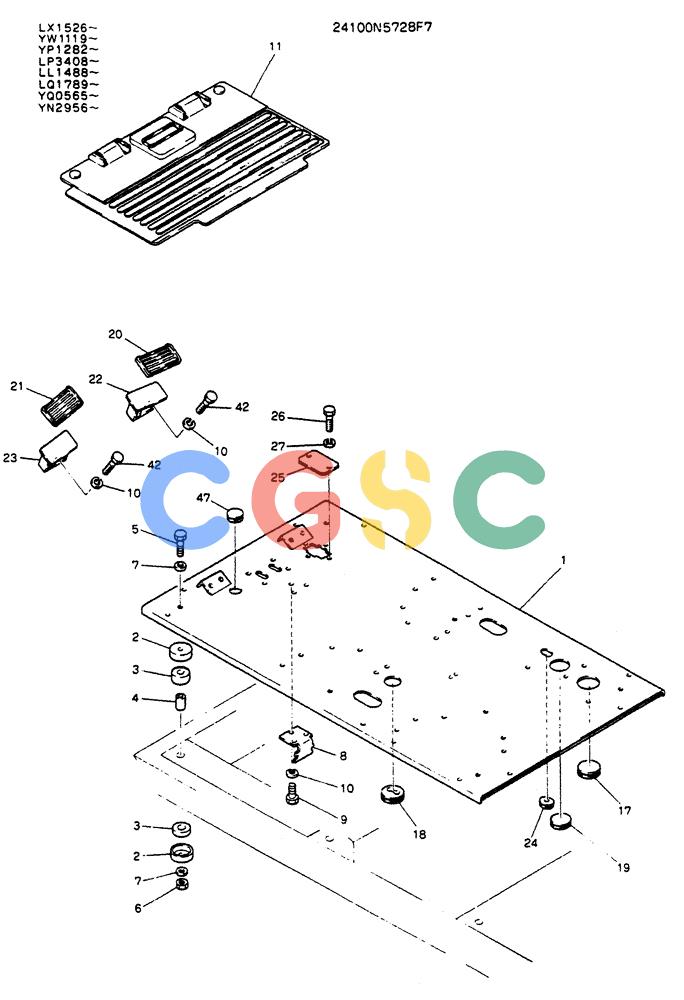

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (02-006) - PLATE ASSY, FLOOR, P/N 24100N5728F7 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
799 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5728F7 | [1] | PLATE ASSY,FLOOR | |
| 1. | 2427J2478 | [1] | PLATE,FLOOR | |
| 2. | 2414T2855 | [12] | COVER | KOB |
| 3. | 2416Z539 | [12] | RUBBER SLEEVE | KOB |
| 4. | 2418T9226D7 | [6] | SPACER | KOB |
| 5. | ZS18C16100 | [6] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 6. | ZN32C16015 | [6] | NUT | KOBM16x2.0mm |
| 7. | R16T0152D2 | [12] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm, Serial Range: LX1526-LX1336 |
| . . | ZW16H16000 | [12] | WASHER | KOBID 17 x OD 32 x Th 4.5mm, Start Serial: LX1531 |
| 8. | 2416P8622 | [1] | BRACKET | KOB |
| 9. | ZS18C10025 | [3] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 10. | ZW26X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 11. | 2427U853 | [1] | FLOOR MAT | KOB |
| 17. | 2420Z1220 | [1] | GROMMET | KOB |
| 18. | 2420Z1218 | [1] | GROMMET | KOB |
| 19. | 2420Z1189 | [1] | GROMMET | KOB |
| 20. | 2414T4379 | [1] | COVER | KOB |
| 21. | 2414T4378 | [1] | COVER | KOB |
| 22. | 2429T365 | [1] | STEP | KOB |
| 23. | 2429T364 | [1] | STEP | KOB |
| 24. | 2420Z1217 | [1] | GROMMET | KOB |
| 25. | 2418T19170 | [1] | PLATE | KOB |
| 26. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 27. | ZW26X03000 | [2] | LOCK WASHER | HIT |
| 42. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 47. | 2420Z1286 | [1] | GROMMET | KOBGROMMET |
