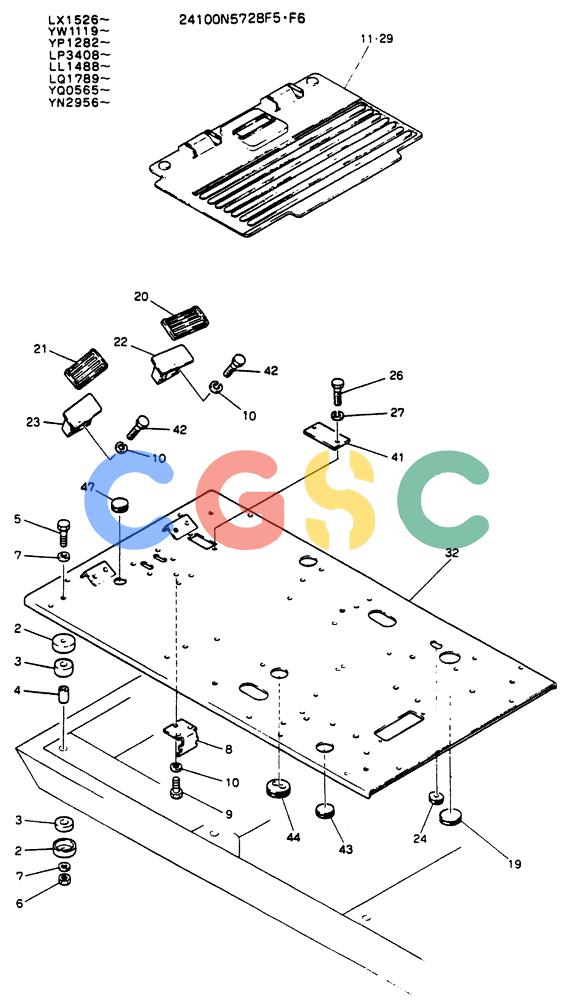

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (02-007) - PLATE ASSY (FLOOR), P/N 24100N5728F5, F6 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
480 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5728F5 | [1] | PLATE | KOB |
| 2. | 2414T2855 | [12] | COVER | KOB |
| 3. | 2416Z539 | [12] | RUBBER SLEEVE | KOB |
| 4. | 2418T9226D7 | [6] | SPACER | KOB |
| 5. | ZS18C16100 | [6] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 6. | ZN32C16015 | [6] | NUT | KOBM16x2.0mm |
| 7. | R16T0152D2 | [12] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm, Serial Range: LX1586-LX1830 |
| . . | ZW16H16000 | [12] | WASHER | KOBID 17 x OD 32 x Th 4.5mm, Start Serial: LX1331 |
| 8. | 2416P8622 | [1] | BRACKET | KOB |
| 9. | ZS18C10025 | [3] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 10. | ZW26X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 11. | 2427U853 | [1] | FLOOR MAT | KOB |
| 19. | 2420Z1189 | [1] | GROMMET | KOB |
| 20. | 2414T4379 | [1] | COVER | KOB |
| 21. | 2414T4378 | [1] | COVER | KOB |
| 22. | 2429T365 | [1] | STEP | KOB |
| 23. | 2429T364 | [1] | STEP | KOB |
| 24. | 2420Z1217 | [1] | GROMMET | KOB |
| 26. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 27. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 32. | 2427J2483 | [1] | PLATE | KOB |
| 41. | 2418T17209 | [1] | PLATE | PLATE |
| 42. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 43. | 2420Z699 | [1] | GROMMET | KOB |
| 44. | 2420Z1042 | [1] | GROMMET | KOB Superseded by part number: 2420Z1301 |
| 47. | 2420Z1286 | [1] | GROMMET | KOBGROMMET |
| . . | 24100N5728F6 | [1] | PLATE ASSY, FLOOR | |
| 29. | 2427U843 | [1] | MAT, FLOOR | |
