神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (02-008) - SEAT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
135 次

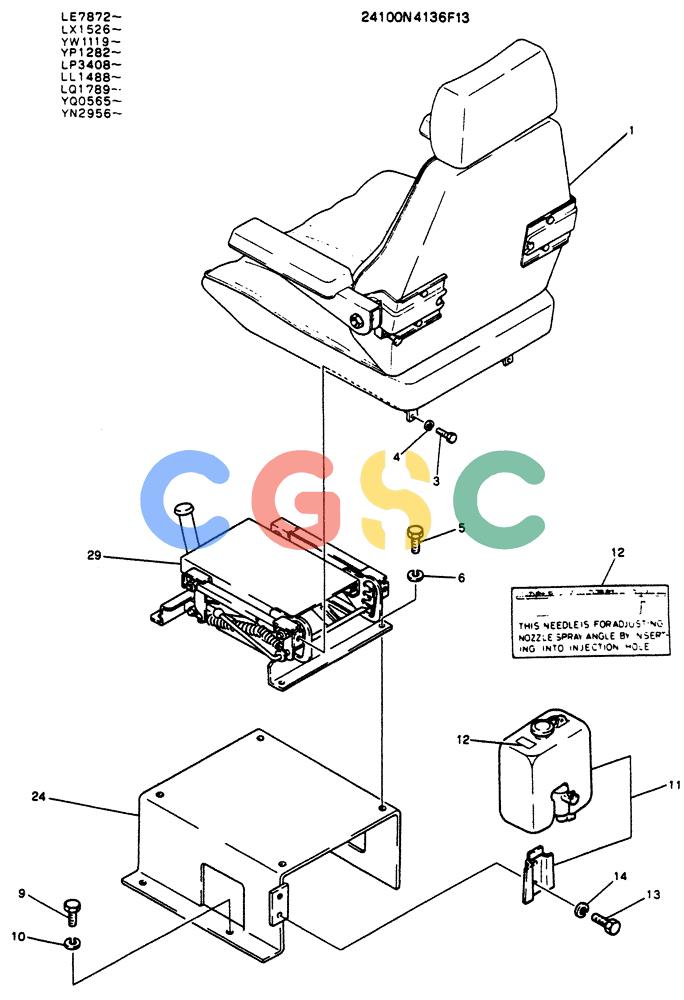

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4136F13 | [1] | SEAT ASSY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT ASSY,SEE FIG 02-011 |
| 3. | ZS18C08016 | [8] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 4. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 5. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 6. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 10. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 11. | 24100U157F1 | [1] | TANK | KOB Superseded by part number: YT54C00003F1 |
| 12. | 2432Z327 | [1] | PLATE | KOB |
| 13. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 14. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 24. | 2414N3987 | [1] | STAND,SEAT | |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CONSUSPENSION,SEAT,SEE FIG 02-013 |
