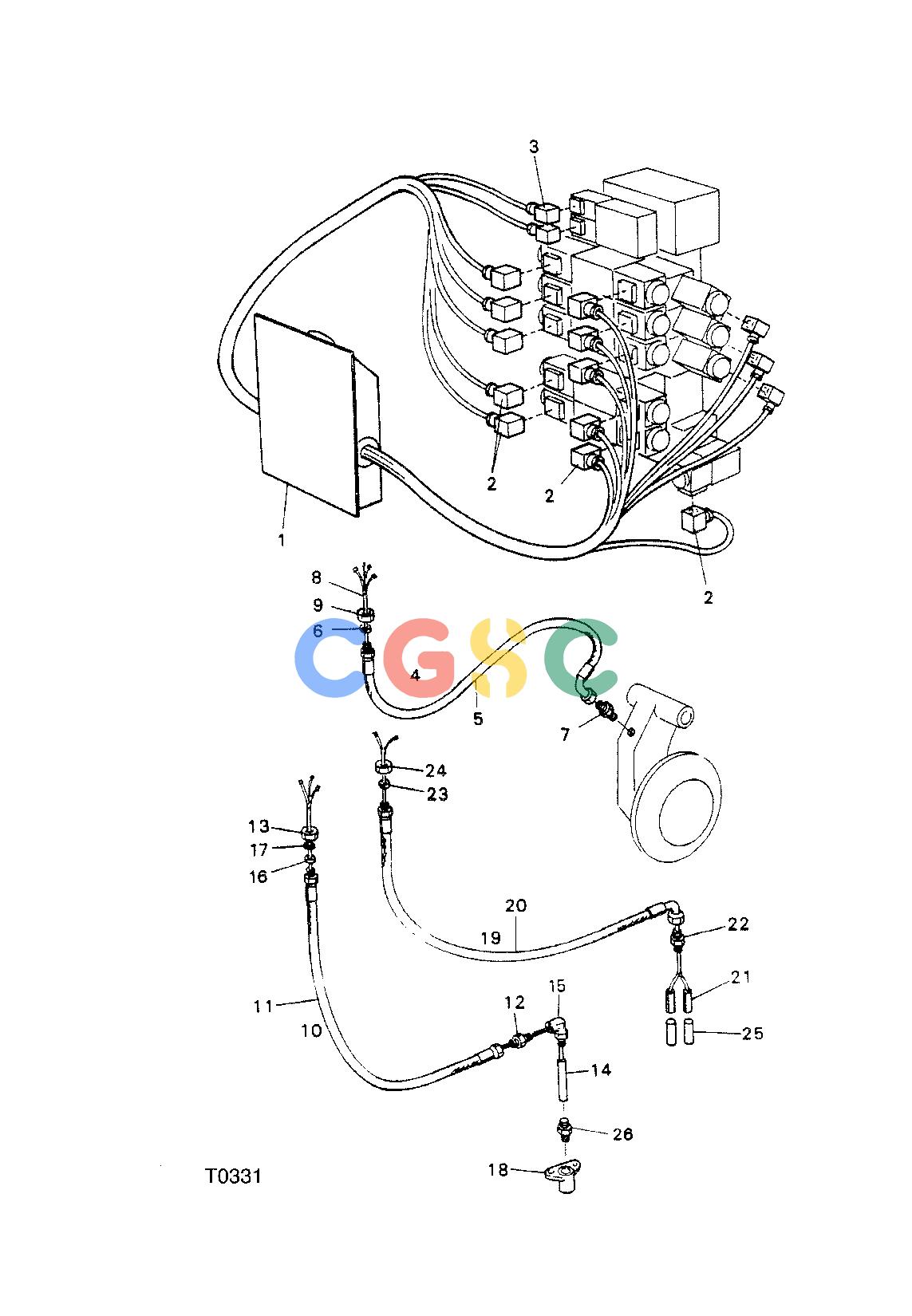

约翰迪尔零件查询746BST - ATTACHMENTS ELECTRICAL SYSTEM HEAD 746B ( O275 - ) 4536-029/10 [4536-029/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F027586
|
[1] |
ELECTRICAL BOX
|
|
| |
F014678
|
[1] |
Box
|
|
| |
F014680
|
[1] |
Cover
|
|
| |
F003523
|
[4] |
BOLT, M8X1.25
|
|
| 2. |
F004578
|
[13] |
Connector
|
|
| 3. |
F020012
|
[2] |
Connector
|
|
| |
F015962
|
[15] |
Diode
|
|
| |
F015541
|
[4] |
LEAD IN RING
|
|
| 4. |
F029766
|
[1] |
CABLE HARNESS - UP TO S/N H-317
|
|
| |
F041149
|
[1] |
CABLE HARNESS - FROM S/N H318
|
|
| 5. |
F028811
|
[1] |
HOSE - 410MM LG
|
|
| 6. |
F028802
|
[1] |
CONDUIT ENTRY
|
|
| 7. |
F005055
|
[1] |
CONNECTION
|
|
| 8. |
F019370
|
[1] |
Cable
|
|
| 9. |
F022415
|
[1] |
COUPLING NUT
|
|
| 10. |
F028637
|
[1] |
Cable
|
|
| 11. |
F028799
|
[1] |
HOSE - 930MM LG
|
|
| 12. |
F005055
|
[1] |
CONNECTION
|
|
| 13. |
F022415
|
[1] |
COUPLING NUT
|
|
| 14. |
F033304
|
[1] |
Sensor
|
|
| 15. |
F019164
|
[1] |
ELBOW
|
|
| 16. |
F028802
|
[1] |
CONDUIT ENTRY
|
|
| 17. |
F003337
|
[1] |
Washer
|
|
| 18. |
F011171
|
[1] |
HOLDER - UP TO S/N H-198
|
|
| |
F035590
|
[1] |
HOLDER - FROM S/N H199
|
|
| 19. |
F028636
|
[1] |
Cable
|
|
| 20. |
F028798
|
[1] |
HOSE - 1150MM LG
|
|
| 21. |
F018091
|
[1] |
SENSOR CABLE
|
|
| 22. |
F005060
|
[1] |
CONNECTION
|
|
| 23. |
F028803
|
[1] |
CONDUIT ENTRY
|
|
| 24. |
F010079
|
[1] |
Nut
|
|
| 25. |
F018090
|
[2] |
Sensor
|
|
| 26. |
F035597
|
[1] |
EXTENSION PIECE
|
|
