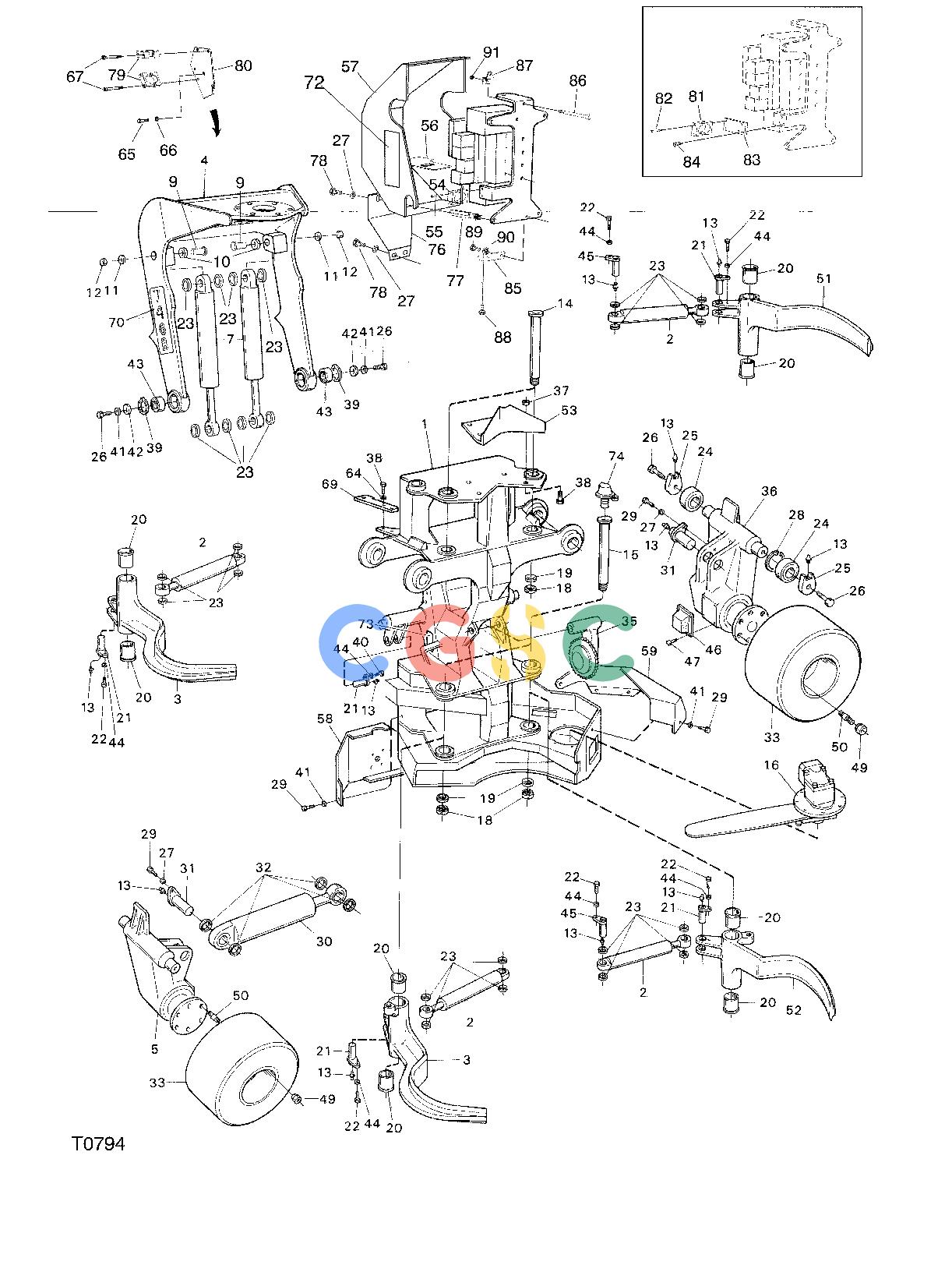

约翰迪尔零件查询746BST - ATTACHMENTS FELLING HEAD 746B ( H318 - ) 4536-031/10 [4536-031/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
613 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F019880
|
[1] |
FRAME - UP TO S/N H430
|
|
| |
F039631
|
[1] |
LEG ASSY - FROM S/N H431
|
|
| 2. |
F012663
|
[4] |
Hydraulic Cylinder
|
|
| 3. |
F038518
|
[2] |
DELIMBING TOOL
|
|
| 4. |
F037294
|
[1] |
Link
|
|
| 5. |
-------
|
[1] |
WHEEL MOUNTING
|
|
| 7. |
F037427
|
[2] |
Cylinder
|
|
| 8. |
F017585
|
[2] |
RETAINING RING
|
|
| 9. |
F029974
|
[2] |
Pin
|
|
| 10. |
F031177
|
[2] |
Spacer
|
|
| 11. |
F029919
|
[2] |
Washer
|
|
| 12. |
F031184
|
[2] |
Nut
|
|
| 13. |
F005626
|
[20] |
GREASE FITTING
|
|
| 14. |
F018242
|
[2] |
Pin
|
|
| 15. |
F018241
|
[2] |
Pin
|
|
| 16. |
-------
|
[1] |
Saw
|
|
| 17. |
-------
|
[1] |
HYDRAULIC SYSTEM
|
|
| 18. |
F018838
|
[4] |
Nut
|
|
| 19. |
F012697
|
[4] |
Washer
|
|
| 20. |
F005548
|
[8] |
BEARING SLEEVE
|
|
| 21. |
F011185
|
[8] |
Pin
|
|
| 22. |
F012699
|
[8] |
Bolt
|
|
| 23. |
F011186
|
[20] |
Spacer
|
|
| 24. |
F015049
|
[4] |
Bearing
|
|
| 25. |
F018512
|
[4] |
Spacer
|
|
| 26. |
F003495
|
[6] |
Bolt
|
|
| 27. |
F002805
|
[6] |
LOCKWASHER
|
|
| 28. |
F003375
|
[2] |
CIRCLIP
|
|
| 29. |
F003540
|
[6] |
Bolt
|
|
| 30. |
F014647
|
[1] |
Hydraulic Cylinder
|
|
| 31. |
F014673
|
[2] |
Pin
|
|
| 32. |
F014675
|
[4] |
Spacer
|
|
| 33. |
F013128
|
[2] |
FEED WHEEL - TIRECO
|
|
| |
F038536
|
[2] |
FEED WHEEL - SOFT GRIP
|
|
| |
F012677
|
[2] |
SPIKED ROLL - STEEL
|
|
| |
F032177
|
[600] |
Spike
|
|
| 35. |
-------
|
[1] |
MEASURING ROLL
|
|
| 36. |
-------
|
[1] |
WHEEL MOUNTING
|
|
| 37. |
F011198
|
[4] |
Nut
|
|
| 38. |
F003544
|
[8] |
BOLT, M12X1.75
|
|
| 39. |
F015955
|
[2] |
CIRCLIP
|
|
| 40. |
F003530
|
[2] |
Bolt
|
|
| 41. |
F003340
|
[6] |
Washer
|
|
| 42. |
F009964
|
[2] |
Washer
|
|
| 43. |
F013894
|
[2] |
Bearing
|
|
| 44. |
F005551
|
[10] |
LOCKWASHER
|
|
| 45. |
F011193
|
[2] |
Pin
|
|
| 46. |
F019359
|
[2] |
Pad
|
|
| 47. |
F007787
|
[8] |
Bolt
|
|
| 49. |
F012692
|
[12] |
Nut
|
|
| 50. |
F012691
|
[12] |
Screw
|
|
| 51. |
F012693
|
[1] |
LIMBING TOOL
|
|
| 52. |
F012675
|
[1] |
LIMBING TOOL
|
|
| 53. |
F018204
|
[1] |
DELIMBING KNIFE
|
|
| 54. |
F028746
|
[1] |
HOLDER PAIR
|
|
| 55. |
F011314
|
[2] |
|
|
| 56. |
F038546
|
[1] |
CAP ASSY
|
|
| 57. |
F037338
|
[1] |
Cover
|
|
| 58. |
F023996
|
[1] |
PROTECTION PLATE
|
|
| 59. |
F024017
|
[1] |
PROTECTION PLATE
|
|
| 64. |
F010808
|
[4] |
Washer
|
|
| 69. |
F025691
|
[1] |
BRACKET - TO S/N 430
|
|
| |
F025639
|
[1] |
HEAD - FROM S/N 431
|
|
| 70. |
F023973
|
[2] |
DECAL
|
|
| 72. |
F018602
|
[2] |
DECAL
|
|
| 73. |
F027583
|
[1] |
DECAL
|
|
| 74. |
|
[2] |
ANGLE INDICATOR
|
|
| 76. |
F039678
|
[1] |
Plate
|
|
| 77. |
F037411
|
[2] |
HEXAGON BAR
|
|
| 78. |
F003540
|
[4] |
Bolt
|
|
| 79. |
F028642
|
[2] |
PAIR HOLDER - DAPT
|
|
| 80. |
F027671
|
[1] |
SUPPORT - DAPT
|
|
| 81. |
F041060
|
[1] |
PAIR HOLDER - DAPT
|
|
| 82. |
F010828
|
[2] |
BOLT - DAPT
|
|
| 83. |
F039698
|
[1] |
FOOTBOARD - DAPT
|
|
| 84. |
F003401
|
[3] |
HEX.SOCKETHEAD SCREW - DAPT
|
|
| 85. |
F037418
|
[1] |
Bracket
|
|
| 86. |
F028804
|
[1] |
Screw
|
|
| 87. |
F027696
|
[1] |
Clamp
|
|
| 88. |
F003522
|
[2] |
BOLT M8X1.25-12
|
|
| 89. |
F003548
|
[2] |
BOLT M16X2.00-25
|
|
| 90. |
F005012
|
[2] |
Washer
|
|
| 91. |
F003588
|
[1] |
LOCKNUT M10X1.5
|
|
