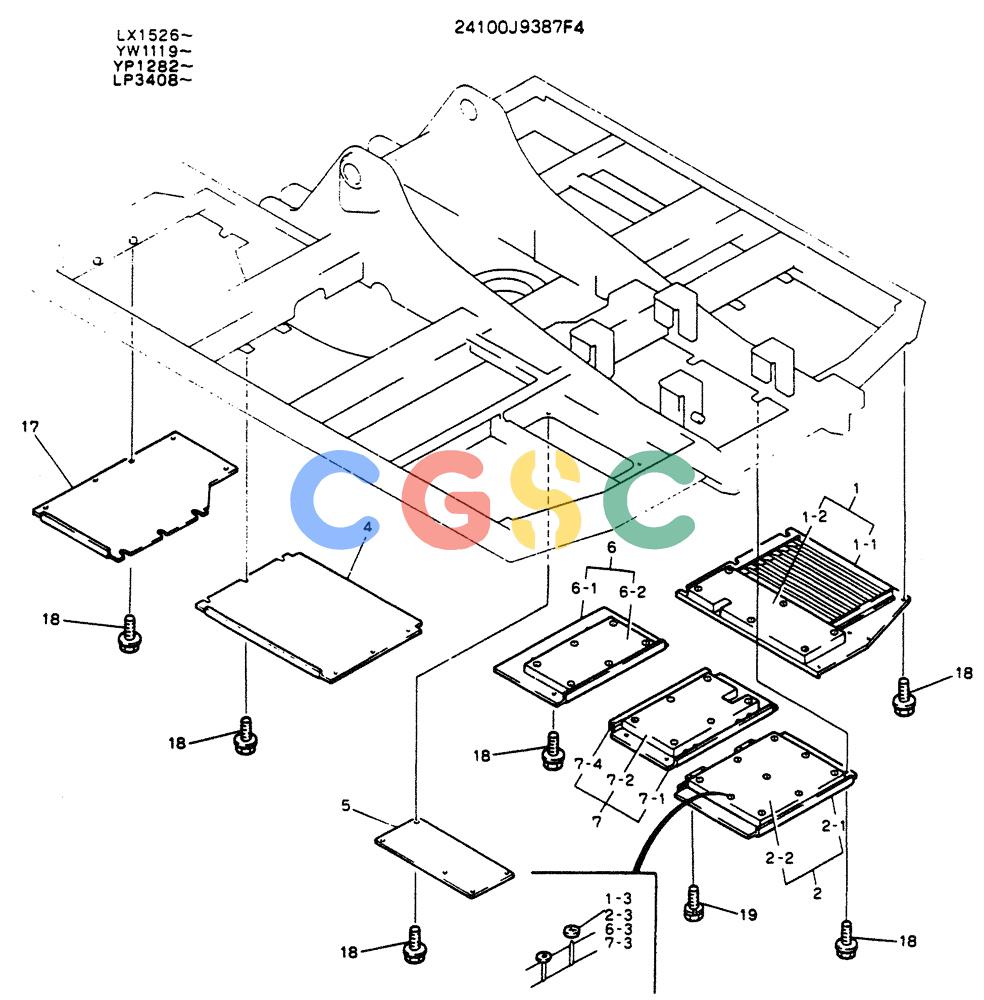

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (02-019) - COVER ASSY, UNDER, P/N 24100J9387F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
808 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J9387F4 | [1] | COVER ASSY,UNDER | |
| 1. | 2414T3007F1 | [1] | COVER ASSY | |
| 1-1. | 2414P6195 | [1] | COVER | |
| 1-2. | 2427T960 | [1] | INSULATION,SOUND | |
| 1-3. | 2418T8864 | [6] | WASHER | KOBWASHER |
| 2. | 2414T3005F1 | [1] | COVER ASSY | |
| 2-1. | 2414P6188 | [1] | COVER | |
| 2-2. | 2427T959 | [1] | INSULATION,SOUND | |
| 2-3. | 2418T8864 | [9] | WASHER | KOBWASHER |
| 4. | 2414P6147 | [1] | COVER | KOB |
| 5. | 2414T2884 | [1] | COVER | KOB530 x 230 x Th 2.3mm |
| 6. | 2414T3003F1 | [1] | COVER ASSY | |
| 6-1. | 2414P6186 | [1] | COVER | |
| 6-2. | 2427T957 | [1] | INSULATION,SOUND | |
| 6-3. | 2418T8864 | [6] | WASHER | KOB |
| 7. | 2414T3004F1 | [1] | COVER ASSY | |
| 7-1. | 2414P6187 | [1] | COVER | |
| 7-2. | 2427T958 | [1] | INSULATION,SOUND | |
| 7-3. | 2418T8864 | [6] | WASHER | KOB |
| 7-4. | 2416Z299D20 | [1] | RUBBER,CUSHION | |
| 17. | 2414P6746 | [1] | COVER | KOB |
| 18. | 2420T6787 | [36] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 19. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
