神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (10-005) - TOOL ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
247 次

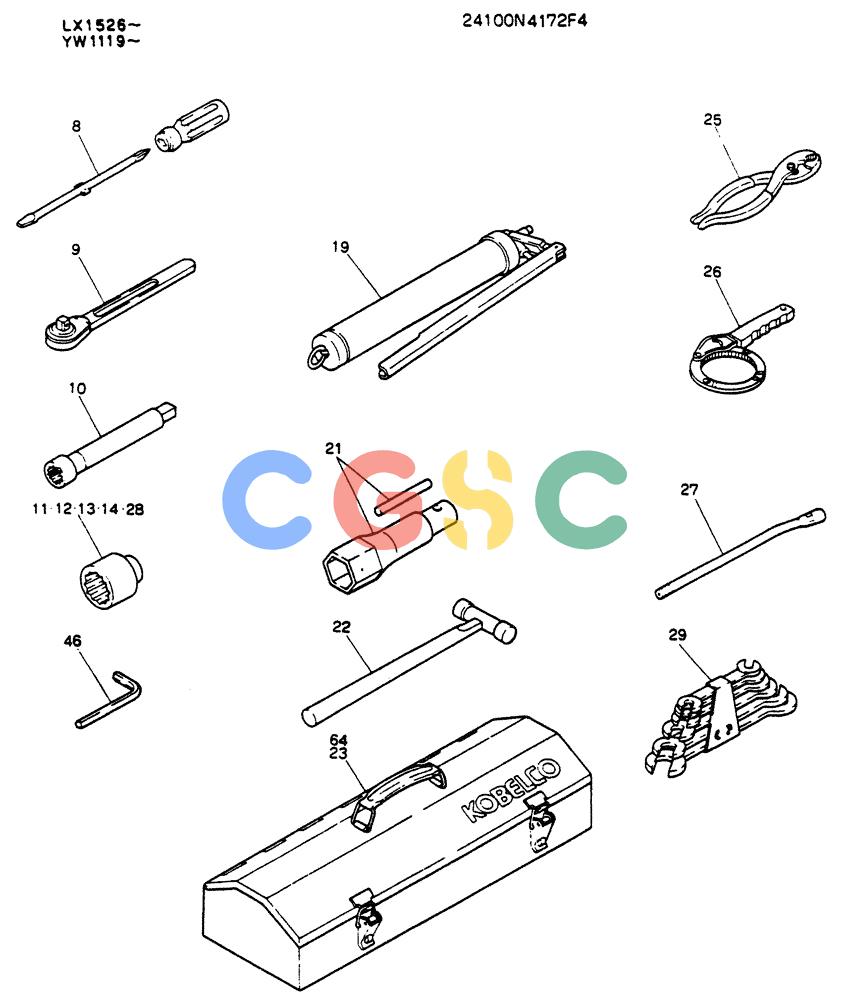

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4172F4 | [1] | SPECIAL TOOL | KOB |
| 8. | 2421Z294 | [1] | BLOCK DRIVER | KOBDRIVER Screw, 165mm Long |
| 9. | ZT31B13250 | [1] | HANDLE | KOB |
| 10. | ZT31D13150 | [1] | BAR | KOB |
| 11. | ZT31A17000 | [1] | SOCKET | KOB |
| 12. | ZT31A19000 | [1] | SOCKET | KOB |
| 13. | ZT31A22000 | [1] | SOCKET | KOB |
| 14. | ZT31A27000 | [1] | SOCKET | KOB |
| 19. | 2421R145 | [1] | GREASE GUN | KOB Superseded by part number: YT01T01009F1 |
| 21. | 2421T8 | [1] | TIGHTENER | KOB |
| 22. | ZT71A15000 | [1] | HAMMER | KOB |
| 25. | ZT51A15000 | [1] | PLIERS | KOB |
| 26. | 2421R170 | [1] | GENERAL TOOL | KOB Superseded by part number: YW01T01014P1 |
| 27. | 2421R140 | [1] | NOZZLE | KOBAdapter -- 1/8"PFx180mm Long |
| 28. | ZT31A24000 | [1] | SOCKET | KOB |
| 29. | 2421Z296 | [1] | ADJUSTING WRENCH | KOBSet -- (8x10(1),12x14(1),13x17(1),19x22(1),24x27(1),30x32(1)) |
| 46. | ZT22A12000 | [1] | KEY, SCREW 12mm | KEY, SCREW 12mm |
| 64. | 2414T4185 | [1] | TOOL BOX | KOB400x155x110mm |
