神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-004) - VALVE ASSY, RELIEF, P/N 2436R683F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
687 次

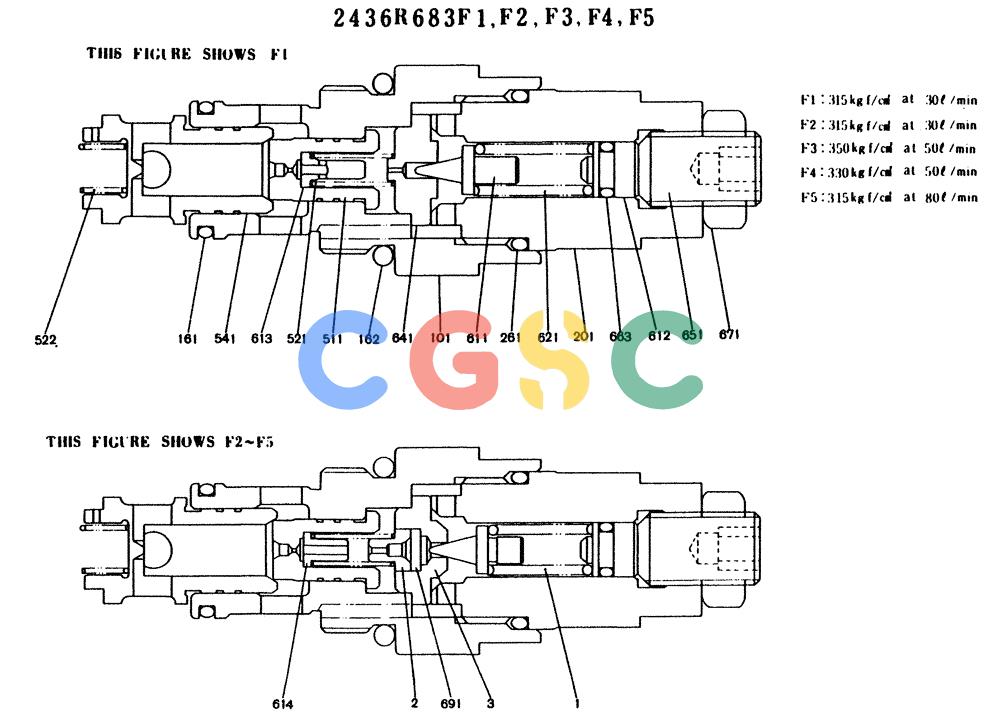

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R683F1 | [1] | VALVE PRESSURE RELIE | KOBVALVE USSY.RELIEF Superseded by part number: 2436R683F2 |
| . . | 2436R683F2 | [1] | VALVE PRESSURE RELIE | KOBVALVE USSY.RELIEF |
| . . | 2436R683F3 | [1] | VALVE | KOBVALVE USSY.RELIEF |
| . . | 2436R683F4 | [1] | VALVE PRESSURE RELIE | KOBVALVE USSY.RELIEF |
| . . | 2436R683F5 | [1] | VALVE USSY.RELIEF | |
| 1. | 2436R683S1 | [1] | SPRING | KOB(F2-F5 ONLY) |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT(F2-F5 ONLY) |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT,SPRING(F2-F5 ONLY) |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY(F1-F5 ONLY) |
| 161. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm, (F1-F5 Only) |
| 162. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm, (F1-F5 Only) |
| 201. | 2436R683S201 | [1] | PLUG | KOB(F1-F5 ONLY) |
| 261. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm(F1-F5 Only) |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER(F1-F5 ONLY) |
| 521. | 2436R683S521 | [1] | SPRING | KOB(F1-F5 ONLY) |
| 522. | 2436R683S522 | [1] | SPRING | KOB(F1-F5 ONLY) |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT 1(F1-F5 ONLY) |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET(F1-F5 ONLY) |
| 612. | 2436R682S521 | [1] | SEAT | KOBSPRING(F1-F5 ONLY) |
| 613. | 2436R683S613 | [1] | SEAT, SPRING(NOT AVAILABLE) (F1 ONLY) | SEAT, SPRING(NOT AVAILABLE) (F1 ONLY) |
| 614. | 2436R750S614 | [1] | SEAT,SPRING(F2-F5 ONLY) | |
| 621. | 2436R683S621 | [1] | SPRING | KOB(F1 ONLY) Superseded by part number: 2436R683S1 |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT 2(F1ONLY) |
| 651. | 2436R683S651 | [1] | SET SCREW | KOBSET(F1-F5 ONLY) |
| 663. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm, (F1-F5 Only) |
| 671. | 2436R683S671 | [1] | NUT | KOB(F1-F5 ONLY)( Superseded by part number: ZN18C12007 |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER(F2-F5 ONLY) |
