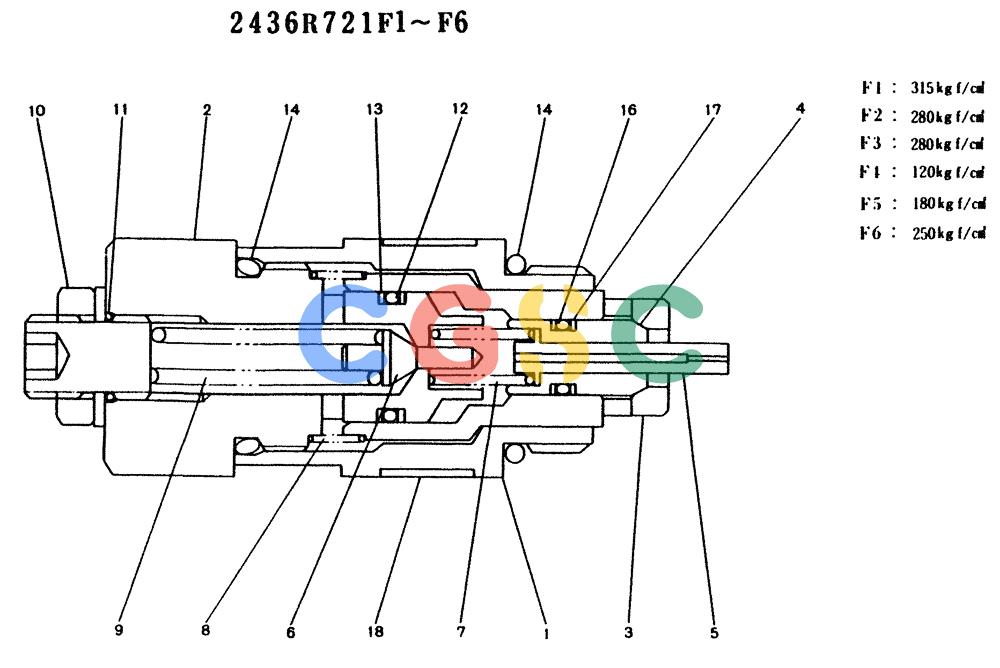

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-006) - VALVE ASSY, RELIEF, P/N 2436R721F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
245 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R721F1 | [1] | VALVE PRESSURE RELIE | KOBVALVE ASSY.RELIEF |
| . . | 2436R721F2 | [1] | VALVE PRESSURE RELIE | KOBVALVE ASSY.RELIEF |
| . . | 2436R721F3 | [1] | HYDRAULIC VALVE | KOBVALVE ASSY.RELIEF |
| . . | 2436R721F4 | [1] | VALVE PRESSURE RELIE | KOBVALVE ASSY.RELIEF |
| . . | 2436R721F5 | [1] | VALVE ASSY.RELIEF | |
| . . | 2436R721F6 | [1] | VALVE ASSY.RELIEF | |
| 1. | 2436R721S1 | [1] | CAP(F1-F6 ONLY) | |
| 2. | 2436R721S2 | [1] | PLUG(F1-F6 ONLY) | |
| 3. | 2436R721S3 | [1] | POPPET(F1-F6 ONLY) | |
| 4. | 2436R721S4 | [1] | POPPET(F1-F6 ONLY) | |
| 5. | 2436R721S5 | [1] | PISTON(F1-F6 ONLY) | |
| 6. | 2436R721S6 | [1] | POPPET(F1-F6 ONLY) | |
| 7. | 2436R721S7 | [1] | (F1-F6 ONLY) | |
| 8. | 2436R721S8 | [1] | (F1-F6 ONLY) | |
| 9. | 2436R1173S3 | [1] | SPRING | KOB(F1-F6 ONLY) |
| 10. | 2436R1094S17 | [1] | ADJUSTER(F1-F6 ONLY) | |
| 11. | 2436U1027S212 | [1] | O-RING | KOB(F1-F6 ONLY) Superseded by part number: ZD12P01000 |
| 12. | 2436R1095S4 | [1] | O-RING | KOB(F1-F6 ONLY) |
| 13. | 2436R721S13 | [2] | BACK-UP RING | KOB(F1-F6 ONLY) |
| 14. | 2445Z708 | [2] | REPAIR KIT | KOB(F1-F6 ONLY) Superseded by part number: 2445Z708F1 |
| 16. | 2436R378S13 | [1] | O-RING | KOB(F1-F6 ONLY) |
| 17. | 2436R378S14 | [2] | BACK-UP RING | KOB(F1-F6 ONLY) |
| 18. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE(F1-F6 ONLY) |
