神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-013) - SPOOL ASSY, P/N 2436R805F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
490 次

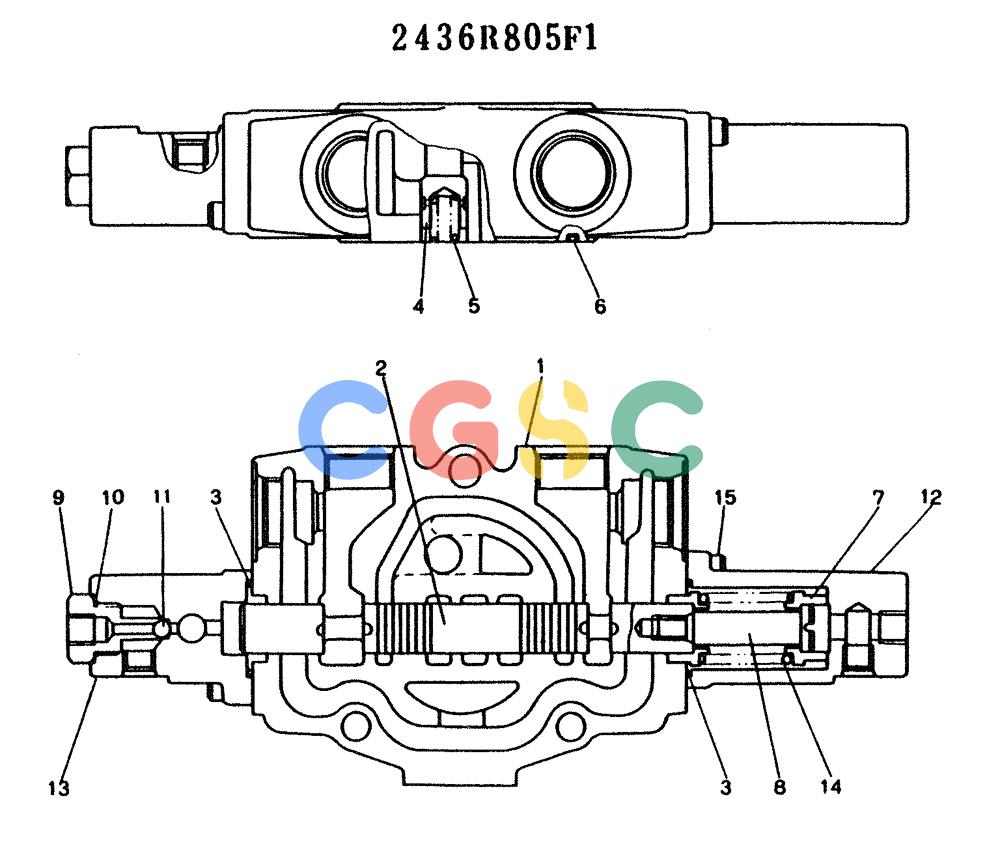

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R805F1 | [1] | SPOOL ASSY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | B36K0019E260 | [2] | O-RING | KOB |
| 4. | B36K0019E227 | [1] | POPPET | KOB |
| 5. | B36K0019E226 | [1] | SPRING | KOB |
| 6. | B36K0019E212 | [1] | O-RING | KOB |
| 7. | 2436R805S7 | [2] | SEAT,SPRING | |
| 8. | 2436R805S8 | [1] | CAPSCREW | |
| 9. | 2436R805S9 | [1] | PLUG | |
| 10. | 2436U388S5 | [1] | O-RING | KOB |
| 11. | 2436U281S37 | [1] | BALL | KOB |
| 12. | 2436R805S12 | [1] | CAP | CAP |
| 13. | 2436R805S13 | [1] | CAP | CAP |
| 14. | 2436R805S14 | [1] | SPRING | |
| 15. | ZS23C06022 | [4] | CAPSCREW,Hex Socket Head, M6 x 22mm | KOBSCREW M06x1.0x22mm |
