神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-020) - VALVE ASSY, PILOT , P/N 2436U1142F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
173 次

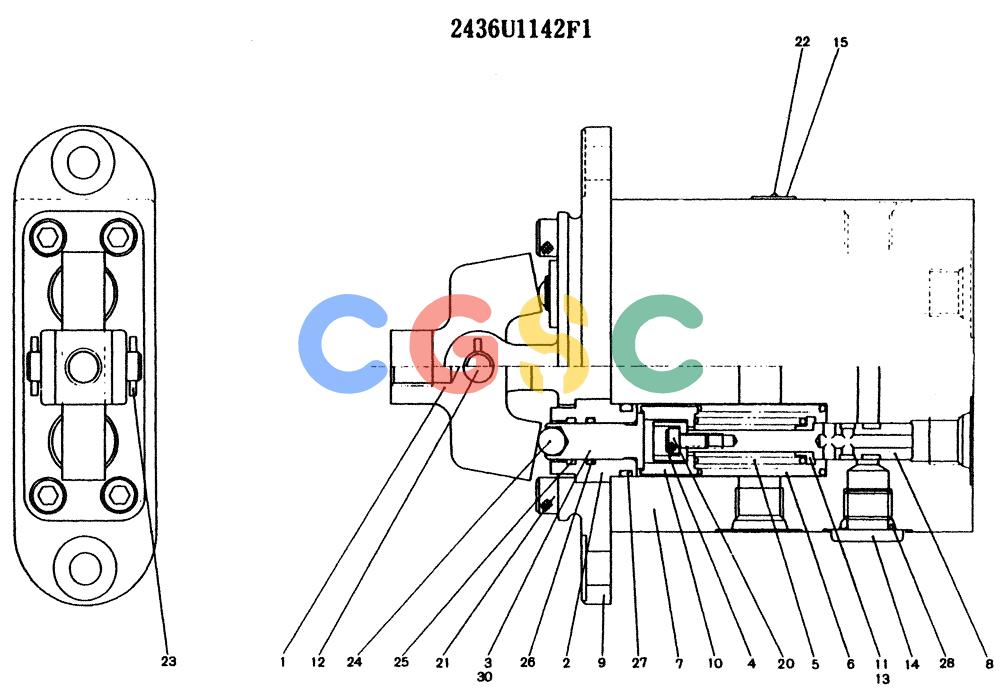

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1142F1 | [1] | PILOT VALVE | KOB |
| 1. | 2436U1142S1 | [1] | CAM | KOB |
| 2. | 2436U1142S2 | [2] | SOCKET | KOB |
| 3. | NSS | [2] | NOT SOLD SEPARAT | CONPLUNGER |
| 4. | 2436U1142S4 | [2] | STOP | KOB |
| 5. | 2436U1142S5 | [2] | SPRING | KOB |
| 6. | 2436U1142S6 | [2] | SPRING | KOB |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 8. | NSS | [2] | NOT SOLD SEPARAT | CONSPOOL |
| 9. | 2436U1142S9 | [1] | COVER | KOB |
| 10. | 2436U1142S10 | [2] | SLEEVE | KOB |
| 11. | 2436U1142S11 | [2] | HOLDER | KOB |
| 12. | 2436U1142S12 | [1] | PIN | KOB |
| 13. | 2436U1142S13 | [1] | SHIM | KOB |
| 14. | 2436U1142S14 | [1] | PLUG | |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 20. | 2436C1487S29 | [2] | CAPSCREW | |
| 21. | ZS23C06025 | [4] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 22. | 2436U1487S35 | [2] | RIVET | KOB |
| 23. | ZP26K02016 | [2] | ROLL PIN | KOB |
| 24. | NSS | [2] | NOT SOLD SEPARAT | CONBALL |
| 25. | 2436U1142S25 | [2] | SCRAPER | KOB |
| 26. | ZD11P01000 | [2] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 27. | ZD11P01600 | [2] | O-RING | KOBID 15.80 ± 0.20 x OD 20.6mm |
| 28. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
