神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (11-021) - VALVE ASSY, PILOT, P/N 2436U1200F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
924 次

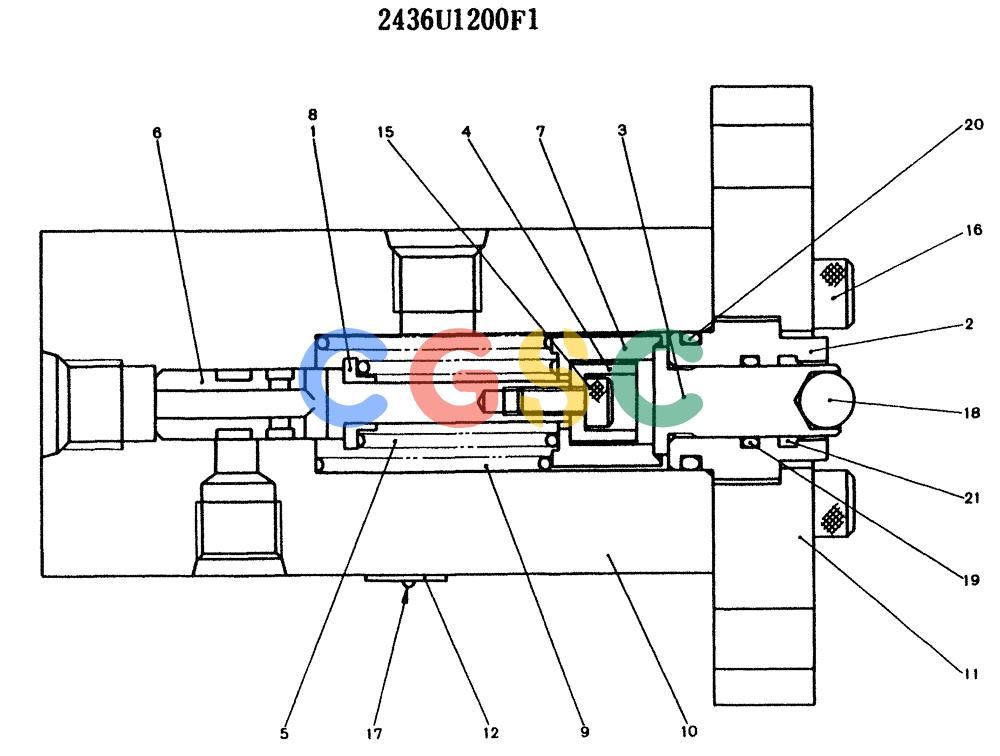

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1200F1 | [1] | VALVE, PILOT | VALVE, PILOT |
| 1. | 2436U1142S13 | [1] | SHIM | KOB |
| 2. | 2436U1142S2 | [1] | SOCKET | KOB |
| 3. | 2436U1200S3 | [1] | PLUNGER | KOB |
| 4. | 2436U1142S4 | [1] | STOP | KOB |
| 5. | 2436U1142S5 | [1] | SPRING | KOB |
| 6. | 2436U1200S6 | [1] | SPOOL | KOB |
| 7. | 2436U1142S10 | [1] | SLEEVE | KOB |
| 8. | 2436U1142S11 | [1] | HOLDER | KOB |
| 9. | 2436U1488S26 | [1] | SPRING | KOB |
| 10. | 2436U1200S10 | [1] | HOUSING | |
| 11. | 2436U1200S11 | [1] | COVER | KOB |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 15. | 2436U1487S29 | [1] | SCREW | KOB Superseded by part number: ZS23C04008 |
| 16. | ZS23C06025 | [4] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 17. | 2436U1200S17 | [2] | SCREW | |
| 18. | 2436U1200S18 | [1] | BALL | |
| 19. | ZD11P01000 | [1] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 20. | ZD11P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20.6mm |
| 21. | 2436U1142S25 | [1] | SCRAPER | KOB |
| K. | 2436U1200R100 | [1] | REPAIR KIT | KOBCONTAINS ITEMS 6 &10 |
| K. | 2436U1142R100 | [1] | REPAIR KIT | KOBCONTAINS ITEMS 3 &18 |
