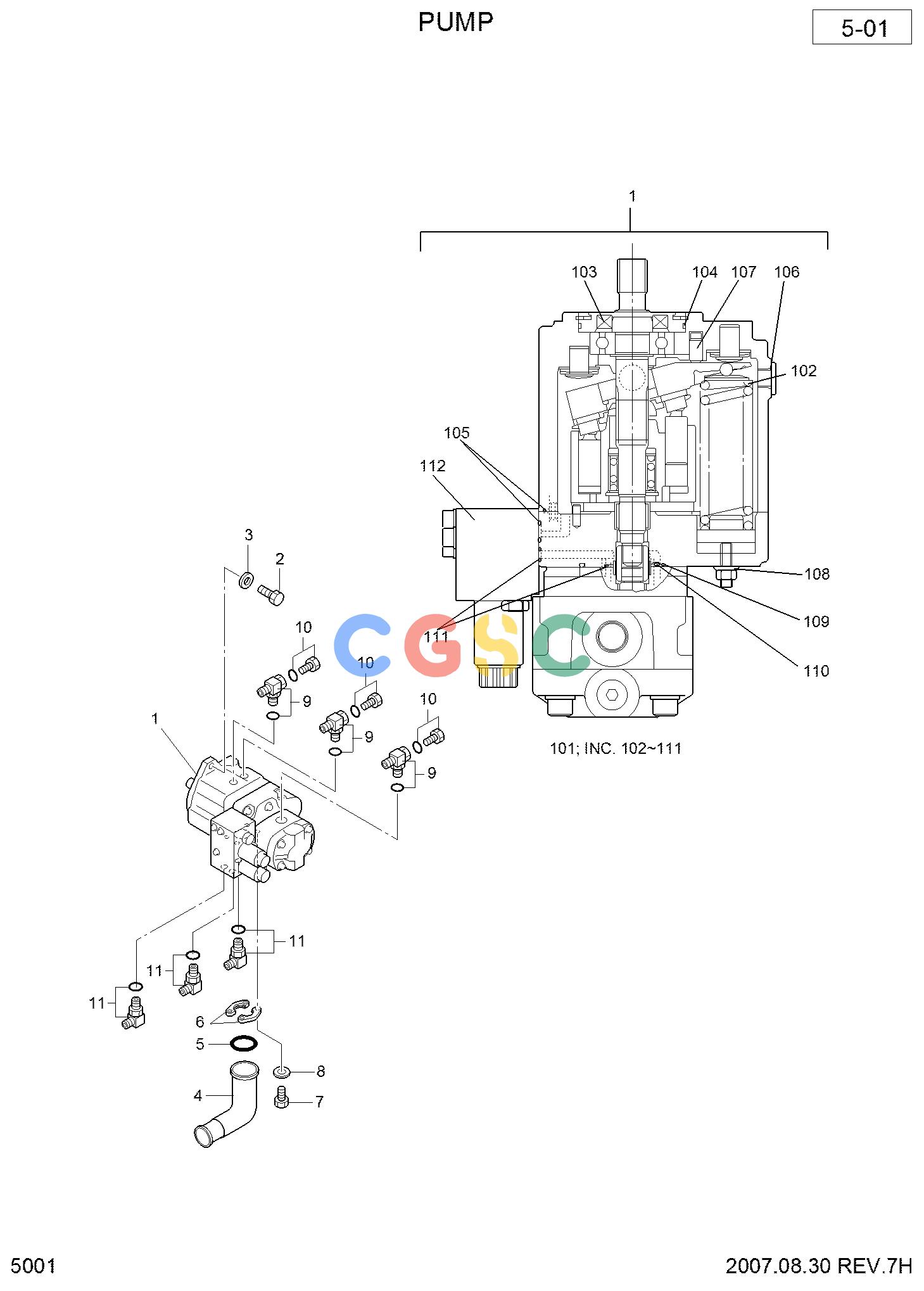

现代零件查询R36N-7 PUMPEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
162 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03717
|
[1] |
PUMP
|
|
| 101. |
XJDH-03342
|
[1] |
PACKING ASSY
|
|
| 102. |
XJDH-03343
|
[1] |
PACKING
|
|
| 103. |
XJDH-03344
|
[1] |
SEAL-OIL
|
|
| 104. |
XJDH-00352
|
[1] |
O-RING
|
|
| 105. |
XJDH-03345
|
[3] |
O-RING
|
|
| 106. |
XJDH-00328
|
[1] |
O-RING
|
|
| 107. |
XJDH-00328
|
[1] |
O-RING
|
|
| 108. |
XJDH-03346
|
[1] |
WASHER-SEAL
|
|
| 109. |
XJDH-02917
|
[1] |
O-RING
|
|
| 110. |
XJDH-03347
|
[1] |
O-RING
|
|
| 111. |
XJDH-02918
|
[2] |
O-RING
|
|
| 112. |
XJDH-03375
|
[1] |
VALVE ASSY
|
|
| 2. |
XJDH-00071
|
[2] |
BOLT
|
|
| 3. |
XJDH-00280
|
[2] |
WASHER
|
|
| 4. |
XJDH-01959
|
[1] |
PIPE ASSY
|
|
| 5. |
XJDH-00342
|
[1] |
O-RING
|
|
| 6. |
XJDH-00508
|
[2] |
FLANGE-HALF
|
|
| 7. |
XJDH-00129
|
[4] |
BOLT
|
|
| 8. |
XJDH-00278
|
[4] |
WASHER
|
|
| 9. |
XJDH-00977
|
[3] |
TEE
|
|
| 10. |
XJDH-00386
|
[3] |
PLUG
|
|
| 11. |
XJDH-00462
|
[3] |
ELBOW-MALE 45
|
|
