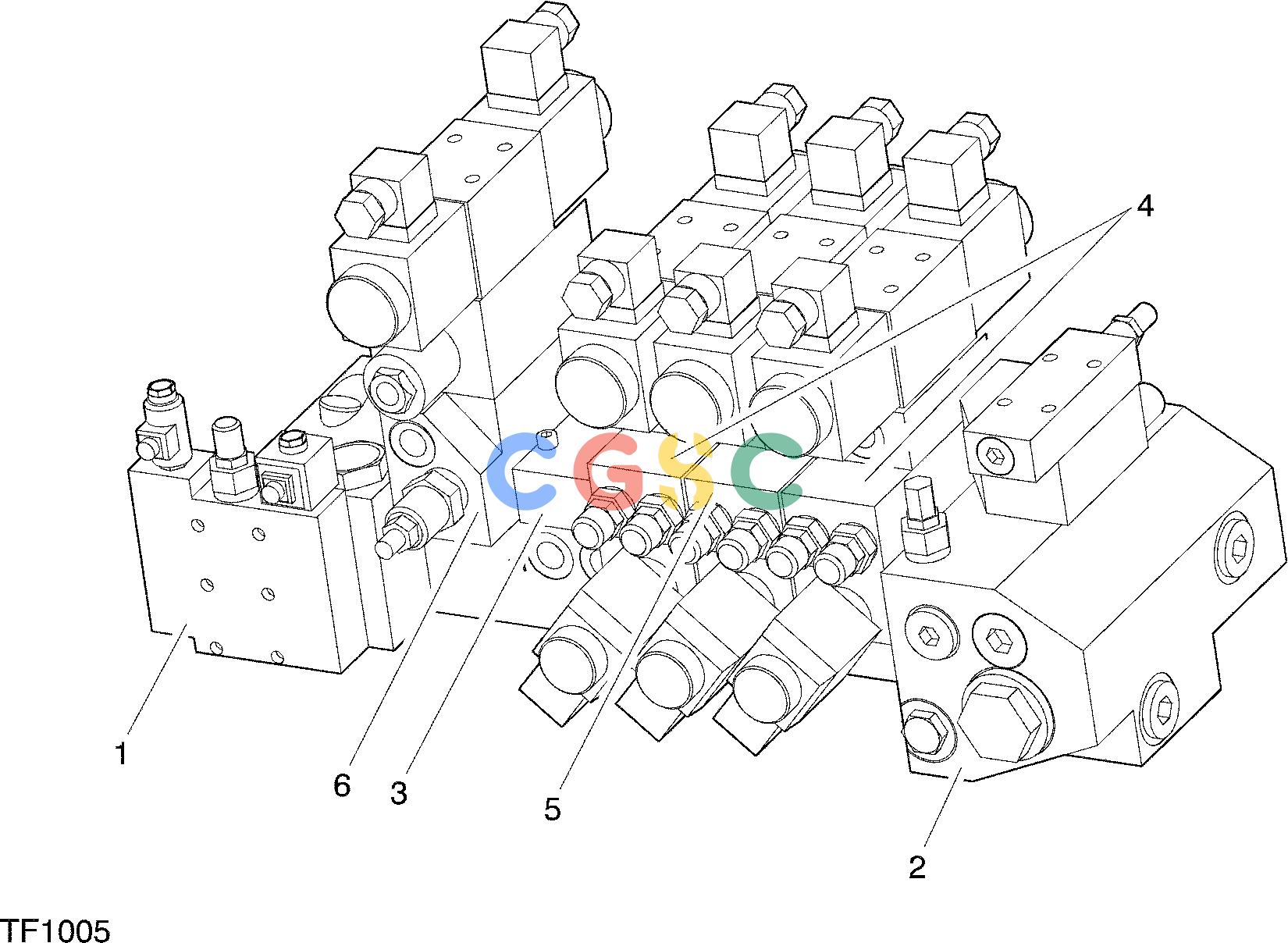

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE VALVE BLOCK F048249 11 12 TF1005 [TF1005]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F046451
|
[1] |
HYDRAULIC VALVE
|
|
| |
F054659
|
[1] |
HYDRAULIC VALVE
|
|
| |
F056687
|
[1] |
HYDRAULIC VALVE
|
|
| 1. |
F047624
|
[1] |
VALVE BLOCK SECTION
|
|
| 1. |
F049327
|
[1] |
VALVE BLOCK SECTION
|
|
| 2. |
F047625
|
[1] |
VALVE BLOCK SECTION
|
|
| 3. |
F047626
|
[1] |
VALVE BLOCK SECTION
|
|
| 4. |
F047627
|
[2] |
VALVE BLOCK SECTION
|
|
| 4. |
F028405
|
[2] |
VALVE BLOCK SECTION
|
|
| 5. |
F047628
|
[1] |
VALVE BLOCK SECTION
|
|
| 5. |
F028406
|
[1] |
VALVE BLOCK SECTION
|
|
| 6. |
F047629
|
[1] |
VALVE BLOCK SECTION
|
|
| 6. |
F054949
|
[1] |
VALVE BLOCK SECTION
|
|
| 6. |
F054218
|
[1] |
VALVE BLOCK SECTION
|
|
