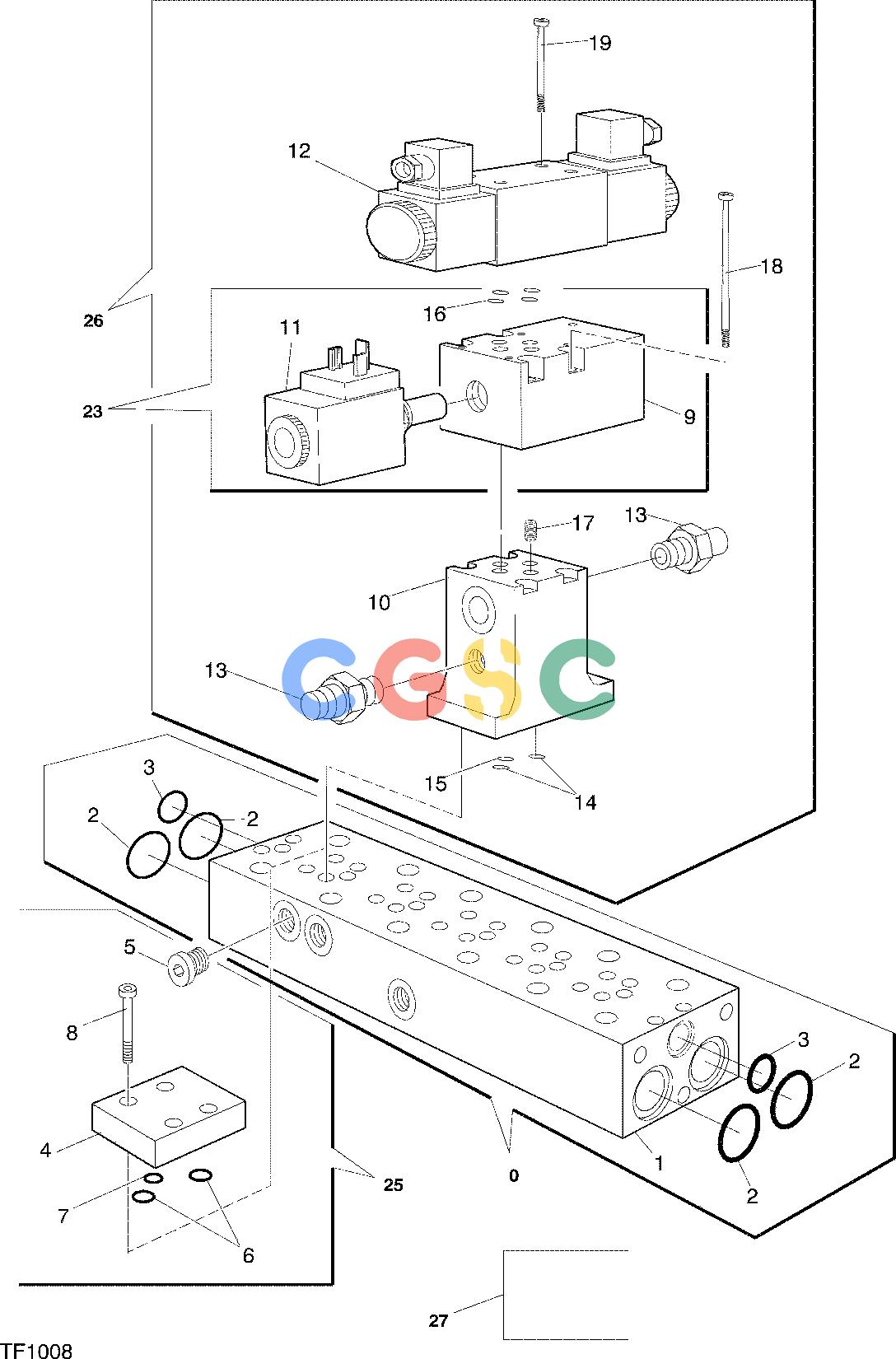

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE BLOCK F048249 11 18 TF1008-2 [TF1008-2]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
660 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F047626
|
[1] |
BLOCK
|
|
| 1. |
F048335
|
[1] |
Manifold
|
|
| 2. |
F008449
|
[4] |
O-Ring
|
|
| 3. |
F018768
|
[2] |
O-Ring
|
|
| |
F028408
|
[1] |
COVER PLATE
|
|
| 4. |
F018112
|
[2] |
Plug
|
|
| 5. |
F018778
|
[1] |
FLAT PIECE
|
|
| 6. |
F018771
|
[2] |
O-Ring
|
|
| 7. |
F003285
|
[1] |
O-Ring
|
|
| 8. |
F010828
|
[4] |
Screw
|
|
| |
F048973
|
[1] |
BLOCK
|
|
| 9. |
F043609
|
[1] |
Manifold
|
|
| 10. |
F018779
|
[1] |
VALVE BLOCK
|
|
| 11. |
F035766
|
[1] |
Valve
|
|
| 11.1. |
F054746
|
[1] |
Seal Kit
|
|
| 12. |
F005566
|
[1] |
Solenoid Valve
|
|
| 12. |
F054655
|
[1] |
Control Valve
|
|
| 12. |
F011349
|
[1] |
Solenoid Valve
|
|
| 13. |
F018781
|
[2] |
Relief Valve
|
|
| 14. |
F018771
|
[2] |
O-Ring
|
|
| 15. |
F003285
|
[1] |
O-Ring
|
|
| 16. |
F003286
|
[4] |
O-Ring
|
|
| 17. |
F031278
|
[1] |
THROTTLE SCREW
|
|
| 18. |
F032093
|
[4] |
Screw
|
|
| 19. |
F010685
|
[4] |
Screw
|
|
| |
F018367
|
[1] |
BLOCK
|
|
| |
F013057
|
[4] |
Screw
|
|
| |
F008644
|
[4] |
Screw
|
|
| |
F031737
|
[1] |
Valve
|
|
| |
F035767
|
[4] |
Screw
|
|
