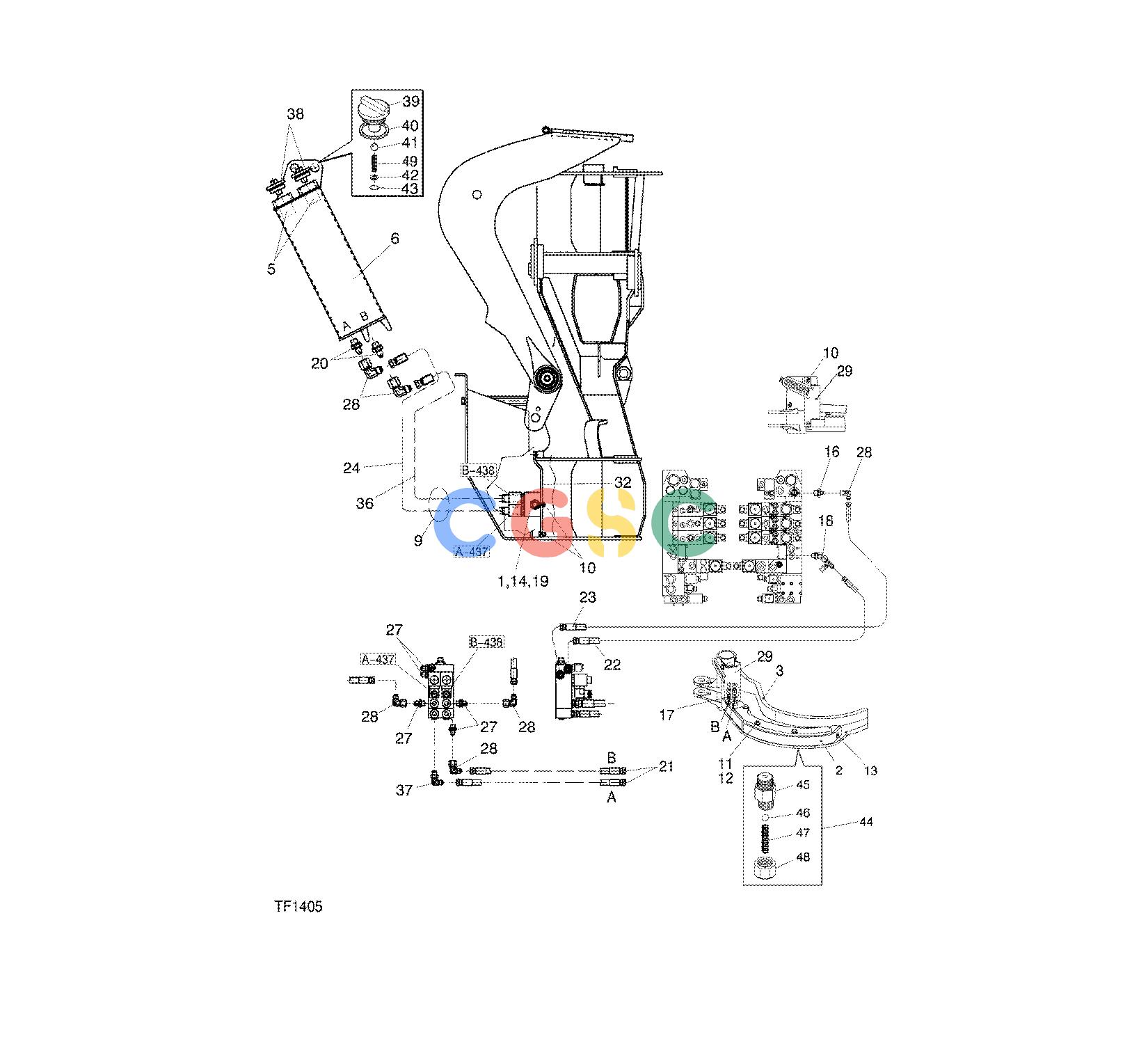

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE F048249 11 64.1 TF1405 [TF1405]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
855 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F602327
|
[1] |
PAINT MARKING DEVICE
|
|
| 1. |
F046538
|
[1] |
PAINT MARKING PUMP
|
|
| 2. |
F019175
|
[1] |
Cover
|
|
| 3. |
F052455
|
[1] |
DELIMBING TOOL
|
|
| 5. |
F014081
|
[2] |
Filter
|
|
| 6. |
F601992
|
[1] |
Tank
|
|
| 9. |
F005334
|
[2] |
Binder
|
|
| 10. |
F003523
|
[6] |
Screw
|
|
| 11. |
F003531
|
[3] |
Screw
|
|
| 12. |
F005551
|
[3] |
Lock Washer
|
|
| 13. |
F005492
|
[1] |
Screw
|
|
| 14. |
F021365
|
[1] |
CABLE HARNESS
|
|
| 16. |
F005056
|
[1] |
NIPPLE
|
|
| 17. |
F031740
|
[2] |
NIPPLE
|
|
| 18. |
-------
|
[1] |
NIPPLE
|
|
| 19. |
F603116
|
[1] |
CABLE HARNESS
|
|
| 20. |
F005055
|
[2] |
NIPPLE
|
|
| 21. |
F043919
|
[2] |
HOSE-ASSY
|
|
| 22. |
F051620
|
[1] |
HOSE-ASSY
|
|
| 23. |
F051580
|
[1] |
HOSE-ASSY
|
|
| 24. |
F046499
|
[1] |
HOSE-ASSY
|
|
| 27. |
F005057
|
[5] |
NIPPLE
|
|
| 28. |
F022417
|
[6] |
ELBOW NIPPLE
|
|
| 29. |
F025634
|
[1] |
PROTECTION
|
|
| 32. |
F600375
|
[1] |
FASTENING
|
|
| 36. |
F048983
|
[1] |
HOSE-ASSY
|
|
| 37. |
F024599
|
[1] |
ELBOW NIPPLE
|
|
| 38. |
F021332
|
[2] |
REFILLING COVER
|
|
| 39. |
F021333
|
[1] |
Cap
|
|
| 40. |
F022656
|
[1] |
Seal
|
|
| 41. |
F012623
|
[1] |
STEEL BALL
|
|
| 42. |
F010721
|
[1] |
Washer
|
|
| 43. |
F012625
|
[1] |
CIRCLIP
|
|
| 44. |
F604190
|
[6] |
NOZZLE ASSY
|
|
| 45. |
F604191
|
[1] |
Housing
|
|
| 46. |
F013607
|
[1] |
STEEL BALL
|
|
| 47. |
F056380
|
[1] |
Spring
|
|
| 48. |
F045206
|
[1] |
Nozzle
|
|
| 49. |
F012624
|
[1] |
Spring
|
|
