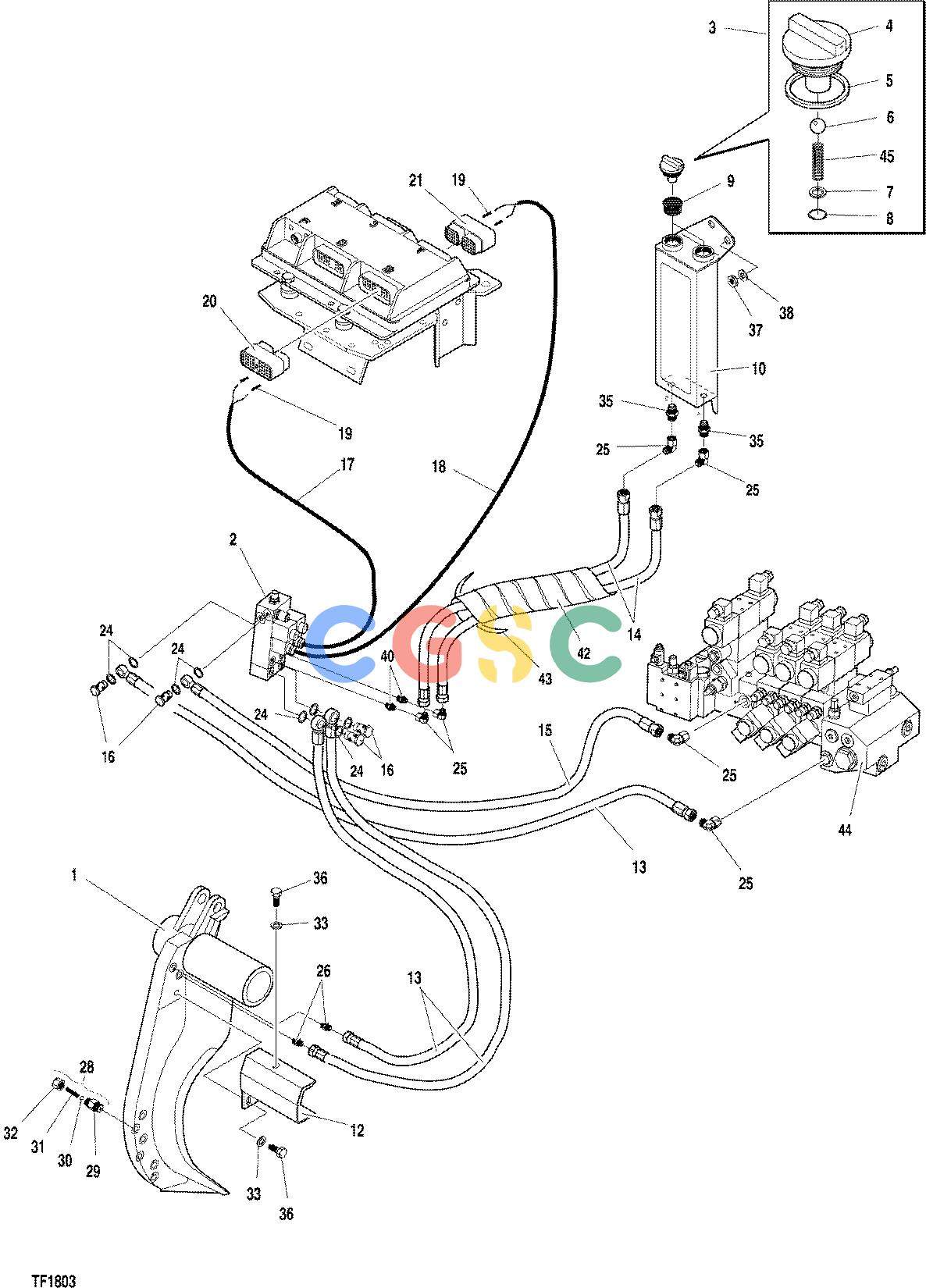

约翰迪尔零件查询746C ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE F048249 11 64.2 TF1803 [TF1803]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F603367
|
[1] |
DELIMBING TOOL
|
|
| 2. |
F046538
|
[1] |
PAINT MARKING PUMP
|
|
| 3. |
F021332
|
[2] |
REFILLING COVER
|
|
| 4. |
F021333
|
[1] |
Cap
|
|
| 5. |
F022656
|
[1] |
Seal
|
|
| 6. |
F012623
|
[1] |
Ball
|
|
| 7. |
F010721
|
[1] |
Washer
|
|
| 8. |
F012625
|
[1] |
CIRCLIP
|
|
| 9. |
F014081
|
[2] |
Filter
|
|
| 10. |
F601992
|
[1] |
Tank
|
|
| 12. |
F031200
|
[1] |
HOSE PROTECTION
|
|
| 13. |
F056705
|
[3] |
HOSE-ASSY
|
|
| 14. |
F049013
|
[2] |
HOSE-ASSY
|
|
| 15. |
F056704
|
[1] |
HOSE-ASSY
|
|
| 16. |
F012789
|
[4] |
BANJO SCREW
|
|
| 17. |
F604481
|
[1] |
Cable
|
|
| 18. |
F604479
|
[1] |
Cable
|
|
| |
F021365
|
[1] |
Cable
|
|
| 19. |
F055290
|
[4] |
Connector
|
|
| 20. |
F055285
|
[1] |
Connector
|
|
| 21. |
F055284
|
[1] |
Connector
|
|
| 24. |
F005164
|
[8] |
SEAL RING
|
|
| 25. |
F022417
|
[6] |
ELBOW NIPPLE
|
|
| 26. |
F031740
|
[2] |
NIPPLE
|
|
| 28. |
F604190
|
[6] |
NOZZLE ASSY
|
|
| 29. |
F604191
|
[1] |
Housing
|
|
| 30. |
F013607
|
[1] |
STEEL BALL
|
|
| 31. |
F056380
|
[1] |
Spring
|
|
| 32. |
F045206
|
[1] |
Nozzle
|
|
| 33. |
F005551
|
[4] |
Lock Washer
|
|
| 35. |
F005055
|
[2] |
NIPPLE
|
|
| 36. |
F008445
|
[5] |
Screw
|
|
| 37. |
F019245
|
[1] |
Lock Nut
|
|
| 38. |
F007748
|
[1] |
Washer
|
|
| 39. |
F022417
|
[6] |
ELBOW NIPPLE
|
|
| 40. |
F005057
|
[2] |
NIPPLE
|
|
| 42. |
F031276
|
[1] |
PROTECTION SPIRAL
|
|
| 43. |
F005334
|
[1] |
Band
|
|
| 44. |
-------
|
[1] |
VALVE BLOCK
|
|
| 45. |
F012624
|
[1] |
Spring
|
|
