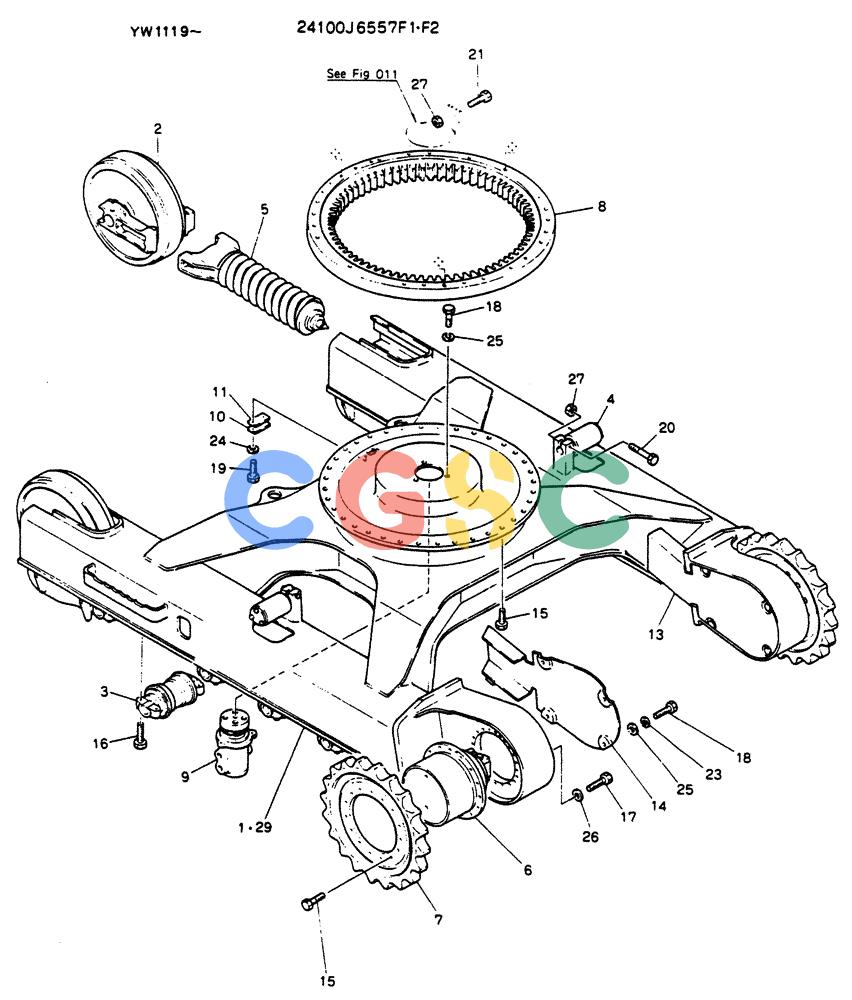

神钢零件查询(K904) - MARK II EXCAVATOR ASN YW1119 (1/88-12/03) (06-001) - INSTAL, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
866 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6557F1 | [1] | INSTSL,LOW | |
| . . | 24100J6557F2 | [1] | INSTAL LOW | |
| 1. | 2422J1847 | [1] | | |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONIDLER ASSY(SEE FIG:06-005) |
| 3. | NSS | [12] | NOT SOLD SEPARAT | CONROLLER,LOWSEE FIG:06-005) |
| 4. | NSS | [2] | NOT SOLD SEPARAT | CONROLLER,UPPER(SEE FIG:06-005) |
| 5. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING ASSY,TRACK(SEE FIG:06-009) |
| 6. | 2441U753F1 | [2] | HYDRAULIC MOTOR | KOB Superseded by part number: 2441U753F3 |
| 7. | 2404N254 | [2] | SPROCKET, Serial Range: YW1119-YW2392 | SPROCKET, Serial Range: YW1119-YW2392 |
| 7. | 2404N271 | [2] | SPROCKET,21 T, 324mm ID x 601mm OD | KOB, Start Serial: YW2393 |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 9. | 24100J5144F4 | [1] | FLEXIBLE JOINT | KOB Superseded by part number: 24100U1524F1 |
| 10. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| 11. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| 13. | 2414N3937D1 | [1] | COVER | |
| 14. | 2414N3937D2 | [1] | COVER | |
| 15. | ZS13C16045 | [66] | SCREW | KOBScrew -- M16x2.0x45mm |
| 16. | ZS13C16065 | [48] | SCREW | KOBM16x2.0x65mm |
| 17. | ZS13C16050 | [40] | SCREW | KOBM16x2.0x50mm |
| 18. | ZS13C12025 | [13] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 19. | ZS13C10016 | [2] | SCREW | KOBM10x1.50x16mm Superseded by part number: ZS18C10016 |
| 20. | ZS13C16090 | [2] | CAPSCREW | KOBSCREW M16x2.0x90mm |
| 21. | ZS13C16110 | [1] | SCREW | KOBM16x2.0x110mm |
| 23. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 24. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 25. | ZW11X12000 | [13] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 26. | ZW13H16000 | [40] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 27. | ZN12C16013 | [3] | NUT | KOBM16x2.0mm |
| 29. | 2422J2488 | [1] | FRAME,LOW | |
