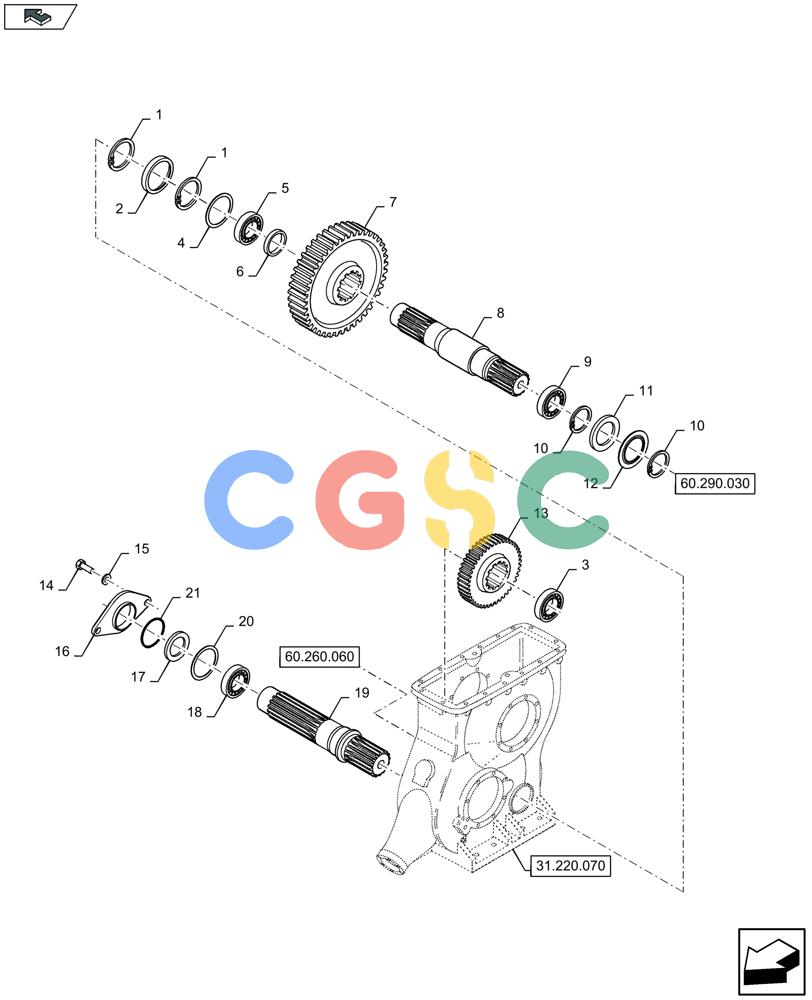

凯斯零件查询(LB424S XL) - BALER (11/16-) (31.220.090) - MAIN GEARBOX, SHAFT SHUTTLE FEEDER GEARBOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
370021
|
[2] |
SNAP RING,M85 x 3mm Thk, Internal
|
NH
|
| 2. |
84346546
|
[1] |
SEAL
|
ZED
Superseded by part number: 84074481
|
| 3. |
330071
|
[1] |
BALL BEARING,44.99mm ID x 85mm OD x 23mm W
|
ZED
|
| 4. |
84074468
|
[1] |
SET OF RINGS
|
ZED
|
| 5. |
20972850
|
[1] |
BALL BEARING,45 mm ID x 85 mm OD x 19 mm
|
ZED
Superseded by part number: ST202
|
| 6. |
84074456
|
[1] |
SPACER
|
ZED
|
| 7. |
84346517
|
[1] |
GEAR
|
ZED
|
| 8. |
84074450
|
[1] |
SHAFT
|
ZED
|
| 9. |
9825886
|
[1] |
BALL BEARING,55 mm ID x 90 mm OD x 18 mm
|
MOD
Superseded by part number: 87591494
|
| 10. |
370013
|
[2] |
SNAP RING,M90 x 3mm Thk, Internal
|
NH
|
| 11. |
9839405
|
[1] |
SEAL
|
ZED
Superseded by part number: 920018133
|
| 12. |
84074476
|
[1] |
PLATE
|
ZED
|
| 13. |
84346515
|
[1] |
GEAR
|
ZED
|
| 14. |
87342014
|
[2] |
BOLT,M12 x 1.75 x 35mm, Class 10.9
|
BN
|
| 15. |
412123
|
[2] |
LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk
|
NH
|
| 16. |
47360998
|
[1] |
FLANGE
|
ZED
|
| 17. |
84346537
|
[1] |
SEALING RING
|
ZED
SEALRING
|
| 18. |
84346534
|
[1] |
BEARING,52mm ID x 90mm OD x 33mm W
|
ZED
|
| 19. |
84346519
|
[1] |
SHAFT
|
ZED
|
| 20. |
84346532
|
[1] |
SHIM
|
ZED
|
| 21. |
84346538
|
[1] |
O-RING,3.53mm Thk x 82.16mm ID
|
ZED
|
