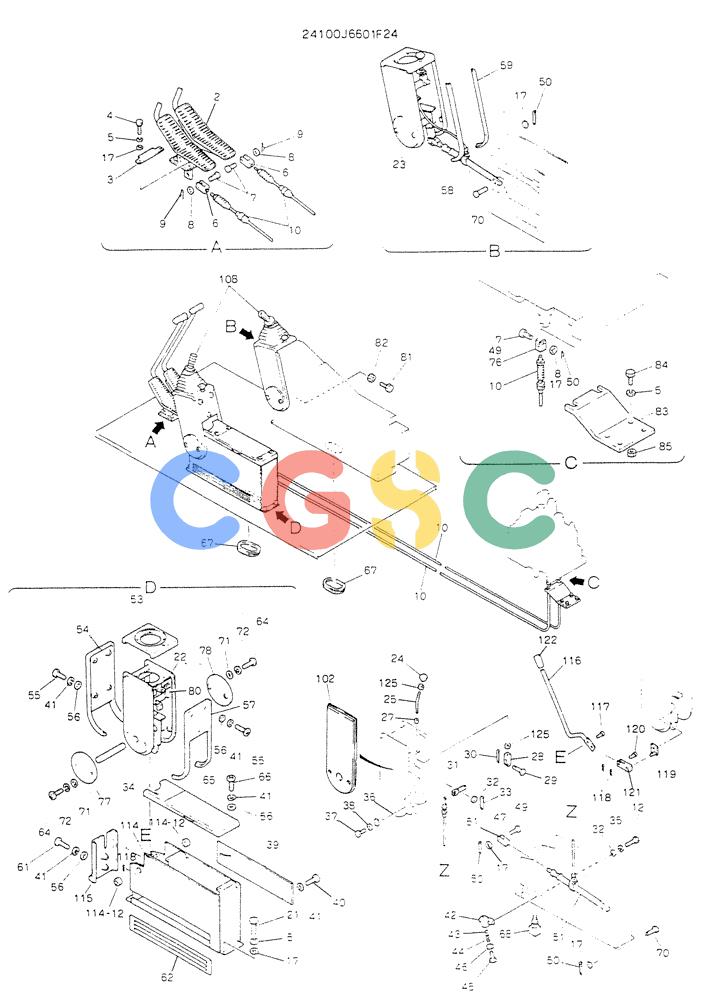

神钢零件查询(K904L) - MARK II EXCAVATOR BTW LX1501 - LX1525 (1/88-12/03) (03-001) - CONTROL ASSY, 24100J6601F24 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
640 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6601F24 | [1] | CONTROL ASSY | |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONLEVER ASSY, CONTROL, SEE FIG. 03-003 |
| 3. | 2406T1702 | [2] | PLATE | KOB |
| 4. | ZS18C10035 | [4] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 5. | ZW26X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 6. | 2406T1672 | [2] | YOKE | KOB Superseded by part number: 2406T2278 |
| 7. | 2419T3784D1 | [2] | PIN | KOB |
| 8. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9. | 2419R9D4 | [2] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 10. | 2406R223D10 | [2] | WIRE HARNESS | KOBCABLE, CONTROL |
| 12. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 17. | ZW16X10000 | [13] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 21. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 22. | 2421N188D2 | [1] | BOX, CONTROL | BOX, CONTROL |
| 23. | 2421N188D1 | [1] | BOX, CONTROL | BOX, CONTROL |
| 24. | 2406Z361 | [2] | KNOB | KNOB |
| 25. | 2406T1748 | [2] | LEVER | KOB |
| 27. | ZX15K06004 | [4] | TUBE | KOB |
| 28. | R06T0042D2 | [2] | END | KOB |
| 29. | 2419T3314 | [2] | PIN | KOB |
| 30. | ZP15K01610 | [2] | COTTER PIN | KOBSPLIT PIN Superseded by part number: ZP15K01615 |
| 31. | 2406T1747 | [2] | LEVER | KOB |
| 32. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 33. | ZP15K02012 | [2] | COTTER PIN | KOBSPLIT PIN Superseded by part number: ZP15K02035 |
| 34. | 2419T4776 | [2] | SHAFT | KOB |
| 35. | ZW26K08000 | [2] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 36. | 2418T17873 | [1] | PLATE | KOB |
| 37. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 38. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 39. | 2414T2898 | [1] | COVER | KOB |
| 40. | 2420Z1227D2 | [4] | SCREW | KOBM06x1.0x10mm |
| 41. | 2418Z725D3 | [23] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 42. | 2416P8831 | [1] | HOLDER | KOB |
| 43. | 2425Z519 | [1] | BALL | KOB |
| 44. | 2417T519 | [1] | SPRING | KOB |
| 45. | ZS18C12025 | [1] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 46. | ZN18C12007 | [1] | NUT | KOBM12x1.75mm |
| 47. | 2406T2385 | [2] | YOKE | KOB |
| 49. | 2419T3841D1 | [2] | PIN | KOB |
| 50. | 2419R9D3 | [6] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 51. | 2421R169F1 | [2] | LOCK | KOBMECHANICAL |
| 53. | 2414P6019 | [2] | COVER | KOB |
| 54. | 2414P6022 | [2] | COVER | KOB |
| 55. | 2420Z1227D5 | [11] | SCREW | KOBM06x1.0x30mm |
| 56. | 2418Z725D3 | [19] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 57. | 2414P6021 | [1] | COVER | KOB |
| 58. | 2414P6020D1 | [1] | COVER | KOB |
| 59. | 2414P6020D2 | [1] | COVER | KOB |
| 60. | 2414P6023 | [1] | COVER | KOB |
| 61. | 2420Z1227D6 | [4] | SCREW | KOBM06x1.0x35mm |
| 62. | 2414P6013 | [1] | COVER | KOB |
| 64. | 2420Z1229D2 | [6] | SCREW | KOBMACHINE |
| 65. | 2414N3939 | [1] | COVER | KOB |
| 66. | 2420Z1227D4 | [4] | SCREW | KOBM06x1.0x20mm |
| 67. | 2420Z1188 | [2] | GROMMET | KOB |
| 68. | 2479Z1422 | [1] | LIMIT SWITCH | KOB |
| 70. | 2419T3841D2 | [2] | PIN | KOB |
| 71. | 2418Z725D4 | [6] | WASHER | KOBID 04 x OD 08.0 x Th 0.8mm |
| 72. | 2418Z726D4 | [6] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 76. | 2406T1806 | [2] | YOKE | KOB |
| 77. | 2414T2962 | [2] | COVER | KOB |
| 78. | 2414T2963 | [1] | COVER | KOB |
| 80. | 2427T921 | [1] | FOAM INSULATION | KOB |
| 81. | ZS18C08040 | [1] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 82. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 83. | 2418T18213 | [1] | PLATE | |
| 84. | ZS13C10040 | [4] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 85. | ZN13C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 102. | 2414P6345 | [2] | COVER | KOB |
| 108. | NSS | [1] | NOT SOLD SEPARAT | CONREMOTE-CONTROL ASSY, SEE FIG. 03-002-01 & 03-002-02 |
| 114. | 2416N3363D2 | [1] | STAND, CONTROL | STAND, CONTROL |
| 114-12. | 2405R61D11 | [2] | BUSHING | KOB |
| 115. | 2414P6378 | [1] | COVER | KOB |
| 116. | 2406T2825 | [1] | LEVER | KOB |
| 117. | 2419T3314D3 | [1] | SPARE PART | HIT Superseded by part number: ZP45X06022 |
| 118. | ZP15K01610 | [3] | COTTER PIN | KOBPIN, SPLIT Superseded by part number: ZP15K01615 |
| 119. | 2418T16654 | [1] | PLATE | KOB |
| 120. | 2419T3314D2 | [1] | PIN | KOB Superseded by part number: ZP45X06018 |
| 121. | 2406T2824 | [1] | YOKE | KOB |
| 122. | 2414Z270D1 | [1] | CAP | KOB |
| 125. | ZN18C06005 | [4] | NUT | KOBM06x1.0mm |
