神钢零件查询(K905) - EXCAVATOR BTW LP0004 - LP0554 (1/82-12/03) (03-005) - CONTROL ASSEMBLY, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
467 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

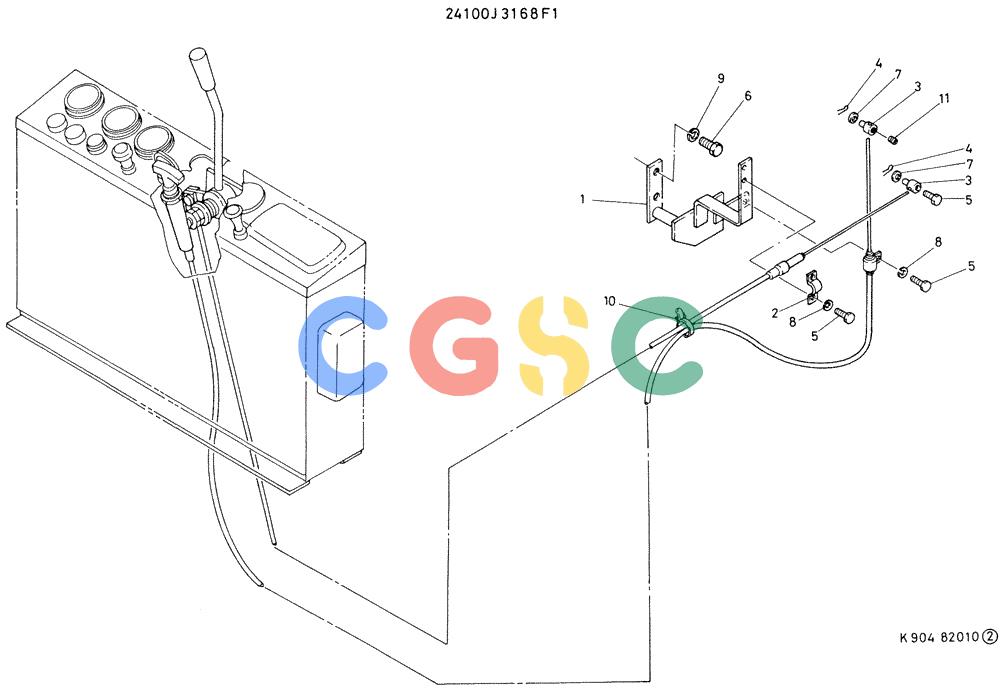

| . . | 24100J3168F1 | [1] | CONTROL ASSY, ENGINE, CONSISTS OF REF. 1 TO 11 | |
| 1. | 2416P4698 | [1] | BRACKET | BRACKET |
| 2. | R16T0403 | [1] | CLAMP | KOB |
| 3. | B06T0006 | [2] | LOCK | HIT |
| 4. | 2419R9D1 | [2] | COTTER PIN | KOBOD 06mm x 21.2mm Long |
| 5. | ZS16C06012 | [4] | SCREW | KOBM06x1.0x12mm |
| 6. | ZS11F10020 | [2] | CAPSCREW | |
| 7. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 8. | ZW26X06000 | [3] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 9. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 10. | 2432Z290 | [5] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 11. | ZS83C06008 | [1] | SCREW | KOB |
