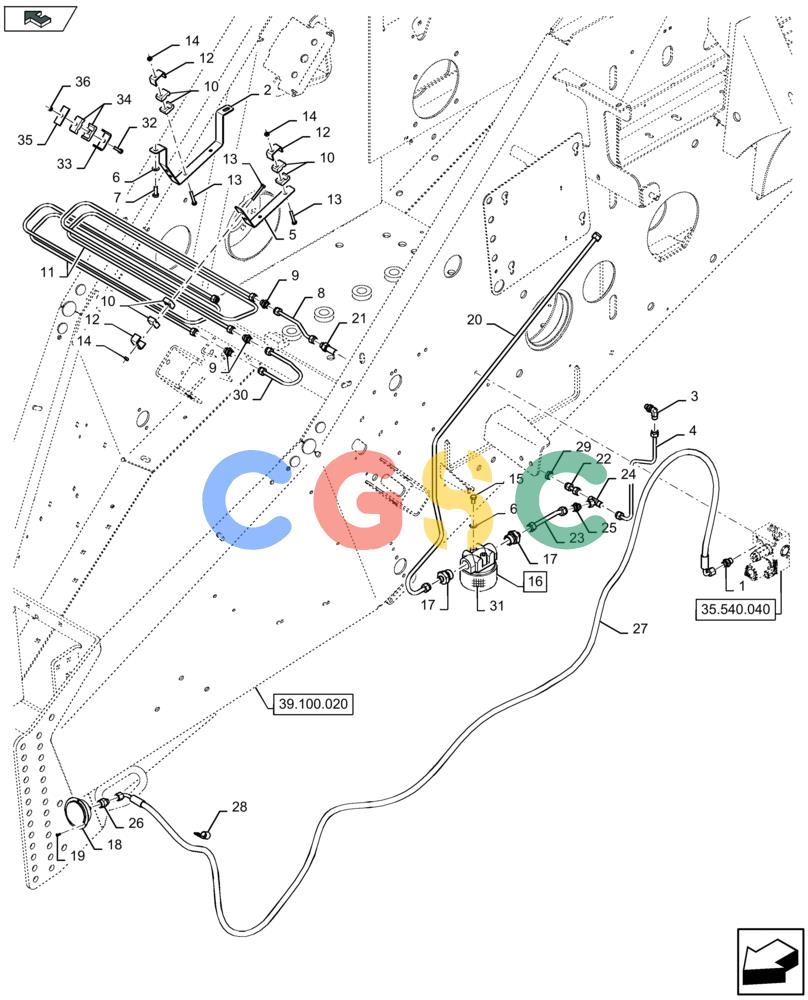

凯斯零件查询(LB424S XL) - BALER (11/16-) (35.540.051) - TENSION RAILS, OIL FILTER - D024 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
576 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84441294
|
[1] |
HYD CONNECTOR
|
ZED
|
| 2. |
84138829
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C084
|
| 3. |
84462237
|
[1] |
ELBOW
|
ZED
, Serial Range: -C089
|
| 3. |
47578127
|
[1] |
90 ELBOW
|
ZED
, Start Serial: D090
|
| 4. |
84542411
|
[1] |
HYD TUBE
|
ZED
|
| 5. |
84138831
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C084
|
| 6. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 7. |
43127
|
[1] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 8. |
47384923
|
[1] |
HYD TUBE
|
ZED
|
| 9. |
335172
|
[3] |
HYD CONNECTOR,M14 x 1.5 x M14 x 1.5
|
ZED
|
| 10. |
433008
|
[16] |
CLAMP
|
NH
|
| 11. |
47384925
|
[2] |
HYD TUBE
|
ZED
|
| 11. |
84412317
|
[2] |
HYD TUBE
|
ZED
|
| 12. |
433101
|
[8] |
SUPPORT
|
NH
|
| 13. |
86977790
|
[8] |
BOLT,Hex, M6 x 45mm, Cl 8.8
|
ZED
, Serial Range: -C089
|
| 13. |
86977789
|
[8] |
BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8
|
ZED
, Start Serial: D090
|
| 14. |
412152
|
[8] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 15. |
120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 16. |
84068686
|
[1] |
HYDRAULIC OIL FILTER
|
ZED
Incl 31
|
| 17. |
84064606
|
[2] |
HYD CONNECTOR
|
ZED
|
| 18. |
84801502
|
[1] |
MEASURING INSTRUMENT
|
ZED
|
| 19. |
130074
|
[3] |
RIVET
|
COE
Superseded by part number: 14641591
|
| 20. |
84595969
|
[1] |
HYD TUBE
|
ZED
|
| 21. |
84025707
|
[1] |
HYD CONNECTOR
|
PLO
, Serial Range: -C091
|
| 21. |
87479525
|
[1] |
FITTING
|
PLO
, Start Serial: D092
|
| 22. |
47384911
|
[1] |
HYD TUBE
|
ZED
|
| 23. |
84542415
|
[1] |
HYD TUBE
|
ZED
|
| 24. |
87734612
|
[1] |
HYD CONNECTOR
|
ZED
|
| 25. |
9509282
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 89509282
|
| 26. |
84064667
|
[1] |
HYD CONNECTOR
|
ZED
|
| 27. |
84554825
|
[1] |
HYD TUBE,6.35mm ID x 3100mm L, SAE 100R16
|
ZED
|
| 28. |
9706748
|
[1] |
CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 29. |
87493574
|
[1] |
NUT
|
ZED
|
| 30. |
47384921
|
[1] |
HYD TUBE
|
ZED
|
| 31. |
84078520
|
[1] |
HYDRAULIC OIL FILTER
|
ZED
|
| 33. |
431941
|
[2] |
SUPPORT
|
DUB
, Start Serial: D085
|
| 34. |
430357
|
[4] |
CLAMP
|
DUB
, Start Serial: D085
|
| 35. |
434097
|
[2] |
SUPPORT
|
DUB
, Start Serial: D085
|
