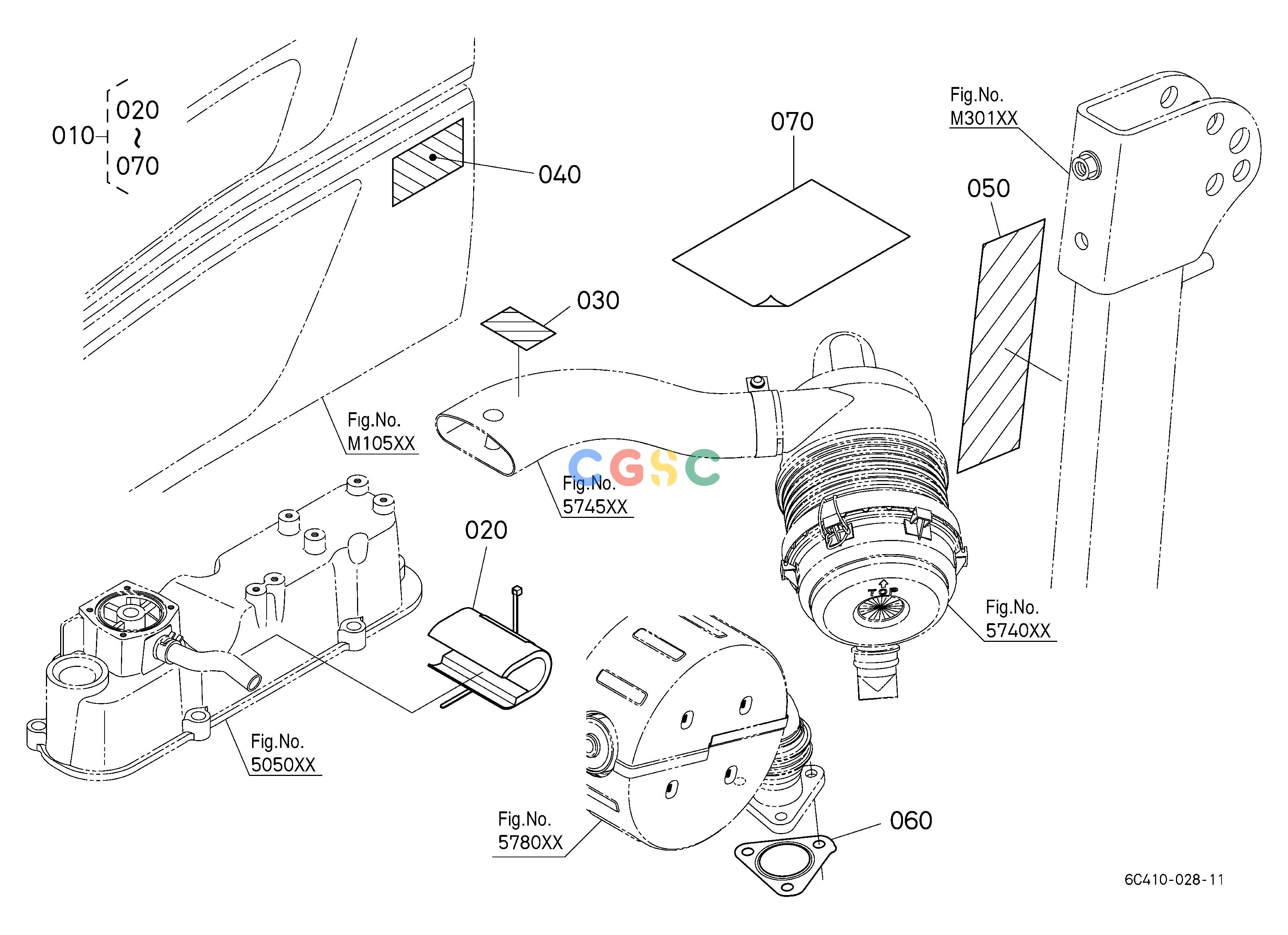

Pos.	Part No	Qty	Parts name	Comments
010.	6C43199800	[1]	INSULATION,KIT(KCL)	; <=71418 0.1320(lbs); 0.060
010.	6C43199802	[1]	INSULATION,KIT(KCL)	; >=71419 0.1320(lbs); 0.060
020.	1J08775880	[1]	INSULATION(TUBE)	0.0176(lbs); 0.008
030.	6C43049552	[1]	LABEL(HOSE,IMPORTANT)	ENGLISH; <=71550 0.0022(lbs); 0.001
030.	6C43049553	[1]	LABEL(HOSE,IMPORTANT)	ENGLISH; >=71551 0.0022(lbs); 0.001
030.	6C43149552	[1]	LABEL(HOSE,IMPORTANT,FR)	FRENCH 0.0022(lbs); 0.001
040.	6C43049570	[1]	LABEL(CLEANER,IMPORTANT)	ENGLISH; <=71550 0.0022(lbs); 0.001
040.	6C43049572	[1]	LABEL(CLEANER,IMPORTANT)	ENGLISH; >=71551 0.0022(lbs); 0.001
040.	6C43149570	[1]	LABEL(CLEANER,IMPORTANT,FR)	FRENCH 0.0022(lbs); 0.001
050.	6C41047452	[1]	LABEL(DPF,IMPORTANT)	; <=71418 0.0132(lbs); 0.006
050.	6C41047453	[1]	LABEL(DPF,IMPORTANT)	; >=71419 0.0132(lbs); 0.006
050.	6C41047454	[1]	LABEL(DPF,IMPORTANT)	; >=71551 0.0132(lbs); 0.006
050.	6C41147452	[1]	LABEL(DPF,IMPORTANT)	OUT OF USE; <=71418 0.0132(lbs); 0.006
050.	6C41147453	[1]	LABEL(DPF,IMPORTANT)	OUT OF USE; >=71419 0.0132(lbs); 0.006
050.	6C43047454	[1]	LABEL	OUT OF USE 0.0132(lbs); 0.006
050.	6C43147454	[1]	LABEL	OUT OF USE 0.0154(lbs); 0.007
060.	1J05012232	[1]	GASKET(EX)	0.0088(lbs); 0.004
070.	99999-99999	[1]	MANUAL,INST	0.0066(lbs); 0.003
