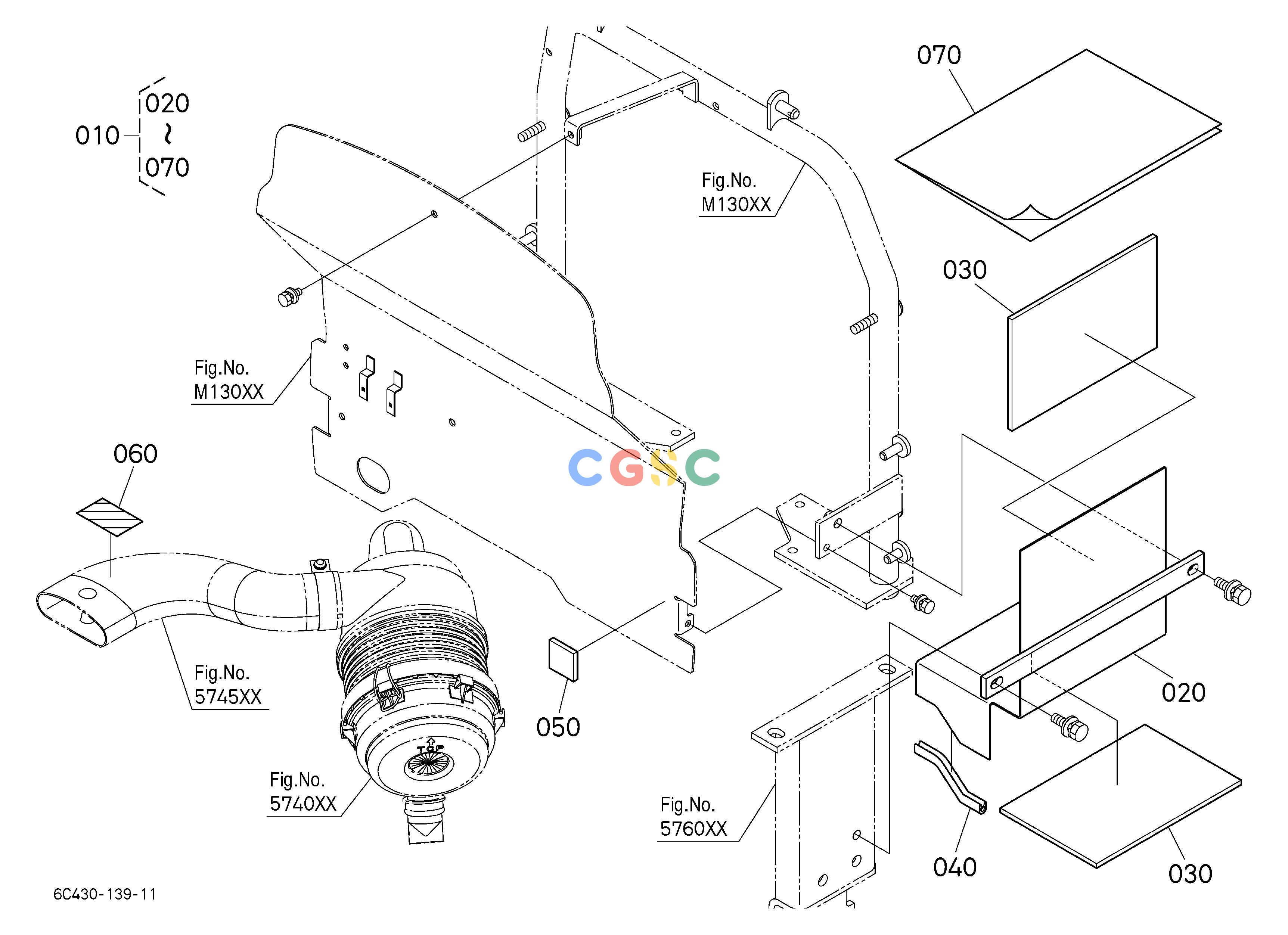

久保田零件查询U71000 INLET HOSE LABEL KIT [OPTION] ## S.No.<=62123 S.No.;<=62123 OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
875 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43099400
|
[1] |
LABEL,KIT(HOSE,INLET)
|
2.4200(lbs); 1.100
|
| 010. |
6C43099402
|
[1] |
LABEL,KIT(HOSE,INLET)
|
2.4200(lbs); 1.100
|
| 020. |
6C43054265
|
[1] |
STAY(PILLAR,LH)
|
1.6654(lbs); 0.757
|
| 030. |
6C43054280
|
[2] |
INSULATION
|
0.0396(lbs); 0.018
|
| 040. |
3N60017282
|
[1] |
TRIM
|
0.0220(lbs); 0.010
|
| 050. |
6C43099410
|
[1] |
INSULATION
|
0.0022(lbs); 0.001
|
| 060. |
6C43049550
|
[1] |
LABEL(HOSE,IMPORTANT)
|
0.0022(lbs); 0.001
|
| 060. |
6C43049552
|
[1] |
LABEL(HOSE,IMPORTANT)
|
0.0022(lbs); 0.001
|
| 060. |
6C43049553
|
[1] |
LABEL(HOSE,IMPORTANT)
|
0.0022(lbs); 0.001
|
| 060. |
6C43149550
|
[1] |
LABEL(HOSE,IMPORTANT,FR)
|
0.0022(lbs); 0.001
|
| 060. |
6C43149552
|
[1] |
LABEL(HOSE,IMPORTANT,FR)
|
0.0022(lbs); 0.001
|
| 070. |
99999-99999
|
[1] |
MANUAL,INST
|
0.0176(lbs); 0.008
|
