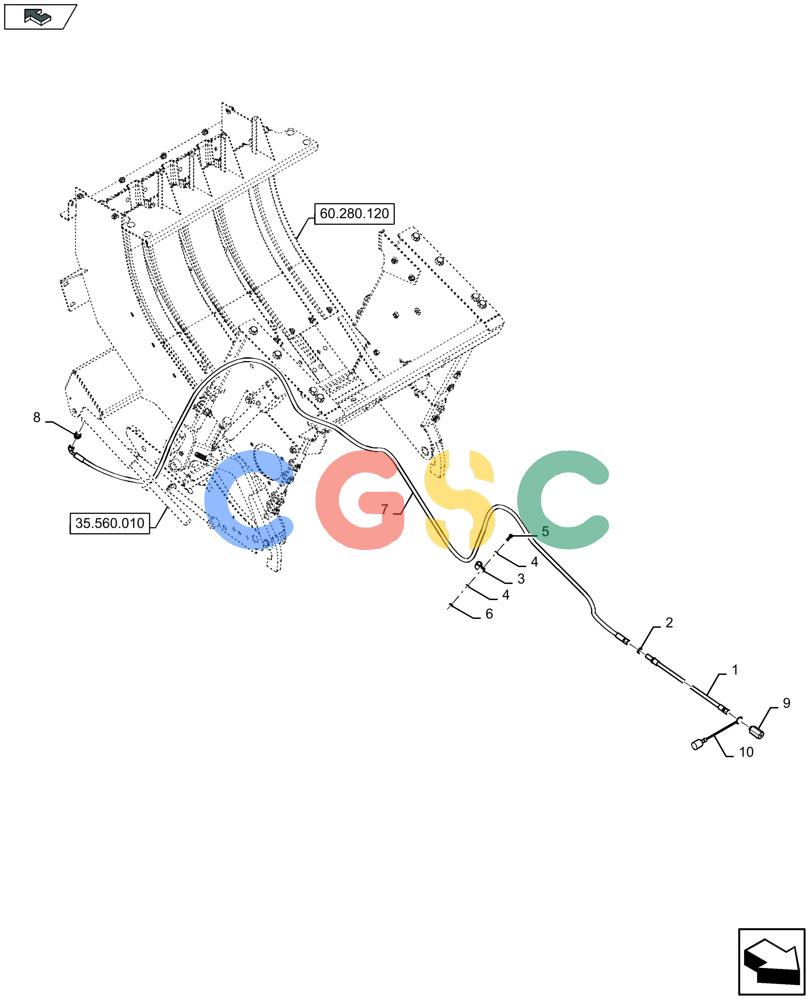

凯斯零件查询(LB424S XL) - BALER (11/16-) (35.560.020) - PICK UP LIFT HYDRAULICS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
825 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87492506
|
[1] |
FLEXIBLE HOSE,6.3mm ID x 2500mm L, SAE 100R1
|
ZED
|
| 2. |
87493574
|
[1] |
NUT
|
ZED
|
| 3. |
431351
|
[4] |
CLAMP,15mm ID, 8.5mm Bolt Hole, P Type
|
ZED
|
| 4. |
86588450
|
[8] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 5. |
120101
|
[4] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 6. |
412152
|
[4] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 7. |
84293780
|
[1] |
HYDRAULIC HOSE
|
ZED
|
| 8. |
396162
|
[1] |
HYD CONNECTOR
|
ZED
|
| 9. |
84819675
|
[1] |
PUSH-PULL COUPLING
|
ZED
|
| 10. |
84819676
|
[1] |
PROTECTION CAP
|
ZED
,, Serial Range: -C043
|
| 10. |
84819677
|
[1] |
CAP COVER
|
ZED
,, Start Serial: D044
|
