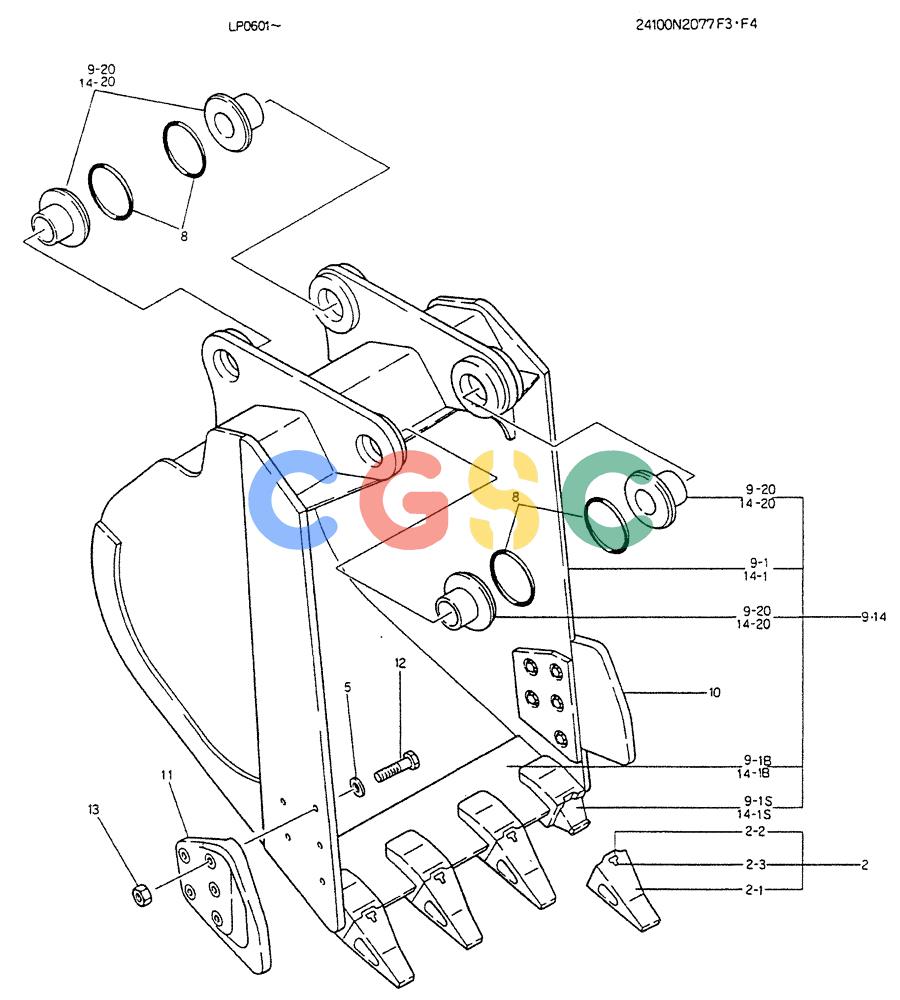

神钢零件查询(K905) - EXCAVATOR BTW LP0601 - LP1600 (1/82-12/03) (07-006) - BUCKET ASSY, 0.35M3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
621 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2077F3 | [1] | BUCKET ASSY, Serial Range: YP0115-YP0139 | |
| . . | 24100N2077F4 | [1] | BUCKET ASSY, Start Serial: YP0140 | |
| 2. | 2412U16F1 | [4] | TOOTH | KOB |
| 2-1. | 2412U16S1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOBLOCKING Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOBLOCK, RUBBER Superseded by part number: B12P0015E3MK |
| 5. | R16T0152D3 | [10] | WASHER | KOBFlat -- ID 21 x OD 37 x Th 4.5mm |
| 8. | 2445Z869 | [4] | O-RING,9mm Thk x 115mm ID | KOBID 115 ± 0.40 x OD 133mm |
| 9. | 2412X279F1 | [1] | BUCKET, Serial Range: YP0115-YP0139 | |
| 9-1. | NSS | [1] | NOT SOLD SEPARAT | CONBUCKET |
| 9-1B. | 2412P311D3 | [1] | EDGE, CUTTING | |
| 9-1S. | 2412U47 | [4] | ADAPTER | KOB |
| 9-20. | 2405T869 | [4] | BUSHING | KOB |
| 10. | 2412N278D1 | [1] | BLADE | KOBCUTTER. SIDE Superseded by part number: 2412N278D11 |
| 11. | 2412N278D2 | [1] | BLADE | KOBCUTTER, SIDE Superseded by part number: 2412N278D21 |
| 12. | ZS13F20055 | [10] | SCREW | KOBM20x1.50x55mm |
| 13. | ZN13F20016 | [10] | NUT | KOBM20x1.50mm |
| 14. | 2412X367F1 | [1] | BUCKET, Start Serial: YP0140 | |
| 14-1. | 2412X367 | [1] | BUCKET | |
| 14-1B. | 2412P509D3 | [1] | EDGE, CUTTING | |
| 14-1S. | 2412U47 | [4] | ADAPTER | KOB |
| 14-20. | 2405T869 | [4] | BUSHING | KOB |
