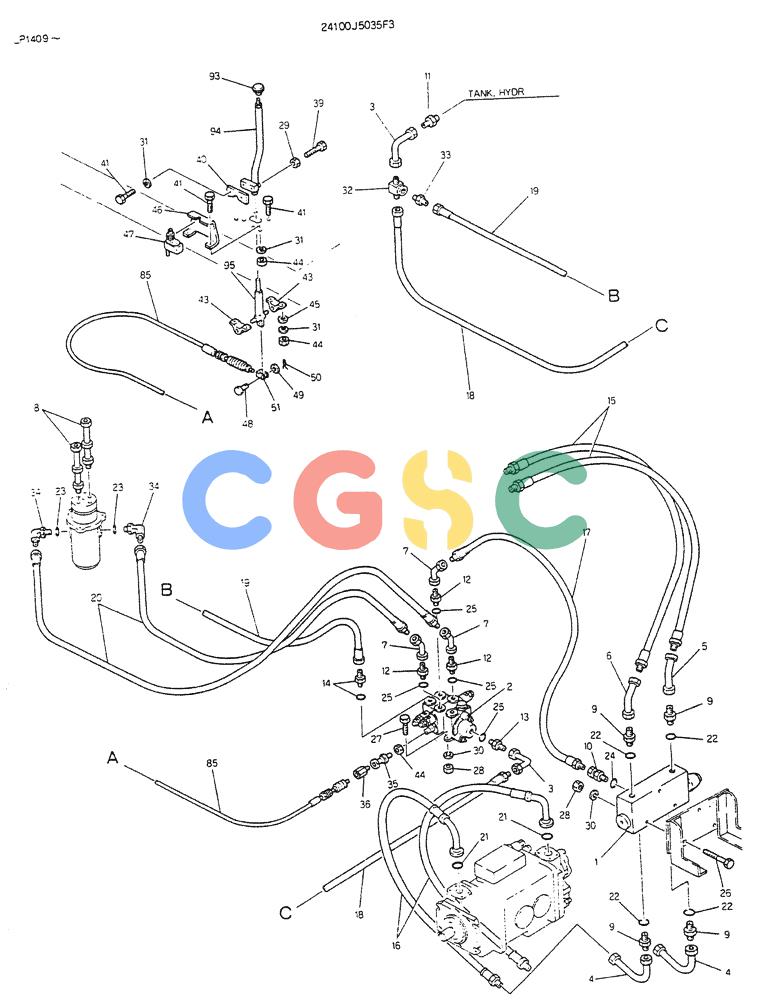

| . . | 24100J5035F3 | [1] | CONTROL ASSY | |
| 1. | 2436U817F1 | [1] | VALVE | KOB |
| 2. | 2436U836F1 | [1] | CONTROL VALVE | KOBVALVE, CONTROL |
| 3. | 2418P9705D2 | [2] | TUBE | |
| 4. | 2418T10351 | [2] | TUBE | KOB |
| 5. | 2418T10343 | [1] | TUBE | |
| 6. | 2418T10344 | [1] | TUBE | |
| 7. | 2418T10727 | [3] | TUBE | |
| 8. | 2418P6360D6 | [2] | TUBE | |
| 9. | ZF23F28016 | [4] | HYD CONNECTOR | KOB |
| 10. | ZF23H15006 | [1] | HYD CONNECTOR | KOB |
| 11. | 2444Z2121 | [1] | CONNECTOR | |
| 12. | 2444J2236 | [3] | CONNECTOR | |
| 13. | ZF23F22012 | [1] | HYD CONNECTOR | KOB |
| 14. | ZH22X12016 | [1] | HYD CONNECTOR | KOB |
| 15. | ZX28N12110 | [2] | HOSE | KOB |
| 16. | 2420R483D2 | [2] | HOSE | |
| 17. | ZX2PN08140 | [1] | HOSE | |
| 18. | 2444Z2239D1 | [1] | HOSE | |
| 19. | ZX22M10130 | [1] | HOSE | KOB |
| 20. | 2444R903D1 | [2] | HOSE | |
| 21. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 22. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 21. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 24. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 25. | ZD12P02240 | [4] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 26. | ZS13C12110 | [3] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 27. | ZS13C12045 | [3] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 28. | ZN12C12010 | [6] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 29. | ZN16C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 30. | ZW22X12000 | [6] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 31. | ZW22X08000 | [8] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 32. | 2444T2411 | [1] | TEE | |
| 33. | ZH22Z12000 | [1] | HYD CONNECTOR | KOB3/4"PTx3/4"PFx55mm Long |
| 34. | ZF33F15008 | [2] | ELBOW | KOB |
| 35. | 2420Z681 | [1] | ROD | KOB |
| 36. | 2420T4065 | [1] | STUD | KOB |
| 39. | ZS16C10025 | [1] | SCREW | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 40. | 2406T1677 | [1] | PLATE | |
| 41. | ZS16C08025 | [8] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025 |
| 43. | 2425R145D1 | [2] | BLOCK,BEARING | |
| 44. | ZN16C08007 | [7] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 45. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 46. | 2422T440 | [1] | PLATE | |
| 47. | 2479Z870 | [1] | SWITCH | KOBMICRO |
| 48. | 2419T3784D1 | [1] | PIN | KOB |
| 49. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 50. | 2419R9D4 | [1] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 51. | 2406T1672 | [1] | YOKE | KOB Superseded by part number: 2406T2278 |
| 57. | ZH32Z04000 | [1] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 58. | ZH51K08000 | [2] | TEE | KOB |
| 59. | 2444Z2086D1 | [1] | TEE | KOB |
| 60. | ZG22E06000 | [1] | HYD CONNECTOR | KOB |
| 61. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 62. | ZH21K08004 | [3] | HYD CONNECTOR | KOB |
| 63. | 2420R537D060 | [1] | HOSE ASSY.,9.60mm ID x 600mm L | KOB |
| 64. | 2420R349D170 | [2] | FLEXIBLE HOSE | KOB1700mm Long (66-59/64 in) Superseded by part number: HX21E04170DX |
| 65. | ZX15K08008 | [1] | TUBE, NYLON | TUBE, NYLON |
| 66. | ZX15K08013 | [1] | TUBE, NYLON | TUBE, NYLON |
| 67. | ZX15K08035 | [1] | TUBE | KOB |
| 68. | ZX15K08040 | [1] | PLASTIC-RUBBER TUBE | KOB |
| 69. | ZX15K08070 | [2] | FLEXIBLE HOSE | KOBN2 |
| 70. | ZX15K08050 | [1] | PLASTIC-RUBBER TUBE | KOB |
| 71. | 24100U322F1 | [1] | VALVE | KOBSOLENOID |
| 72. | ZS23C06025 | [2] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 73. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 74. | ZH32Z04006 | [1] | ELBOW | KOB |
| 75. | 2479Z912 | [1] | HARNESS | |
| 77. | ZX15K08100 | [1] | TUBE | KOB |
| 80. | 2444Z2240 | [1] | CONNECTOR | |
| 81. | ZW26X06000 | [3] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 82. | ZN16C06005 | [3] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 83. | ZS31C06010 | [1] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 84. | 2479U229 | [1] | RELAY | KOB |
| 85. | 2406R223D4 | [1] | FLEXIBLE CONTROL | KOB |
| 86. | 2422N781 | [1] | FRAME | |
| 86-1. | 2422T419 | [1] | PLATE | |
| 86-2. | 2416T10831 | [1] | BRACKET | |
| 86-3. | 2416P7236D1 | [1] | BRACKET | KOB |
| 86-4. | 2416T10985 | [1] | BRACKET | |
| 86-5. | 2416T11043 | [1] | BRACKET | |
| 92. | 2422P650 | [1] | PLATE. FLOOR | |
| 93. | 6Z1 | [1] | LEVER | KOB |
| 94. | 2406P2521 | [1] | LEVER | |
| 95. | 2406P2522 | [1] | LINK | |
| 96. | 2427Z533 | [1] | MAT, FLOOR | |
| 97. | ZG52U06000 | [1] | TEE | KOB |
